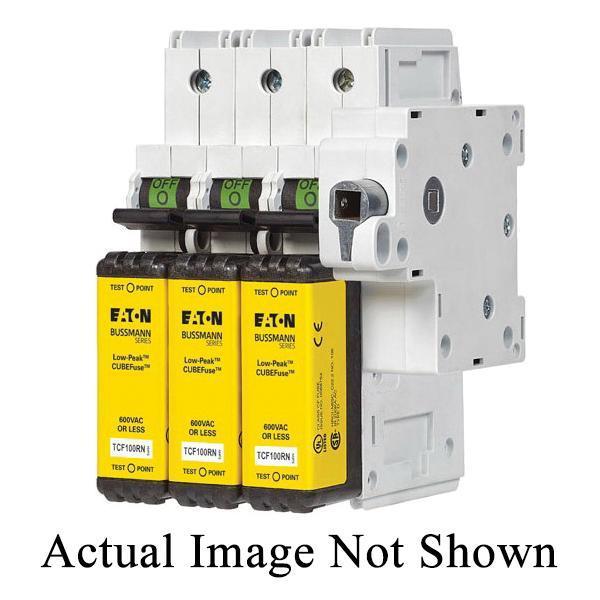

CCP2-3-100CF Compact Fused Compact Circuit Protector Disconnect Switch, CUBEFuse®, 600 VAC, 125 VDC, 100 A, 3 Poles
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The revolutionary Bussmann series Compact Circuit Protector (CCP) for Class CF Low-Peak™ CUBEFuse™ delivers the smallest footprint compared to any Class J disconnect solution - requiring up to 51% less space. The CCP is a UL 98 Listed fused, branch circuit disconnect that packs up to a 200 kA short circuit current rating (SCCR) at 600 V to help increase equipment SCCR. These high ratings and compact design make the CCP ideal for industrial control panels, machinery and HVAC applications.
Bussmann CUBEFuse® Compact Circuit Protector Disconnect Switch, Compact Fused, 600 VAC, 125 VDC, 100 A, 3 Pole, DIN Rail Mount, -4 to 167 deg F Operating, 3.9 in W, 9.5 in Height
| Height | : | 9.5 in |
| Mounting Type | : | DIN Rail |
| Operating Temperature | : | -4 to 167 deg F |
| Type | : | Compact Fused |
| Width | : | 3.9 in |
| Voltage Rating | : | 600 VAC, 125 VDC |
| Amperage Rating | : | 100 A |
| Number of Poles | : | 3 |
