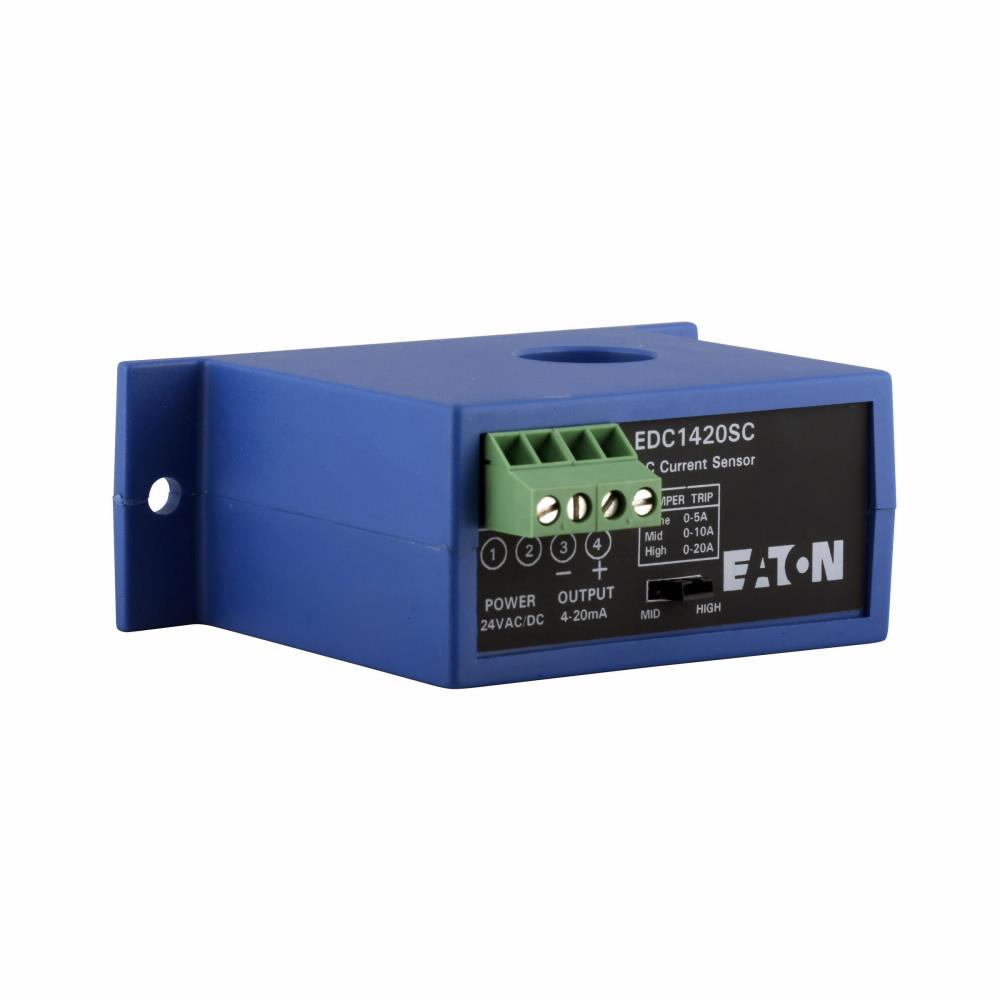

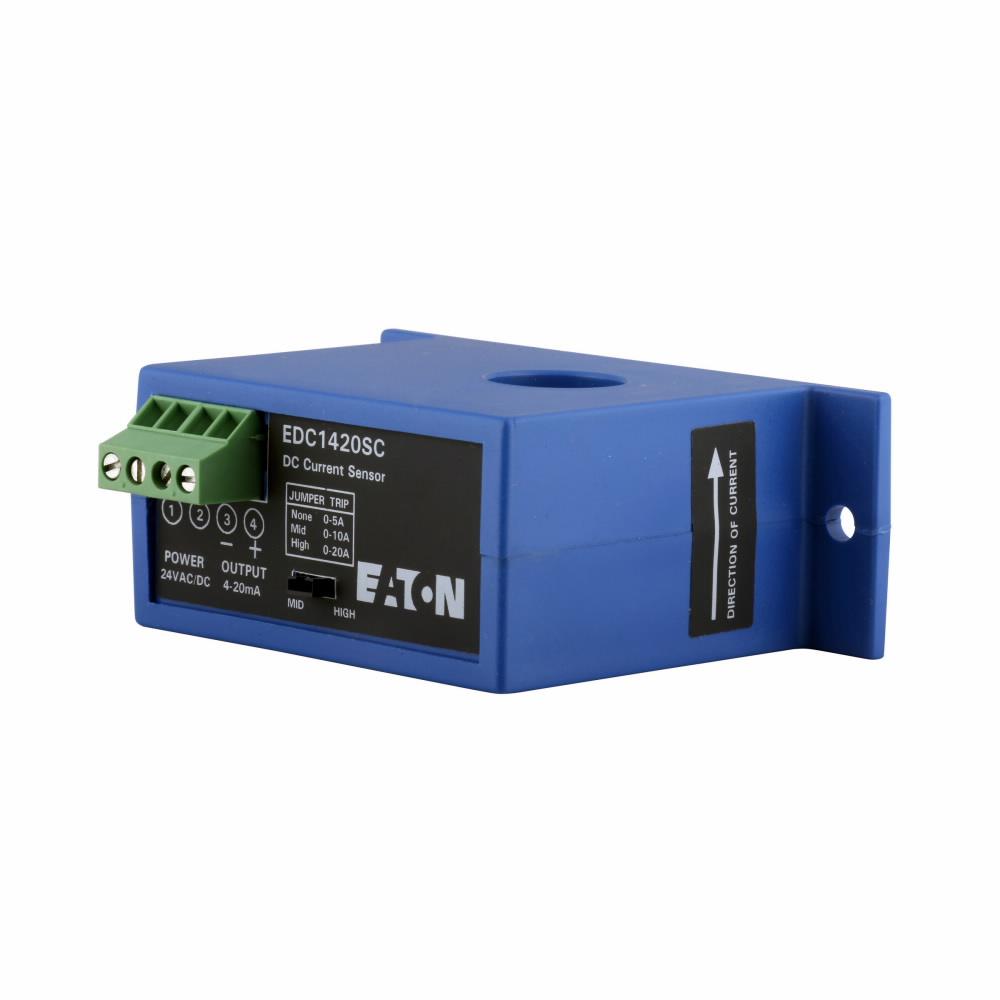

EDC1420SC Top Terminal Current Sensor, CurrentWatch™, 20 ms Response, Uni-Polar Output, 24 VAC/VDC
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The CurrentWatch™ EDC series from eaton electrical sector combines a hall effect sensor and signal conditioner into a single package for use in DC current applications up to 300 A. The EDC series has jumper selected current input ranges and industry standard outputs - 4 to 20 mA, 0 to 5 VDC or 0 to 10 VDC. Available in split core models for quick and easy installation.
EATON CurrentWatch™ Current Sensor, Top Terminal, Series: EDC, 20 ms Response, Uni-Polar Output, 24 VAC/VDC, 20 A, Screw Connection, 2.18 x 0.93 x 2.5 in Size, Solid Core Housing Enclosure, -4 to 122 deg F Operating, Panel Mounting, Environmental Conditions: 0 to 95% Relative Humidity
| Amperage Rating | : | 20 A |
| Connection Type | : | Screw |
| Enclosure Type | : | Solid Core Housing |
| Environmental Conditions | : | 0 to 95% Relative Humidity |
| Mounting Type | : | Panel |
| Operating Temperature | : | -4 to 122 deg F |
| Series | : | EDC |
| Size | : | 2.18 x 0.93 x 2.5 in |
| Type | : | Top Terminal |
| Response Time | : | 20 ms |
| Output Type | : | Uni-Polar |
| Voltage Rating | : | 24 VAC/VDC |
