Non Stock

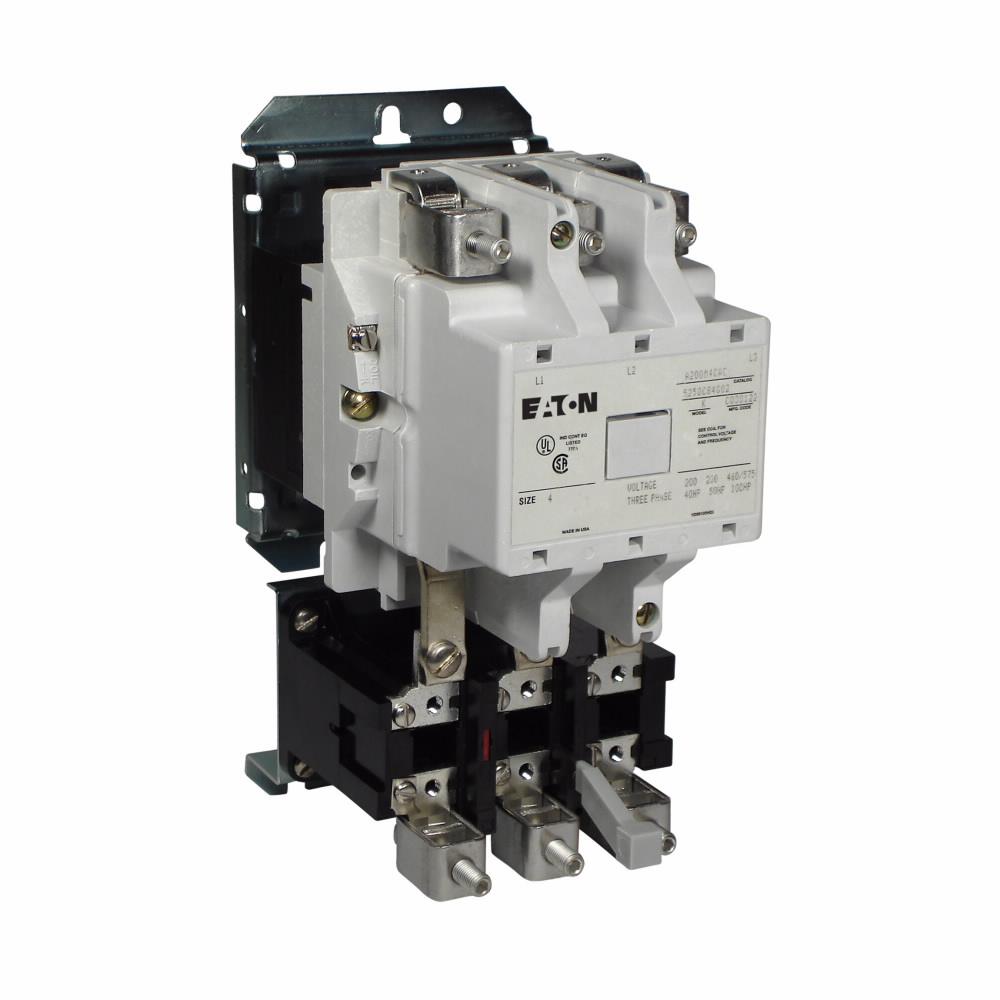

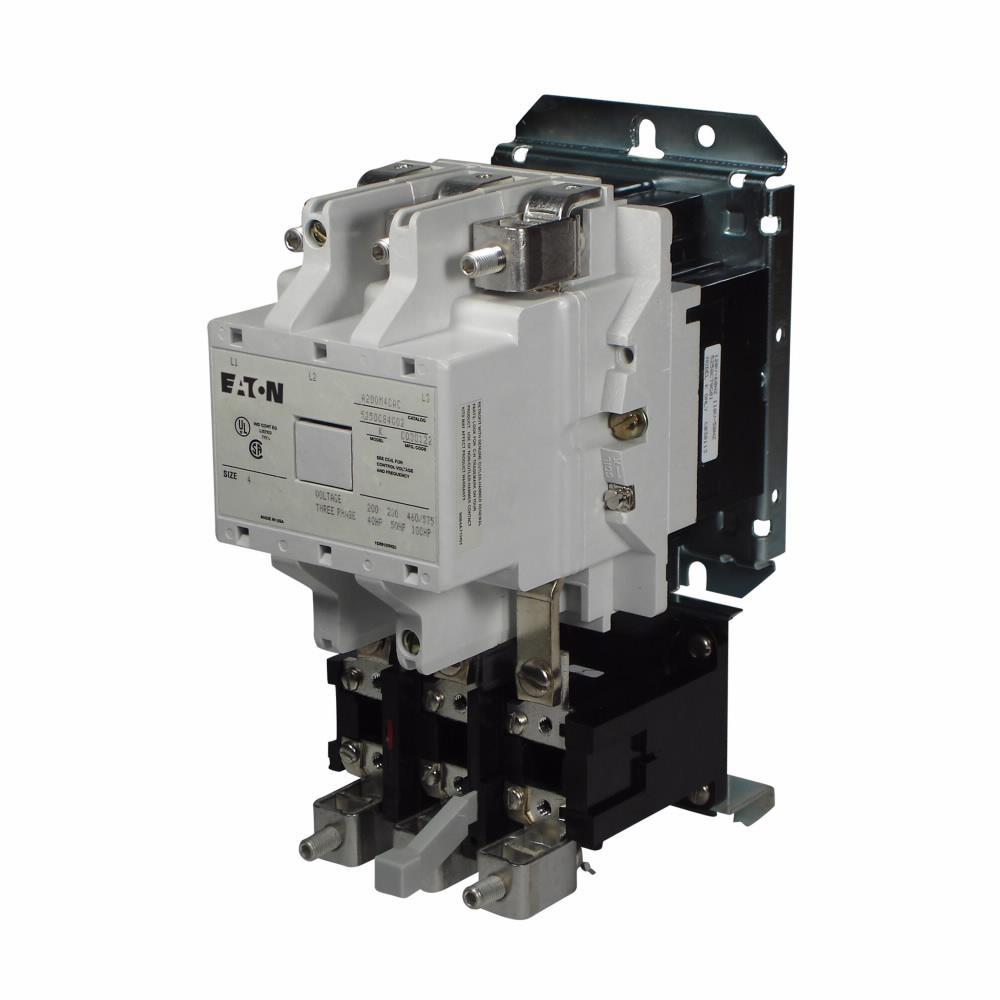

A200M4CAC Magnetic NEMA Starter, 110/120 VAC V Coil, Non-Reversing Action, 3 Poles, NEMA 4 Enclosure
Sold as: Pack of EACH
All Class A200 non-reversing starters utilize Type B three-pole overload relays with optional Type A for auto reset applications. Sizes 5 and 6 include the needed current transformers. Moving and stationary contacts are front accessible for simple and easy inspection and maintenance. All Class A200 starters are UL listed and recognized and are CSA certified.
EATON NEMA Starter, Magnetic, Series: A200, 600 VAC, 135 A, 50/60 Hz Frequency, 100 hp Motor, 110/120 VAC Coil, 3 Pole, Screw Connection, Non-Reversing Action, Bi-Metal Overload Relay, 1NO-1NC Auxiliary, NEMA 4 Enclosure, -4 to 140 deg F Operating, 6.75 in L x 6.63 in W x 4.63 in H Dimensions
| Amperage Rating | : | 135 A |
| Auxiliary Contact Rating | : | 1NO-1NC |
| Connection Type | : | Screw |
| Dimensions | : | 6.75 in L x 6.63 in W x 4.63 in H |
| Frequency Rating | : | 50/60 Hz |
| Motor Power | : | 100 hp |
| Operating Temperature | : | -4 to 140 deg F |
| Overload Relay | : | Bi-Metal |
| Series | : | A200 |
| Voltage Rating | : | 600 VAC |
| Type | : | Magnetic |
| Coil Voltage | : | 110/120 VAC |
| Action | : | Non-Reversing |
| Number of Poles | : | 3 |
| Enclosure Type | : | NEMA 4 |
