Non Stock

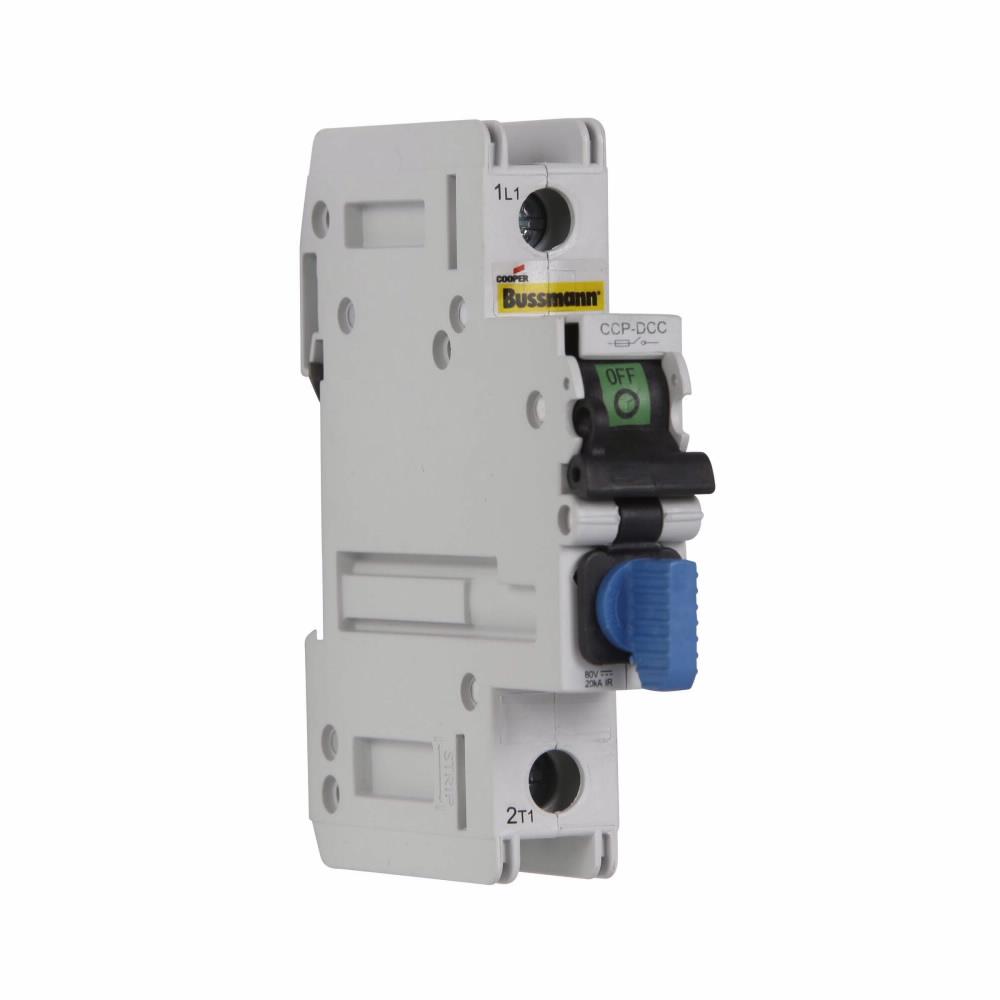

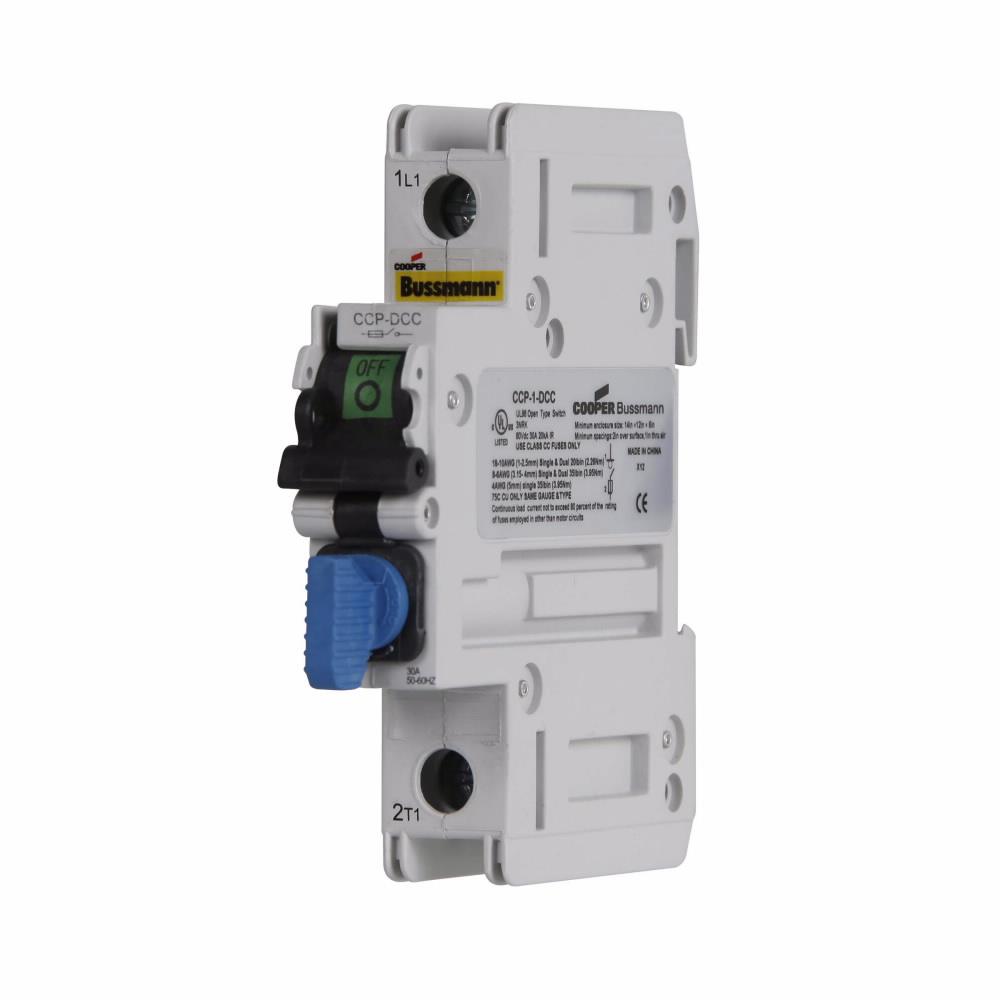

CCP-1-DCC Compact Fused Circuit Protector, 80 VDC, 30 A, 1 Pole, Class CC Fuse
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The revolutionary Bussmann series compact circuit protector (CCP) fused disconnect switch with CUBEFuse™ is 2/3 the footprint of a traditional fusible switch and provides a high 200 kA SCCR that can help increase assembly SCCR.
Bussmann Circuit Protector, Compact Fused, Series: CCP, 80 VDC, 30 A, 1 Pole, Class CC Fuse, DIN Rail Mount, Padlockable Handle Operator, -20 to 75 deg C Operating, 2.1 in Width, 3.7 in Height, 3.1 in D
| Depth | : | 3.1 in |
| Height | : | 3.7 in |
| Mounting Type | : | DIN Rail |
| Operating Temperature | : | -20 to 75 deg C |
| Operator | : | Padlockable Handle |
| Series | : | CCP |
| Type | : | Compact Fused |
| Width | : | 2.1 in |
| Voltage Rating | : | 80 VDC |
| Amperage Rating | : | 30 A |
| Number of Poles | : | 1 |
| Fuse Type | : | Class CC |
