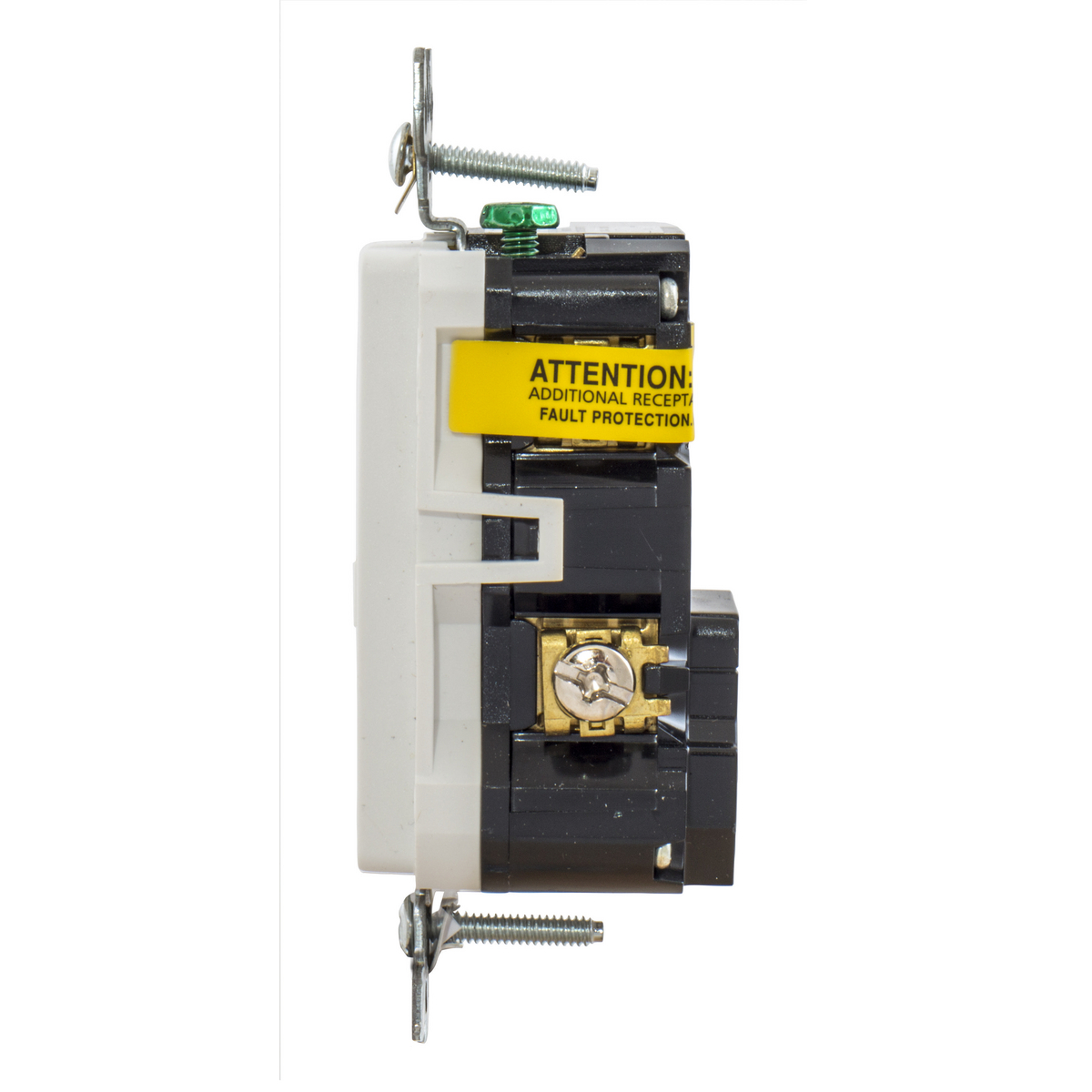

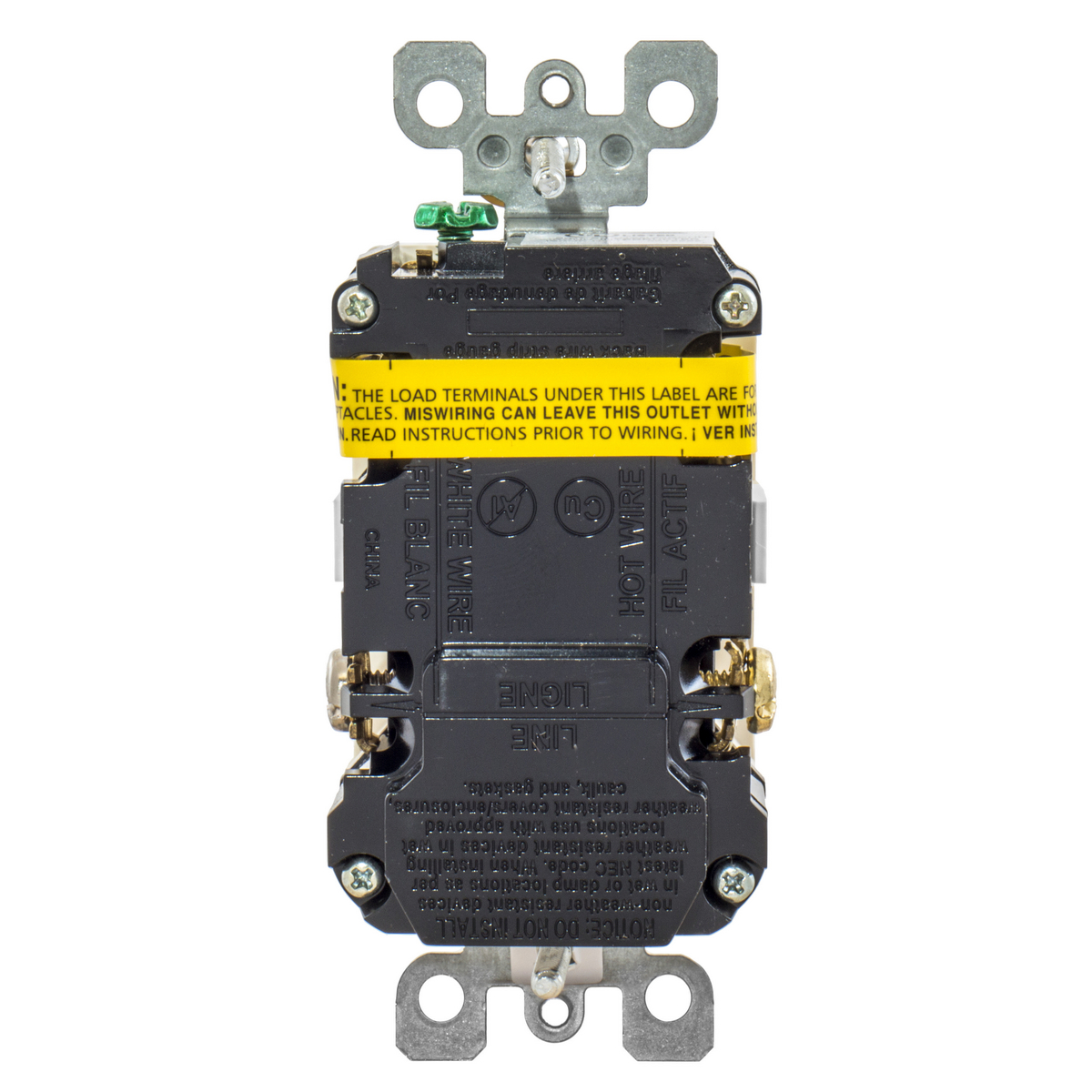

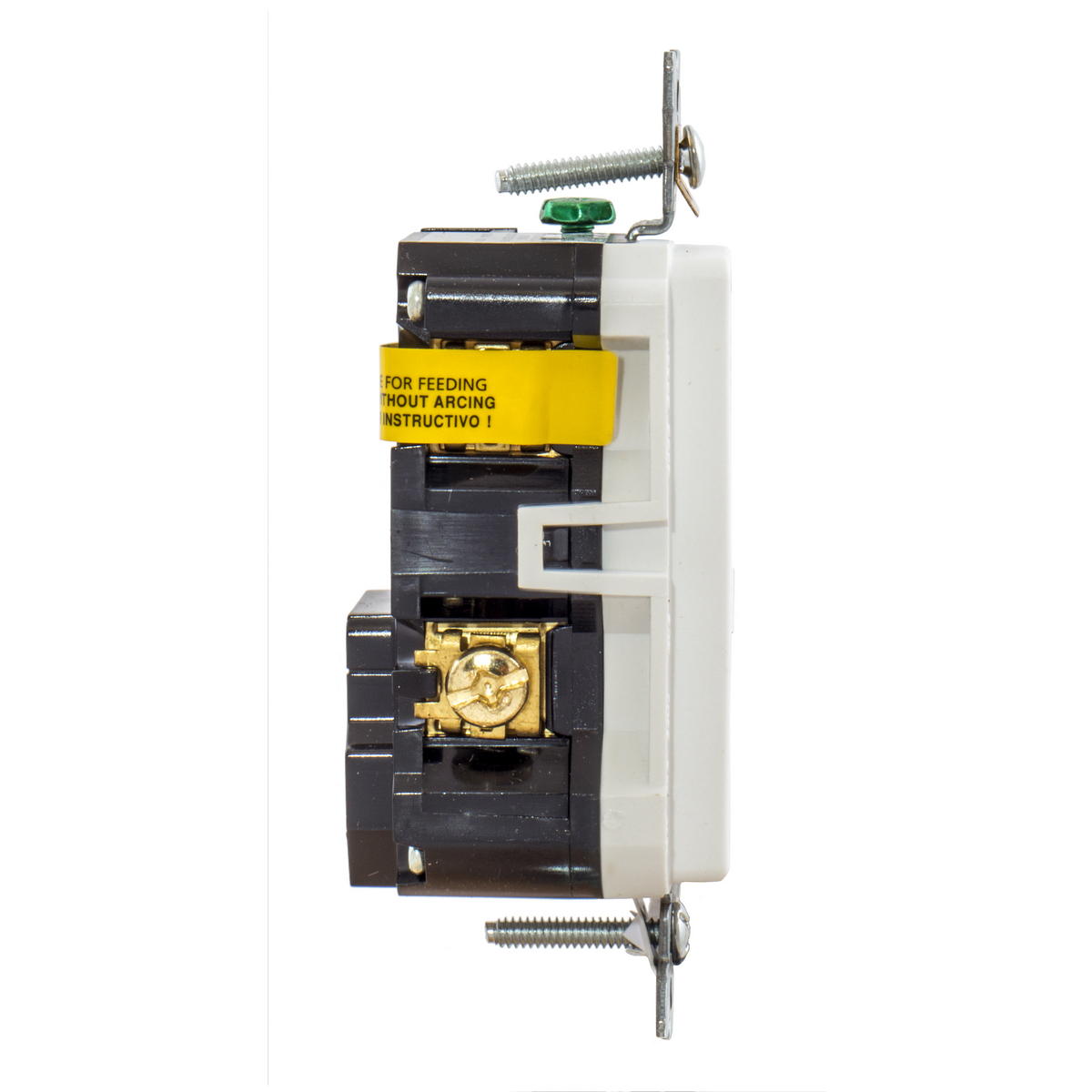

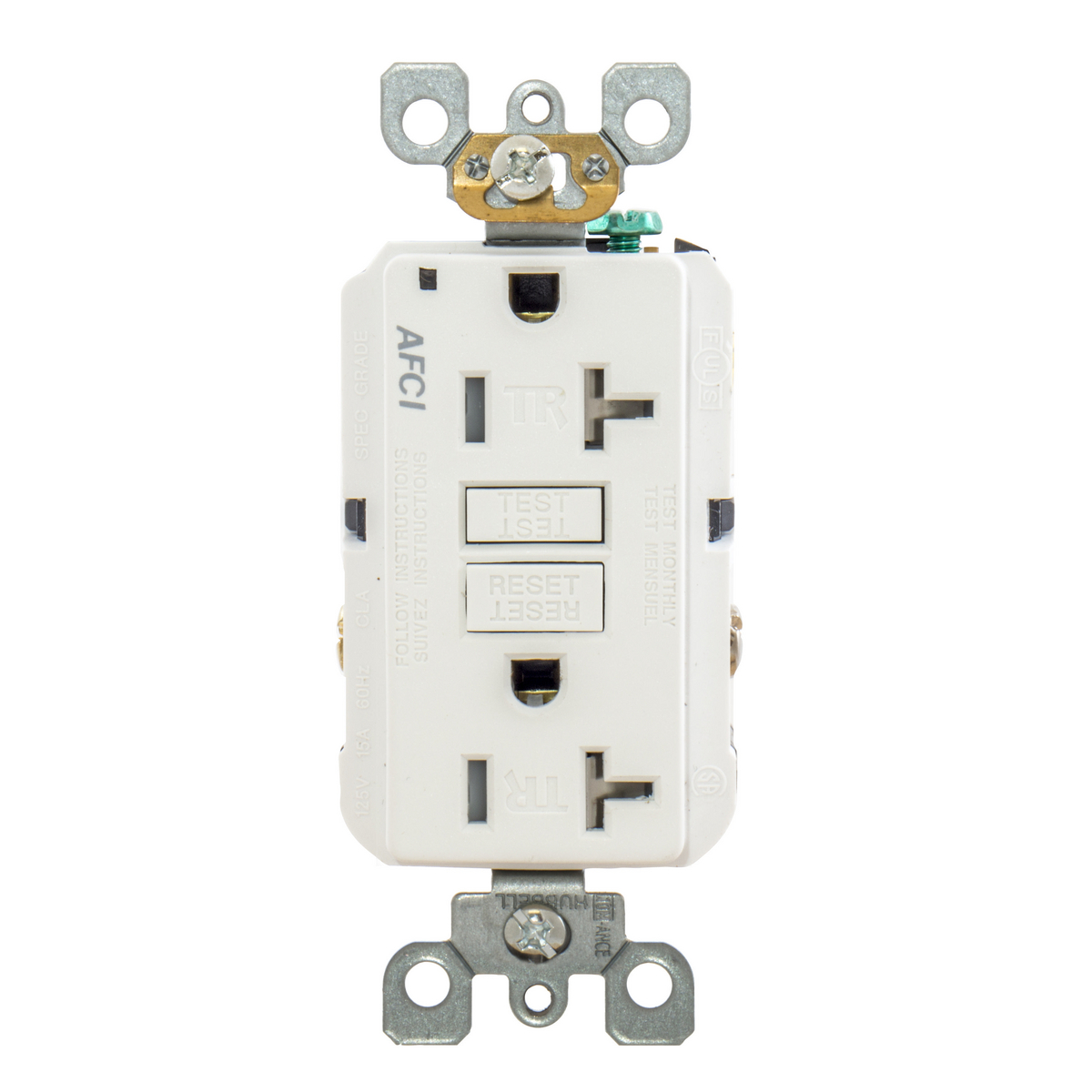

AFR20TRW Straight Blade Tamper Resistant AFCI Duplex Receptacle, 125 VAC, 20 A with Feed Through, 2 Pole, 3 Wire, Back and Side Wired, Screws and Self Grounding Clip, 5-20R, White
Arc fault circuit interrupter (AFCI) protection shall be provided in dwelling units for all 120 VAC, single phase, 15 A and 20 A branch circuits supplying outlets or devices in kitchens, family rooms, dining rooms, living rooms, parlors, libraries, dens, bedrooms, sunrooms, recreation rooms, closets, hallways, laundry areas or similar rooms or areas. AFCI protection shall also be installed in dormitory unit bedrooms, living rooms, hallways, closets and similar rooms.
Wiring Device-Kellems, AFR20TRW, Decorator Duplex Standard Tamper Resistant Screw Mount Arc Fault Receptacle, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Residential Grade, -30 to 150 deg F, Screw Terminal, Thermoplastic/Composite, White, 1.31 in W x 1.29 in D x 4.21 in H Dimensions
| Dimensions | : | 1.31 in W x 1.29 in D x 4.21 in H |
| Grade | : | Commercial/Residential |
| Horsepower | : | 1 hp |
| Material | : | Thermoplastic/Composite |
| NEMA Rating | : | 5-15R |
| Temperature Rating | : | -30 to 150 deg F |
| Terminal Type | : | Screw |
| Type | : | 1-Phase Decorator Duplex Standard Tamper Resistant Screw Mount |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 20 A |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | White |
