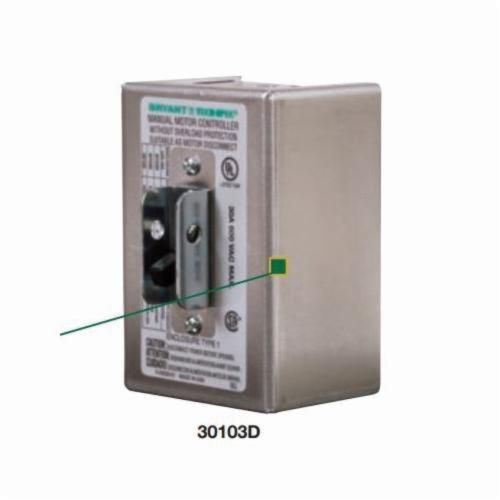

30103D Manual Motor Controller Starter Switch, Tech-Spec®, 600 VAC, 30 A, 20 HP, 3 Pole, 3 Phase, Industrial Grade, Standard Toggle, Side Wired, Suitable as Motor Disconnect, NEMA 1 Metal Enclosure
| Branch Name | Available |
|---|
Bryant Electric, 30103D, Switch, Enclosed Industrial Grade Manual Non-Fused Standard, 600 VAC, 30 A, 20 hp, 3 ph, 3 Pole, 3 Wires, 10 kA Short Circuit, Toggle Actuator, NEMA 1 Enclosure, Threaded Mounting, Pressure Screw/Side Wire Terminal, -40 to 60 deg C, 4.72 in H x 3.2 in W x 3.15 in D Dimensions, Aluminum, Black
| Actuator Type | : | Toggle |
| Color | : | Black |
| Dimensions | : | 4.72 in H x 3.2 in W x 3.15 in D |
| Enclosure Type | : | NEMA 1 |
| Material | : | Aluminum |
| Mounting Type | : | Threaded |
| Number of Wires | : | 3 |
| Phase | : | 3 |
| Short Circuit Current Rating | : | 10 kA |
| Temperature Rating | : | -40 to 60 deg C |
| Terminal Type | : | Pressure Screw/Side Wire |
| Type | : | Enclosed Industrial Grade Manual Non-Fused Standard |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 20 hp |
| Number of Poles | : | 3 |
