Non Stock

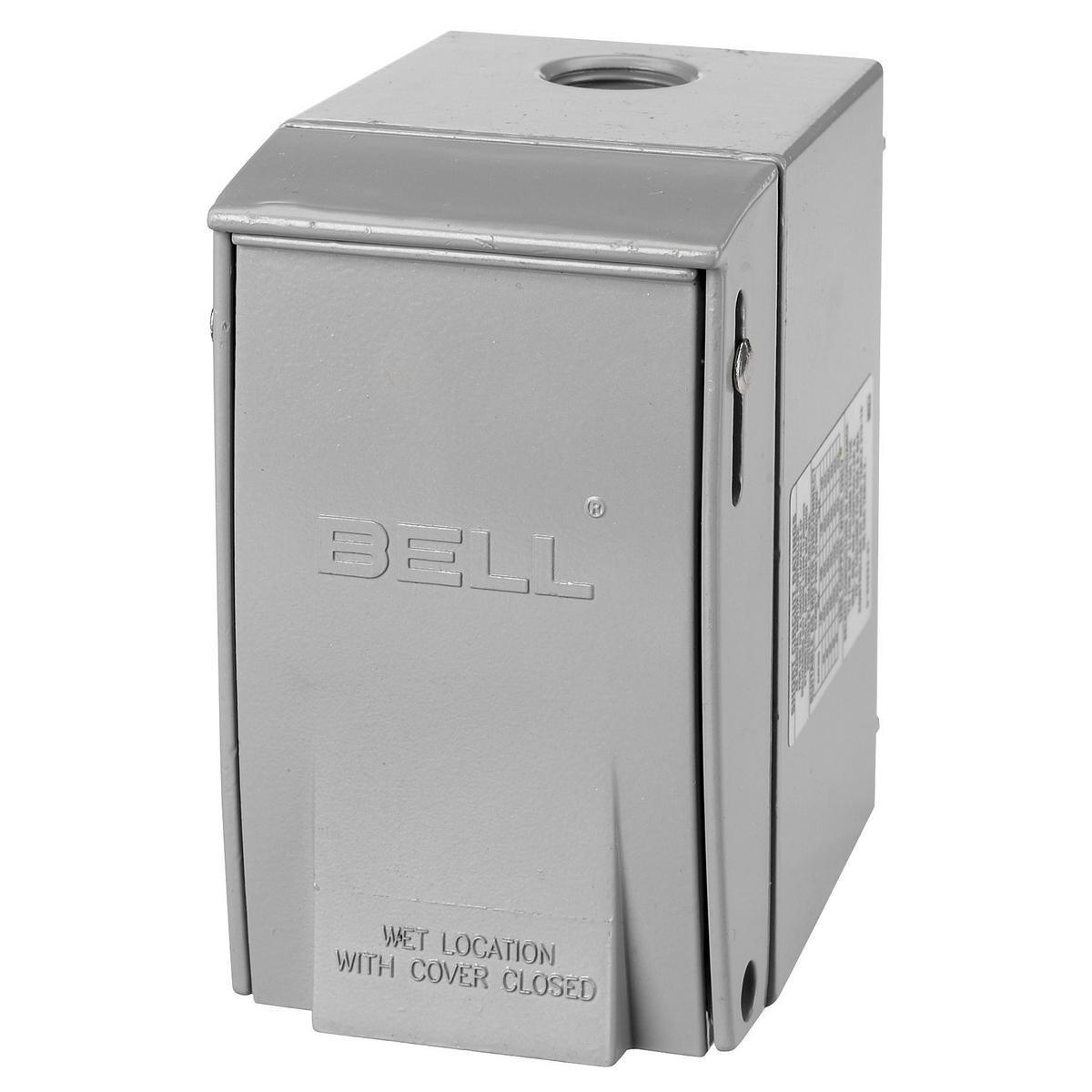

HBL13R12 Manual Motor Controller Starter Switch, Circuit-Lock®, 600 VAC, 30 A, 15 HP, 2 Pole, Single Phase, Industrial Grade, Standard Toggle, Back and Side Wired, Suitable as Motor Disconnect, NEMA 3R Aluminum Enclosure with Flip Lid
| Branch Name | Available |
|---|
Wiring Device-Kellems, HBL13R12, Switched Disconnects and Enclosures, Series: HBL, 600 VAC, 30 A, 15 hp, 1 ph, 2 Pole, 60 A Short Circuit, NEMA 3/3R Enclosure, Pressure Screw Terminal, -40 to 75 deg C, 3.94 in H x 2.92 in W x 3.24 in L Dimensions, Gray
| Color | : | Gray |
| Dimensions | : | 3.94 in H x 2.92 in W x 3.24 in L |
| Enclosure Type | : | NEMA 3/3R |
| Mounting Type | : | Screw |
| Phase | : | 1 |
| Series | : | HBL |
| Short Circuit Current Rating | : | 60 A |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Disconnect Switch |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 15 hp |
| Number of Poles | : | 2 |
