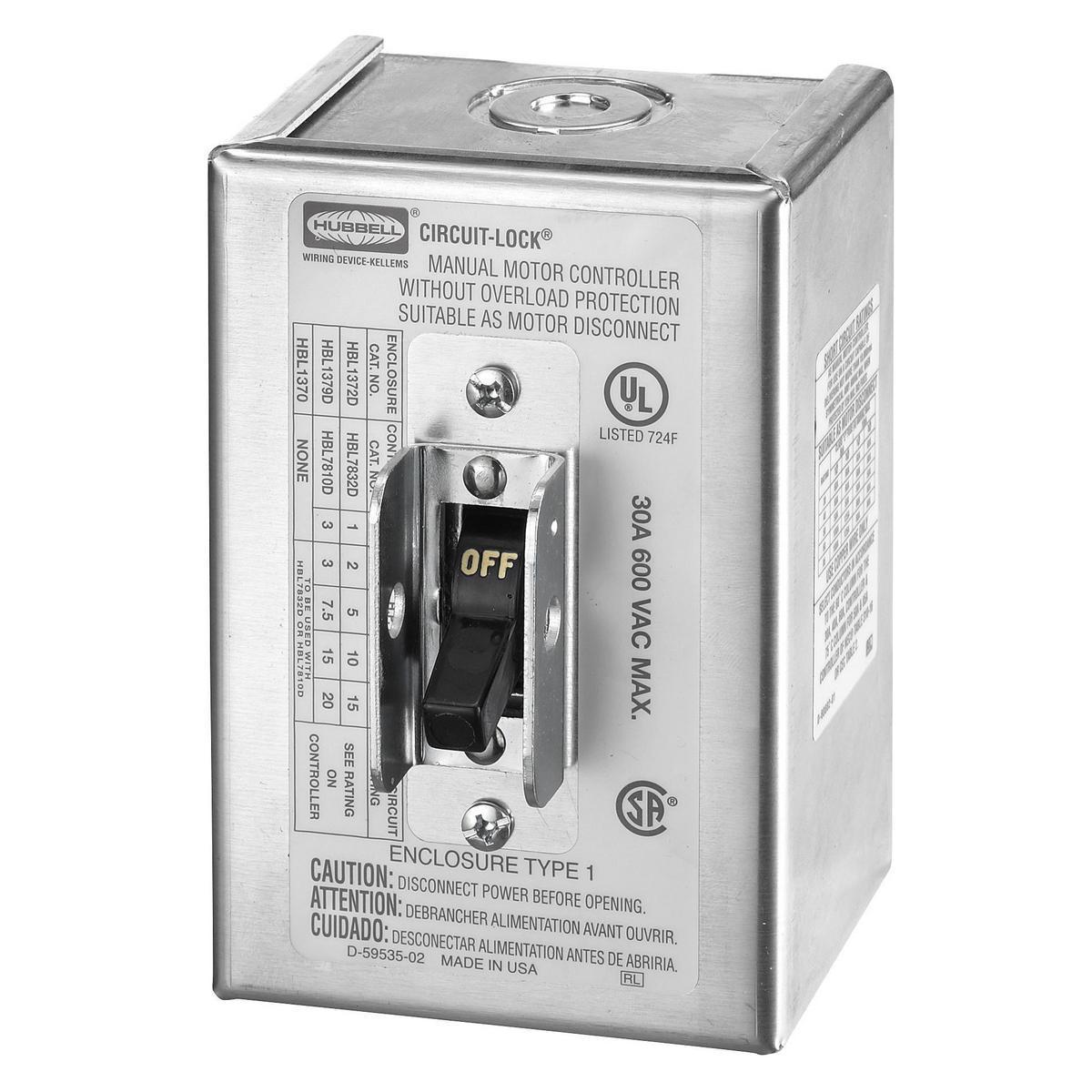

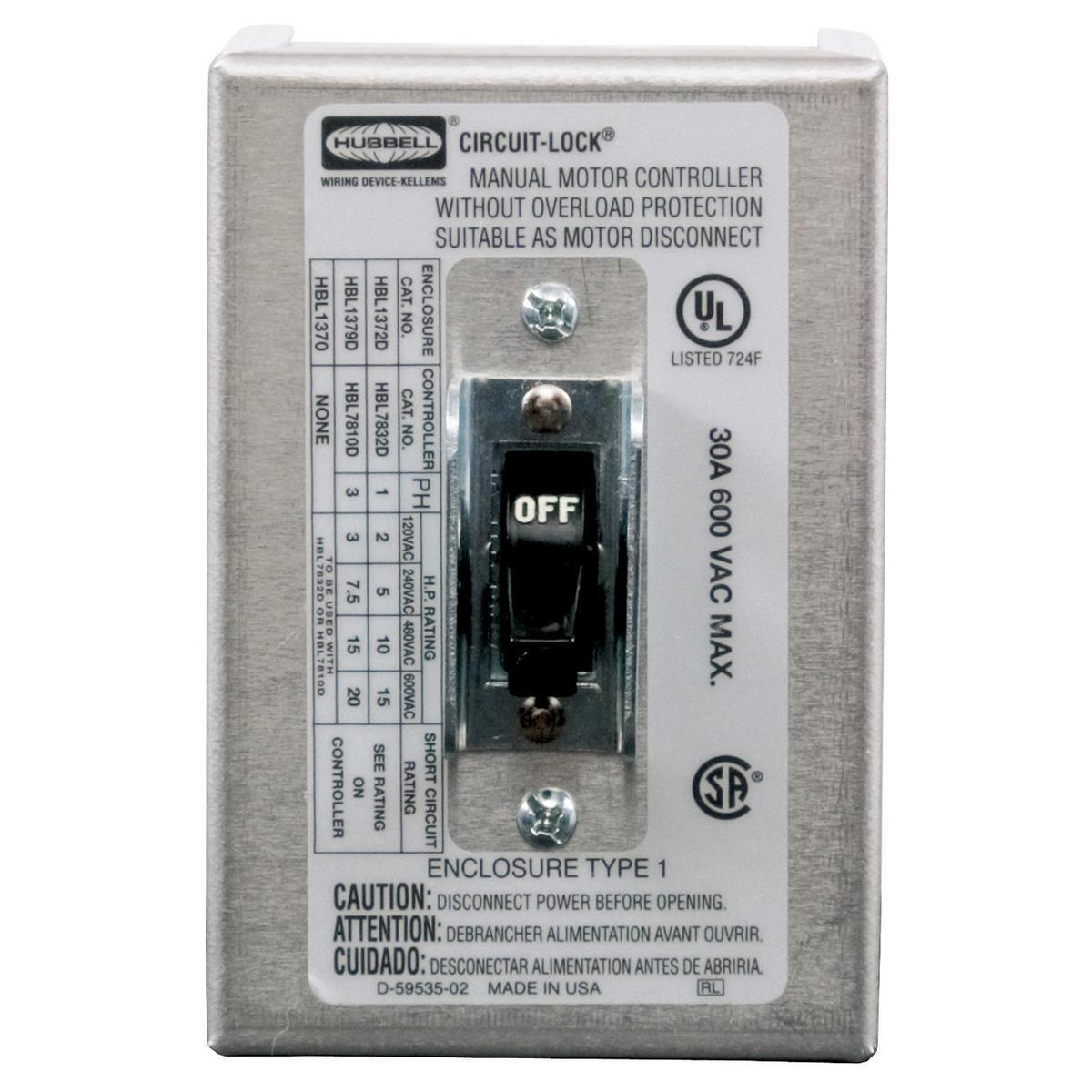

HBL1379 Manual Motor Controller Starter Switch, Circuit-Lock®, 600 VAC, 30 A, 20 HP, 3 Pole, 3 Phase, Industrial Grade, Standard Toggle, Back and Side Wired, Suitable as Motor Disconnect, NEMA 1 Aluminum Enclosure
| Branch Name | Available |
|---|
Wiring Device-Kellems, HBL1379, Switched Disconnects and Enclosures, Series: HBL, 600 VAC, 30 A, 3, 7.5, 15, 20 HP, 3 ph, 3 Pole, 30 A Short Circuit, NEMA 1 Enclosure, Pressure Screw Terminal, -40 to 75 deg C, 3.15 in H x 3.2 in W x 4.52 in L Dimensions
| Dimensions | : | 3.15 in H x 3.2 in W x 4.52 in L |
| Enclosure Type | : | NEMA 1 |
| Mounting Type | : | Screw |
| Phase | : | 3 |
| Series | : | HBL |
| Short Circuit Current Rating | : | 30 A |
| Temperature Rating | : | -40 to 75 deg C |
| Terminal Type | : | Pressure Screw |
| Type | : | Disconnect Switch |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 3, 7.5, 15, 20 HP |
| Number of Poles | : | 3 |
