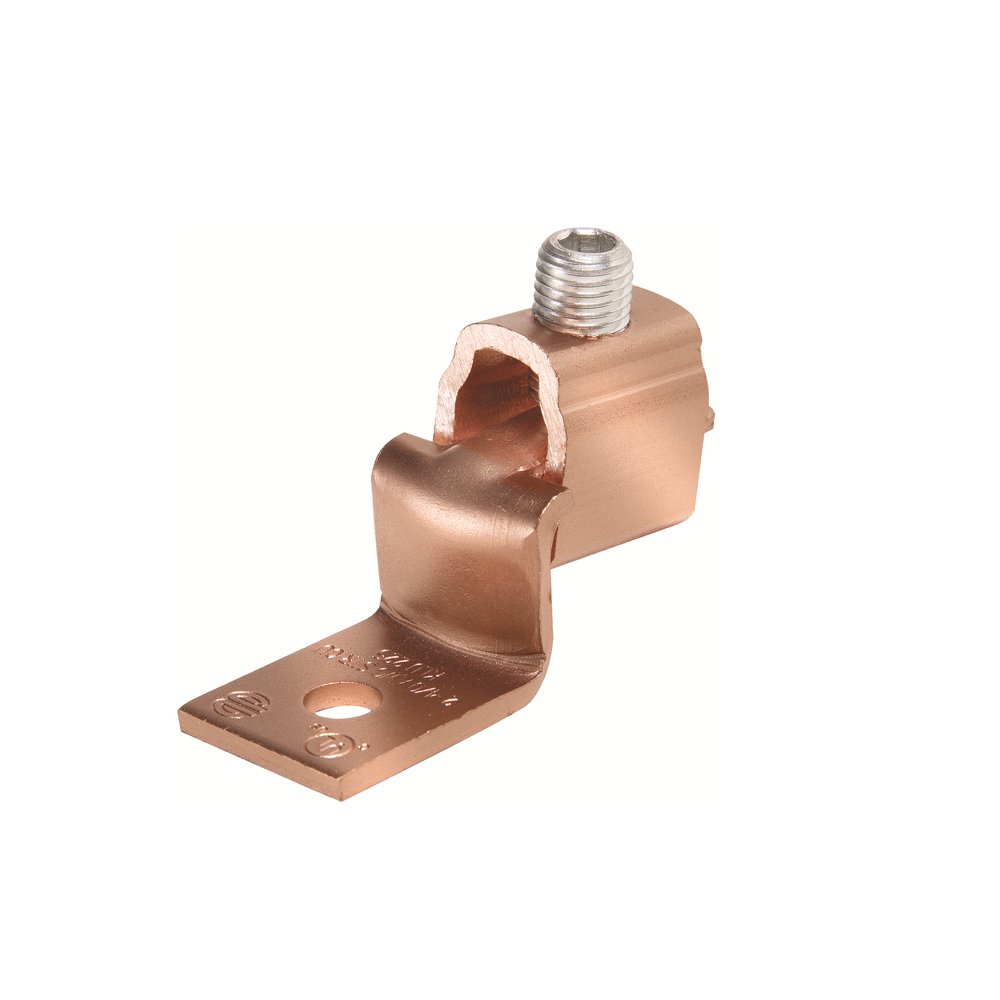

KLU25 Mechanical Terminal Lug, SCRULUG™, 14 to 10 AWG Stranded Solid Copper Conductor, #8 Stud, 1 Bolt Holes, Copper Alloy
| Branch Name | Available |
|---|
Sold as: Pack of Each
BURNDY® is The Grounding Superstore. More than 80 years of technological innovation have made BURNDY® grounding connectors the most widely used and highly respected lines in the industry. Today BURNDY® is a leading manufacturer and provider of commercial and industrial, utility and OEM solutions. Through The Grounding Superstore, we offer four types of grounding products Mechanical, Compression, Exothermic and Tooling & Accessories.
BURNDY® SCRULUG™ Mechanical Terminal Lug, Series: KLU, Stranded Solid Copper Conductor, 14 to 10 AWG Conductor, #8 Stud, 1 Bolt Holes, 0.31 in W x 0.07 in THK Tongue, Offset Tongue, Specifications: (1) Slotted Robertson Screw Set, 20 in-lb Installation Torque, 7/16 in L Strip, Copper Alloy, Plain Copper Plated, 1.02 in L
| Dimensions | : | 1.02 in L |
| Finish | : | Plain Copper Plated |
| Series | : | KLU |
| Specifications | : | (1) Slotted Robertson Screw Set, 20 in-lb Installation Torque, 7/16 in L Strip |
| Tongue Size | : | 0.31 in W x 0.07 in THK |
| Tongue Type | : | Offset |
| Conductor Type | : | Stranded Solid Copper |
| Conductor Size | : | 14 to 10 AWG |
| Stud Size | : | #8 |
| Number of Bolt Holes | : | 1 |
| Material | : | Copper Alloy |
