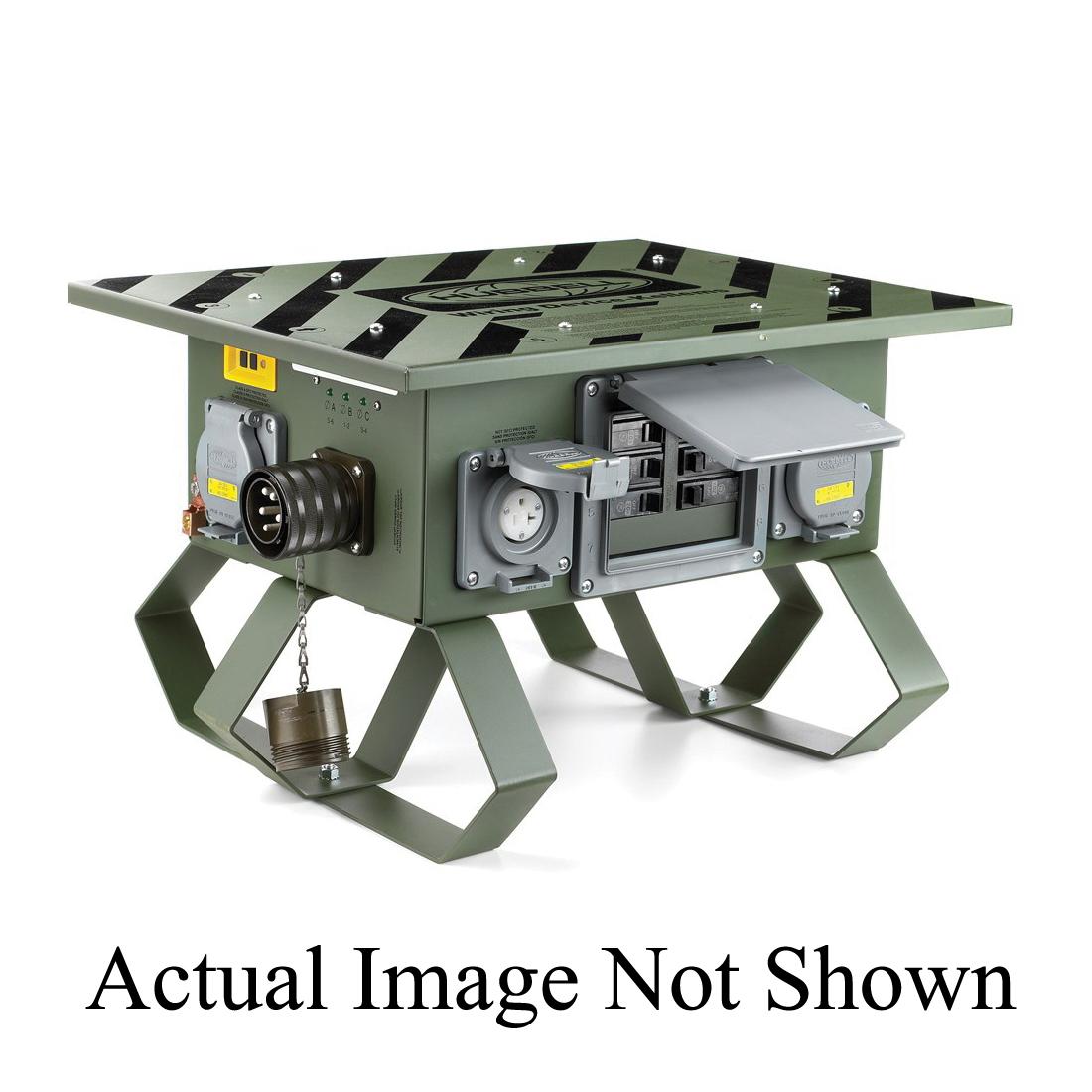

SCTL0 3-Phase Grounding Portable Single Standard Temporary Power Distribution Box, Spider® II Twist-Lock®, 120/208 VAC, 60 A, 12480 W Power Rating, 4 Poles, 5 Wires
Sold as: Pack of 6/PK
Hubbell® Spider® II temporary power distribution system sets the safety and performance standard for temporary power needs. Construction sites and outdoor events place more demands on electrical power than ever before. Hubbell® Spider® II box steps up to the challenge by offering advanced electrical and safety features. The Spider® II box incorporates the most advanced ground fault module technology available in the industry today, ensuring safe and reliable distribution of electrical power for a wide variety of temporary power applications. Breadth of line and innovation, Hubbell® manufactures a variety of Spider® II boxes and temporary power products for both indoor and outdoor power and lighting applications. Hubbell® Spider® products incorporate the most innovative wiring devices in the Hubbell® Safety-Shroud® Twist-Lock® system. The shrouded Twist-Lock® design extends the life of the plug by protecting the blades from abuse and more importantly, the shroud protects the user from arcing.
Wiring Device-Kellems Spider® II Twist-Lock® Temporary Power Distribution Box, 3-Phase Grounding Portable Single Standard, 120/208 VAC, 60 A, 12480 W Power, 4 Pole, 5 Wires, NEMA 3R Enclosure, NEMA L5-20R, Composite, Yellow, 22.84 in L x 18.9 in W x 13.7 in H Dimensions
| Color | : | Yellow |
| Dimensions | : | 22.84 in L x 18.9 in W x 13.7 in H |
| Enclosure | : | NEMA 3R |
| Material | : | Composite |
| NEMA Rating | : | NEMA L5-20R |
| Type | : | 3-Phase Grounding Portable Single Standard |
| Voltage Rating | : | 120/208 VAC |
| Amperage Rating | : | 60 A |
| Power Rating | : | 12480 W |
| Number of Poles | : | 4 |
| Number of Wires | : | 5 |
