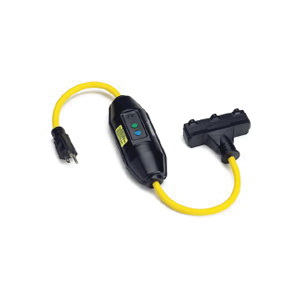

Woodhead® 15050-6TTM 130153 1-Phase Manual Reset Portable GFCI In-Line Cordset, (3) 12 AWG SJTW Conductor, 8 ft L, 125 VAC
Sold as: Pack of EACH
Woodhead® GFCI products are designed to prevent the occurrences of serious injury or death associated with electrical accidents in construction sites and other rugged industrial settings. Portable GFCI products are equipped with an open neutral relay that meets OSHA requirements, safeguarding workers and employees against ground faults.
Woodhead® GFCI In-Line Cordset, 1-Phase Manual Reset Portable, Series: 130153, 12 AWG Conductor, 3 Conductors, SJTW Conductor, 8 ft Length, NEMA 5-15 Triple Tap Connector/NEMA 5-15P Plug End Style, 0.43 in OD, 15 A, 125 VAC, Nylon Jacket, Yellow Jacket
| Amperage Rating | : | 15 A |
| End Style | : | NEMA 5-15 Triple Tap Connector/NEMA 5-15P Plug |
| Jacket Color | : | Yellow |
| Jacket Material | : | Nylon |
| Outside Diameter | : | 0.43 in |
| Series | : | 130153 |
| Type | : | 1-Phase Manual Reset Portable |
| Conductor Size | : | 12 AWG |
| Number of Conductors | : | 3 |
| Conductor Type | : | SJTW |
| Length | : | 8 ft |
| Voltage Rating | : | 125 VAC |
