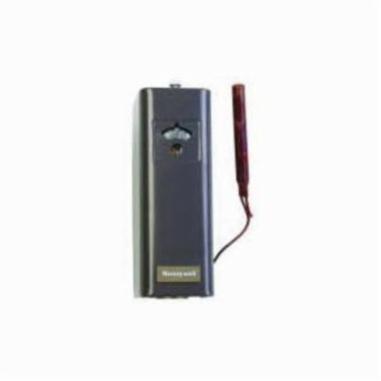

L6006A1145/U High and Low limit Aquastat Controller, Resideo, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 deg F, 5.1 to 48 A, 5 to 30 deg F Differential, Horizontal Mount, Import
| Branch Name | Available |
|---|
Sold as: Pack of 144/CS
Aquastat® Controllers are immersion type devices for limiting or regulating the temperature of liquids in boilers, storage tanks and other applications where temperature control is required.
Resideo Aquastat Controller, High and Low limit, 120 to 240 VAC/0.25 to 12 VDC, 100 to 240 deg F, 5.1 to 48 A, 5 to 30 deg F Differential, Horizontal Mount, 3/8 x 2-7/8 in Copper Bulb, Micro Switch™ Snap-Acting Switch, Import
| Bulb Size | : | 3/8 x 2-7/8 in Copper |
| Switch Type | : | Micro Switch™ Snap-Acting |
| Type | : | High and Low limit |
| Voltage Rating | : | 120 to 240 VAC/0.25 to 12 VDC |
| Temperature Rating | : | 100 to 240 deg F |
| Amperage Rating | : | 5.1 to 48 A |
| Differential | : | 5 to 30 deg F |
| Mounting Type | : | Horizontal |
| Domestic/Import | : | Import |
Instruction/Installation Manual
https://south.electrozad.ca//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_S9200U1000_U_Manual.pdf
Specification Sheet
https://south.electrozad.ca//ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_L4006A1017U_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_L4006A1017U_Specification_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Honeywell_L4006A1017U_Specification_Sheet.pdf
