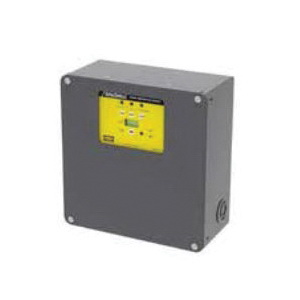

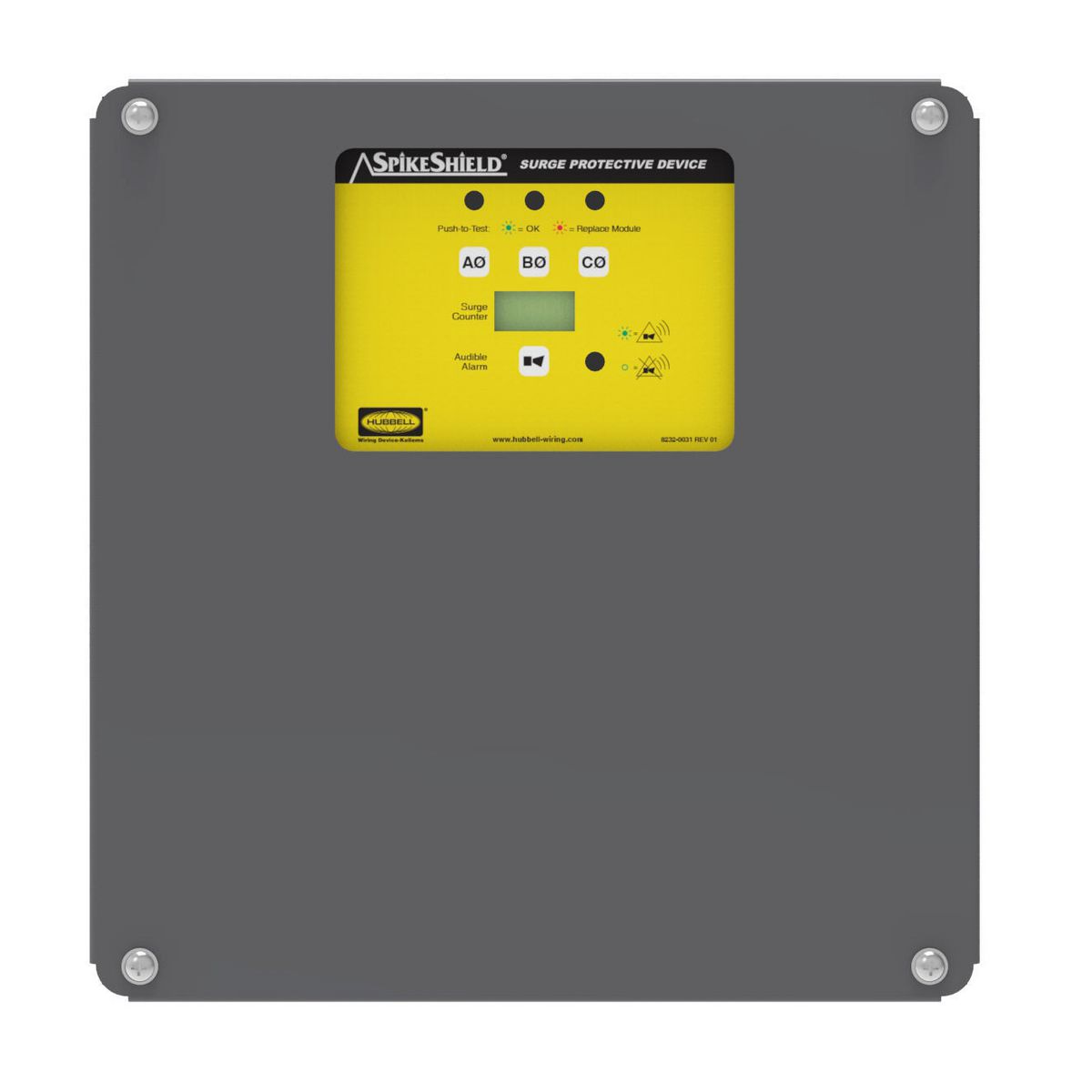

HBL11P120C Branch Service Standard Surge Protective Panel, SpikeShield® 600 Delta VAC, 60 Hz, 3 Phase, 3 Poles, 10 to 2 AWG Wire
| Branch Name | Available |
|---|
Wiring Device-Kellems SpikeShield® Surge Protective Panel, Branch Service Standard, 600 Delta VAC Electrical Rating, 60 Hz Frequency, 3 Phase, 3 Pole, 10 to 2 AWG Wire, 200 kA Short Circuit, 120 kA Peak Surge Current, 5 ns Response, Audible Alarm/Green LED/Red LED Indicator, Environmental Conditions: 32 to 140 deg F Operating Temperature, NEMA 1 Enclosure, Threaded Mounting, 11.44 in H x 11.04 in W x 5.32 in D Dimensions, Composite
| Dimensions | : | 11.44 in H x 11.04 in W x 5.32 in D |
| Enclosure Type | : | NEMA 1 |
| Environmental Conditions | : | 32 to 140 deg F Operating Temperature |
| Indicator Type | : | Audible Alarm/Green LED/Red LED |
| Material | : | Composite |
| Mounting Type | : | Threaded |
| Peak Surge Current | : | 120 kA |
| Response Time | : | 5 ns |
| Short Circuit Current Rating | : | 200 kA |
| Type | : | Branch Service Standard |
| Electrical Ratings | : | 600 Delta VAC |
| Frequency Rating | : | 60 Hz |
| Phase | : | 3 |
| Number of Poles | : | 3 |
| Wire Size | : | 10 to 2 AWG |
Catalog
https://assets.unilogcorp.com/2/ITEM/DOC/Wiring_Device_Kellems_HBL5P320DB_Catalog.pdf
Instruction/Installation Manual
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_be474c474b140db6399ac9caef1fe21ae47466d4db838dbe90143b85489726ba.pdf
Line Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_77608a36fe44cbbefa82dad8c0747c09327277e627e5b662e9e747ffaa091669.pdf
