Non Stock

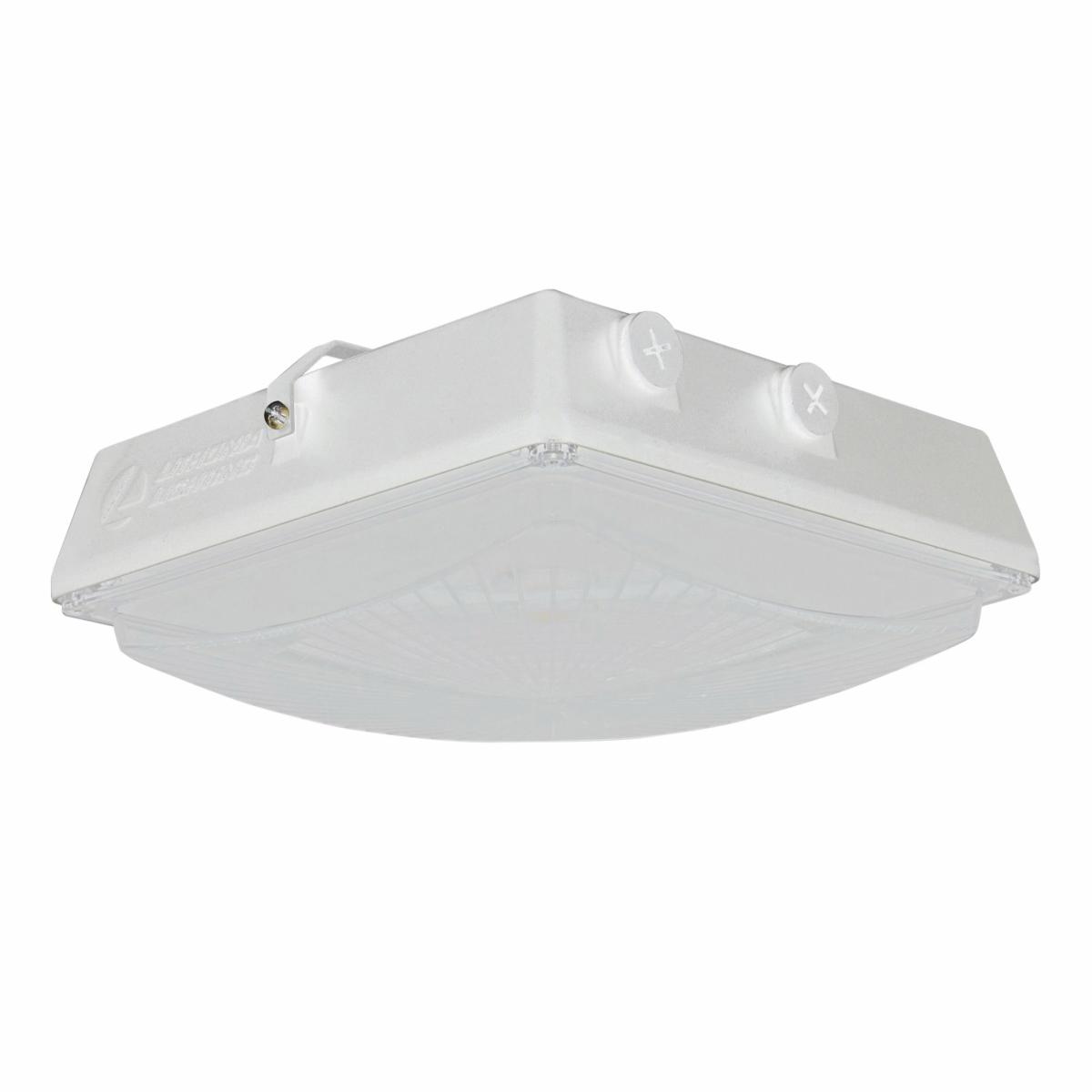

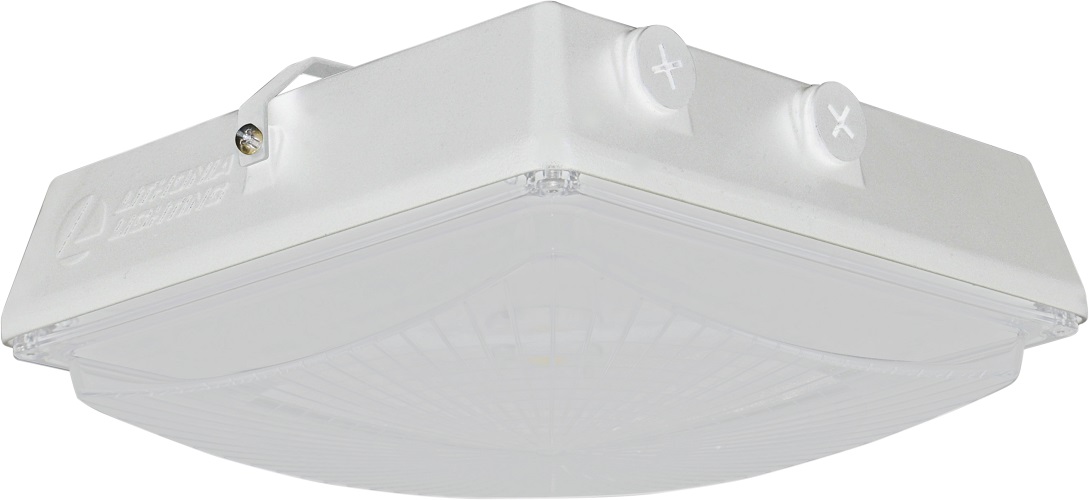

CNY LED P1 40K MVOLT WH M4 Square Canopy Lighting, Contractor Select®, Static LED Lamp, 35 W Fixture, 120 to 277 VAC, Gloss White Housing
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The CNY LED canopy luminaires are versatile, energy efficient solutions for surface mount applications. Available in two sizes, these luminaires can replace a wide range of existing canopy luminaires, anything from CFL to 400 W metal halide. An LED array light source coupled with a translucent acrylic lens creates visually comfortable illumination that is far superior to similar products that use a single bright LED and clear lenses. Smooth sides greatly enhance the aesthetic of this product making suitable for wider range of applications than industrial looking finned products.
Lithonia Lighting® Contractor Select™ Canopy Lighting, Square, Series: CNY, 120 to 277 VAC, 35 W Fixture, Static LED Lamp, 50000 hr Average Life, 4000 K Color Temperature, Translucent Acrylic Lens, 4500 Lumens, Surface Mounting, Cast Aluminum Housing Material, Gloss White Housing Finish, 4-1/2 in H x 10 in W x 10 in D Dimensions
| Average Life | : | 50000 hr |
| Color Rendering Index (CRI) | : | 70 |
| Color Temperature | : | 4000 K |
| Dimensions | : | 4-1/2 in H x 10 in W x 10 in D |
| Housing Material | : | Cast Aluminum |
| Lens Type | : | Translucent Acrylic |
| Light Color | : | Cool White |
| Light Output | : | 128.6 Lumens/W |
| Lumens | : | 4500 Lumens |
| Mounting Type | : | Surface |
| Series | : | CNY |
| Type | : | Square |
| Lamp Type | : | Static LED |
| Fixture Wattage | : | 35 W |
| Voltage Rating | : | 120 to 277 VAC |
| Housing Finish | : | Gloss White |
Instruction/Installation Manual
https://south.electrozad.ca//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_P0_40K_MVOLT_DDB_M4_Manual.pdf
Instruction/Installation Manual
https://south.electrozad.ca//ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_P1_40K_MVOLT_DDB_M4_Instruction_Sheet.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_P0_40K_MVOLT_DDB_M4_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Lithonia_Lighting_CNY_LED_P0_40K_MVOLT_DDB_M4_Manual.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0e8e85a328958f5da89bf5c242927eff15a4e54d9972be5d2fbc63b5dd386f9c.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_0e8e85a328958f5da89bf5c242927eff15a4e54d9972be5d2fbc63b5dd386f9c.pdf
Print
