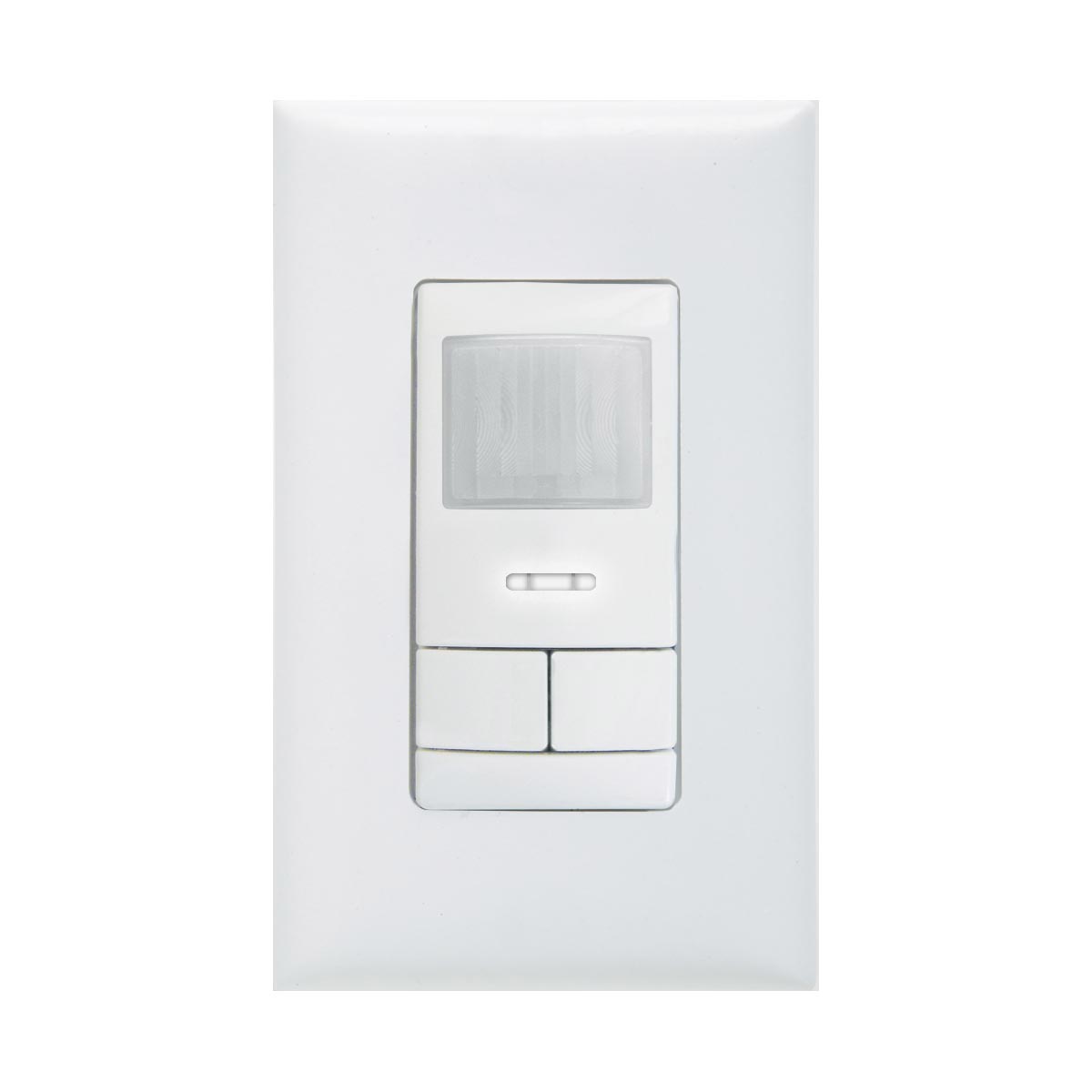

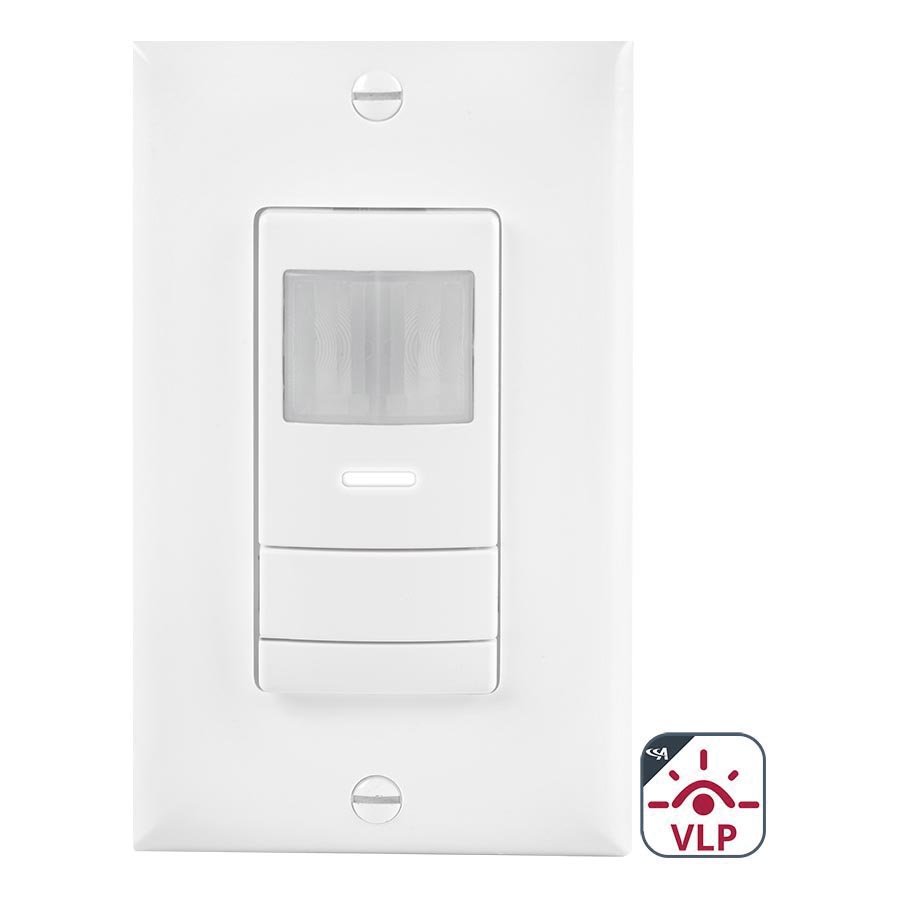

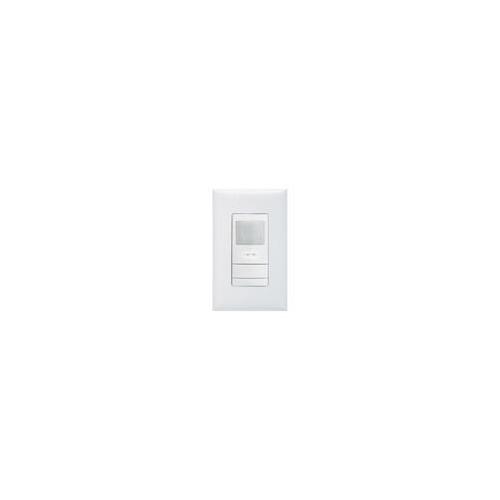

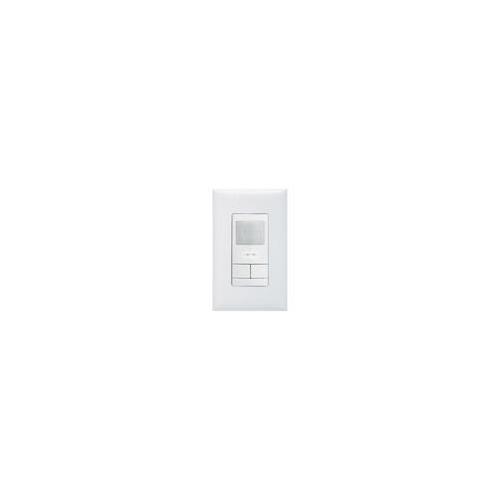

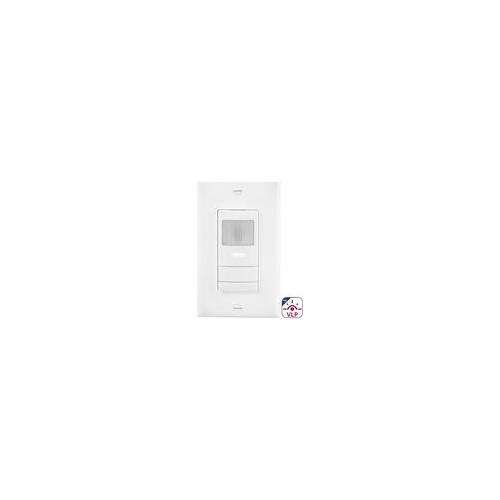

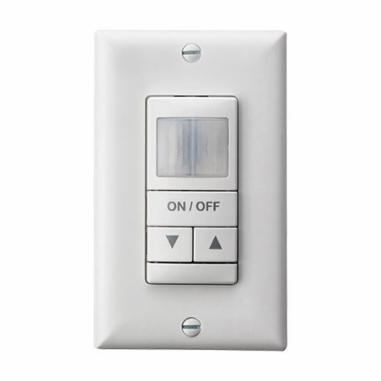

WSX PDT D SA WH WSX PDT Series Wall Switch Occupancy Sensor, 120 to 277 VAC, PIR/Microphonics™ Sensor, 625 sq-ft Coverage, Surface Mount
Sold as: Pack of EACH
The WSX Family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX Family sensors have a stylish low profile appearance, soft-click buttons, and provide small motion detection up to 20 ft (6.1 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX Family sensors have a patent-pending wiring method that enables them to functioneither with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
Sensor Switch™ Wall Switch Occupancy Sensor, Series: WSX PDT Series, 120 to 277 VAC, 800/1200 W Power, PIR/Microphonics™ Sensor, 625 sq-ft Coverage, Incandescent Lamp, 50/60 Hz Response, Vacancy (Default)/Automatic ON Control Output, NEMA WD7 Enclosure, Surface Mounting, 32 to 140 deg F, White, 1.68 in W x 1.63 in D x 2.74 in H Dimensions
| Color | : | White |
| Control Output | : | Vacancy (Default)/Automatic ON |
| Dimensions | : | 1.68 in W x 1.63 in D x 2.74 in H |
| Enclosure Type | : | NEMA WD7 |
| Lamp Type | : | Incandescent |
| Power Rating | : | 800/1200 W |
| Response Frequency | : | 50/60 Hz |
| Series | : | WSX PDT Series |
| Temperature Rating | : | 32 to 140 deg F |
| Voltage Rating | : | 120 to 277 VAC |
| Sensor Type | : | PIR/Microphonics™ |
| Coverage | : | 625 sq-ft |
| Mounting Type | : | Surface |
Catalog
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_WSXPDT2PFANWH_Catalog.pdf
Instruction/Installation Manual
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Sensor_Switch_WSXPDT2PFANWH_Manual.pdf
Specification Sheet
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_caef62b953d177c976e1d84a66f985cbec22cbbe479fb00a0ec64527c8310ac5.pdf
