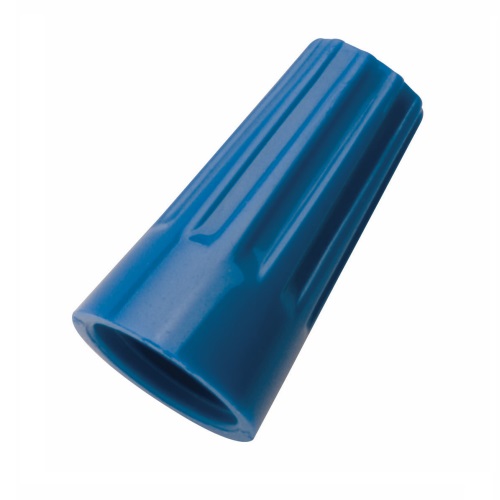

30-072 Flame Retardant Wire Connector, Twist-On Shell, Fixed/Square Wire Spring, 22 to 14 AWG Solid Copper/Stranded Wire, Polypropylene, Blue, 100pcs/Box
| Branch Name | Available |
|---|
With a fixed, square wire spring and a positive grip shell, the WIRE-NUT® is perfect to twist-on with fingers for a secure connection that will last. The refined wire range makes it the best choice for fine stranded wire applications. The WIRE-NUT® also features a tough, flame retardant thermoplastic shell that withstands environmental extremes and is reusable for easy circuit changes and addition.
IDEAL® WIRE-NUT® Wire Connector, Flame-Retardant, Series: 72B®, Twist-On, Fixed/Square Wire, Solid Copper/Stranded Wire, 22 to 14 AWG Wire, 300 VAC, 1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 3 AWG Maximum Conductor Combination Size, 221 deg F, Polypropylene, Blue, Zinc Plated, 45/64 in H x 25/64 in W
| Color | : | Blue |
| Dimensions | : | 45/64 in H x 25/64 in W |
| Finish | : | Zinc Plated |
| Series | : | 72B® |
| Specifications | : | 1/2 in Solid, 3/8 in Stranded Wrip Strip, 1 to 5 Conductors, 16 to 2 AWG Minimum, 16 to 3 AWG Maximum Conductor Combination Size |
| Temperature Rating | : | 221 deg F |
| Type | : | Flame-Retardant |
| Voltage Rating | : | 300 VAC |
| Shell Style | : | Twist-On |
| Spring Type | : | Fixed/Square Wire |
| Wire Type | : | Solid Copper/Stranded |
| Wire Size | : | 22 to 14 AWG |
| Material | : | Polypropylene |
