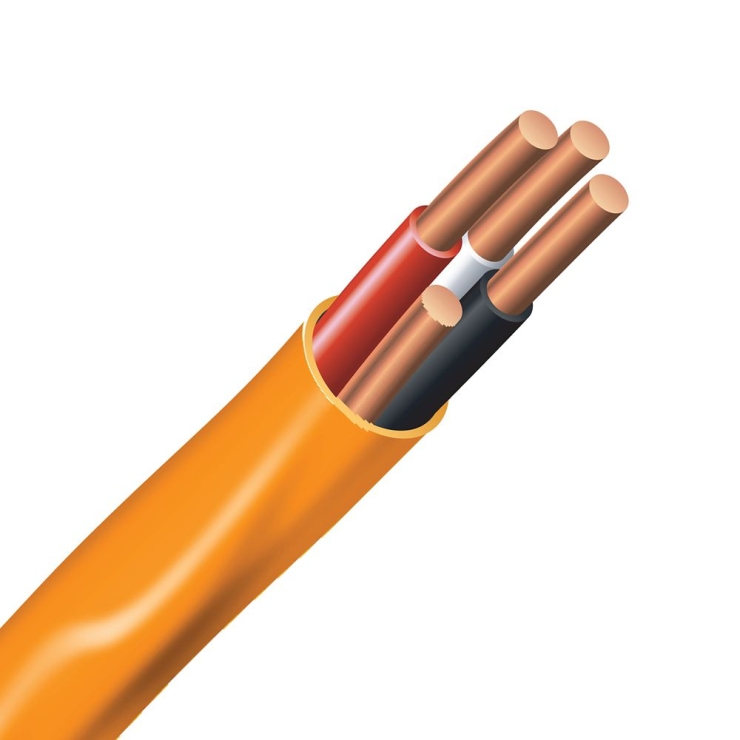

NMD10/3 Non-Metallic Sheathed Building Wire, NMD Romex®, Cu #10 AWG, 3 Conductor, Copper, Orange Cut Lengths
| Branch Name | Available |
|---|
NMD90 Multi conductor cables, with 90°C PVC Nylon insulation, may be used for both exposed work in dry locations or concealed work in dry or damp locations. Bare bonding wire and overall jacket of moisture resistant and flame retardant PVC. The maximum voltage rating for all intended applications is 300 Volts.
Romex® Building Wire, Type NMD90 Non-Metallic Sheathed, Canadex, Type NMD90, 300 VAC, 30 A, 3 Conductors, Stranded Solid Copper Conductor, 10 AWG Conductor, 0.61 in OD, 1 Strands, Cross Linked Polyethylene Insulation, PVC Nylon Jacket, Orange Jacket, 90 deg C
| Amperage Rating | : | 40 |
| Insulation Material | : | PVC/Nylon |
| Jacket Material | : | PVC |
| Outside Diameter | : | 0.427 in |
| Temperature Rating | : | -25 to 90 deg C |
| Type | : | NMD90 |
| Voltage Rating | : | 300 |
| Number of Conductors | : | 3 |
| Conductor Type | : | Copper |
| Conductor Size | : | #10 AWG |
| Length | : | 1 mtr |
| Jacket Color | : | Orange |
Specification Sheet
https://assets.southwire.com/ImConvServlet/imconv/1722fe2929682d9f51c637ddb11820bd9dc86e4b/origin?hybrisId=otmmHybrisPRD&assetDescr=NMD90-SIMpull-Copper
