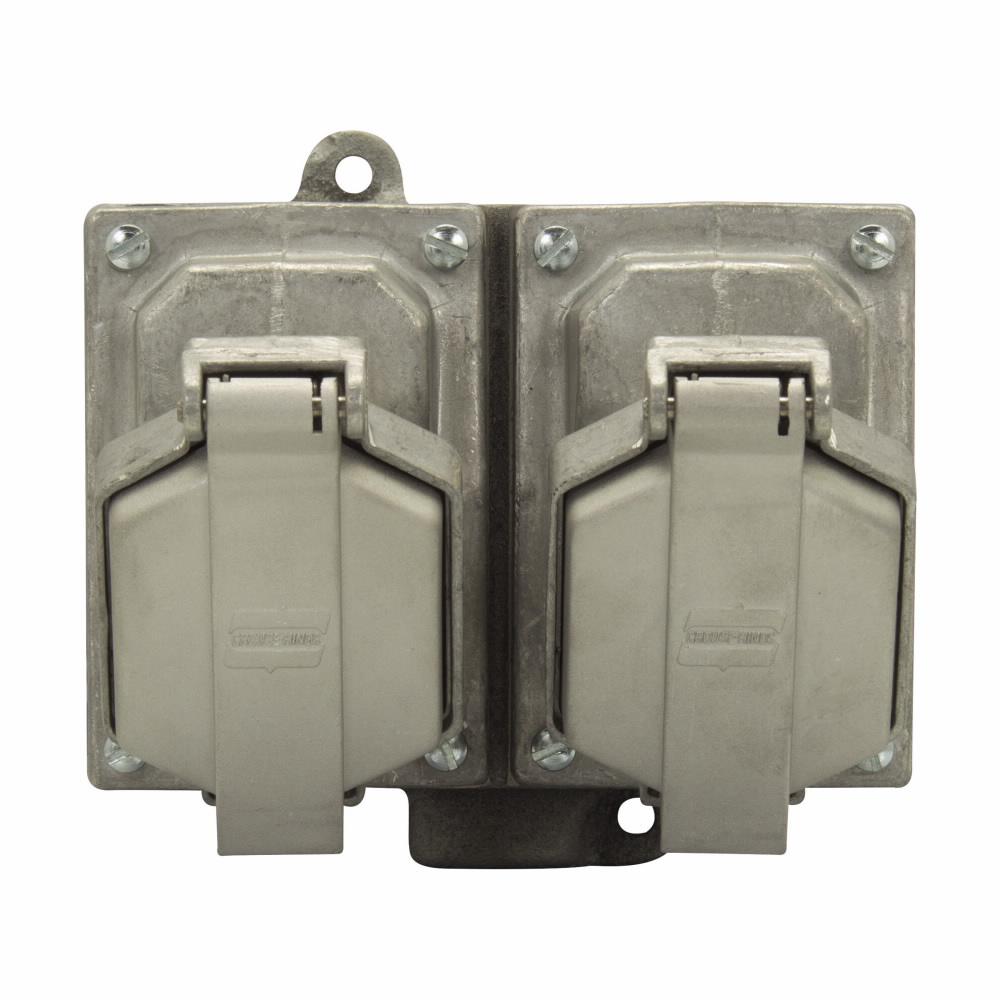

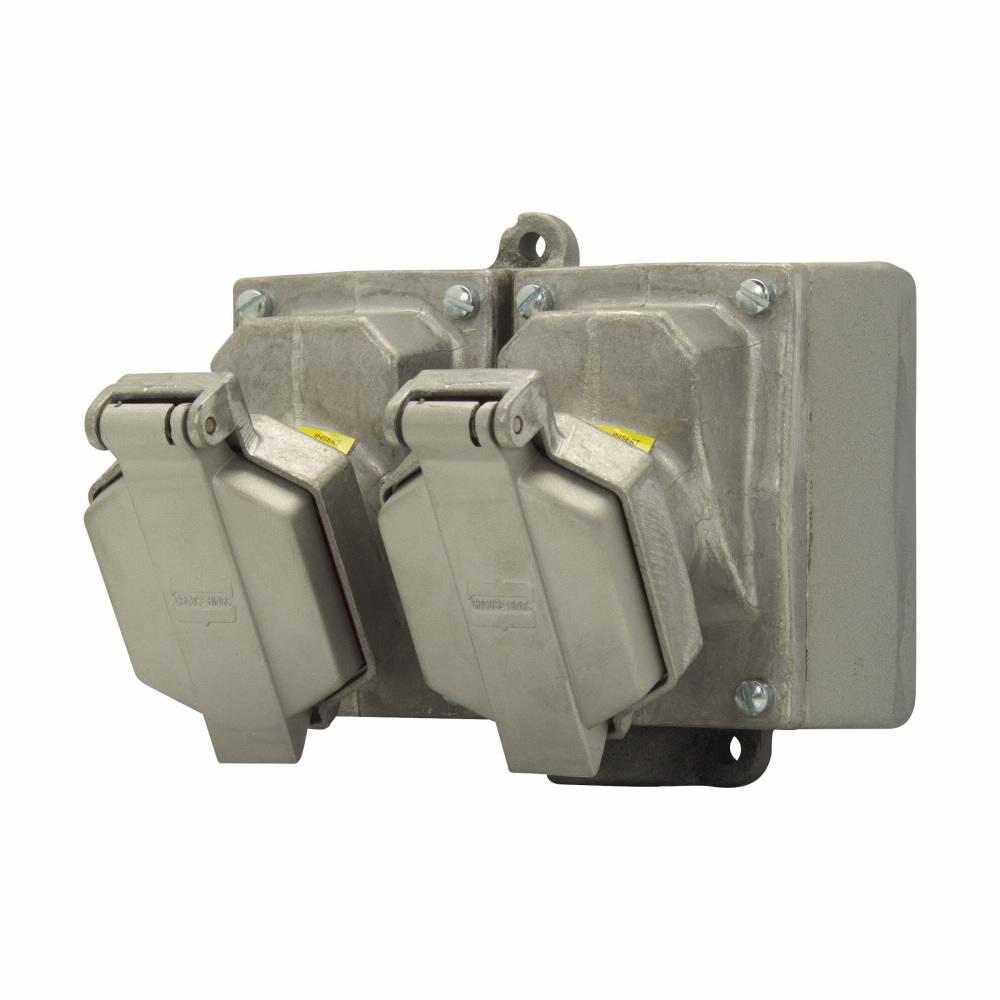

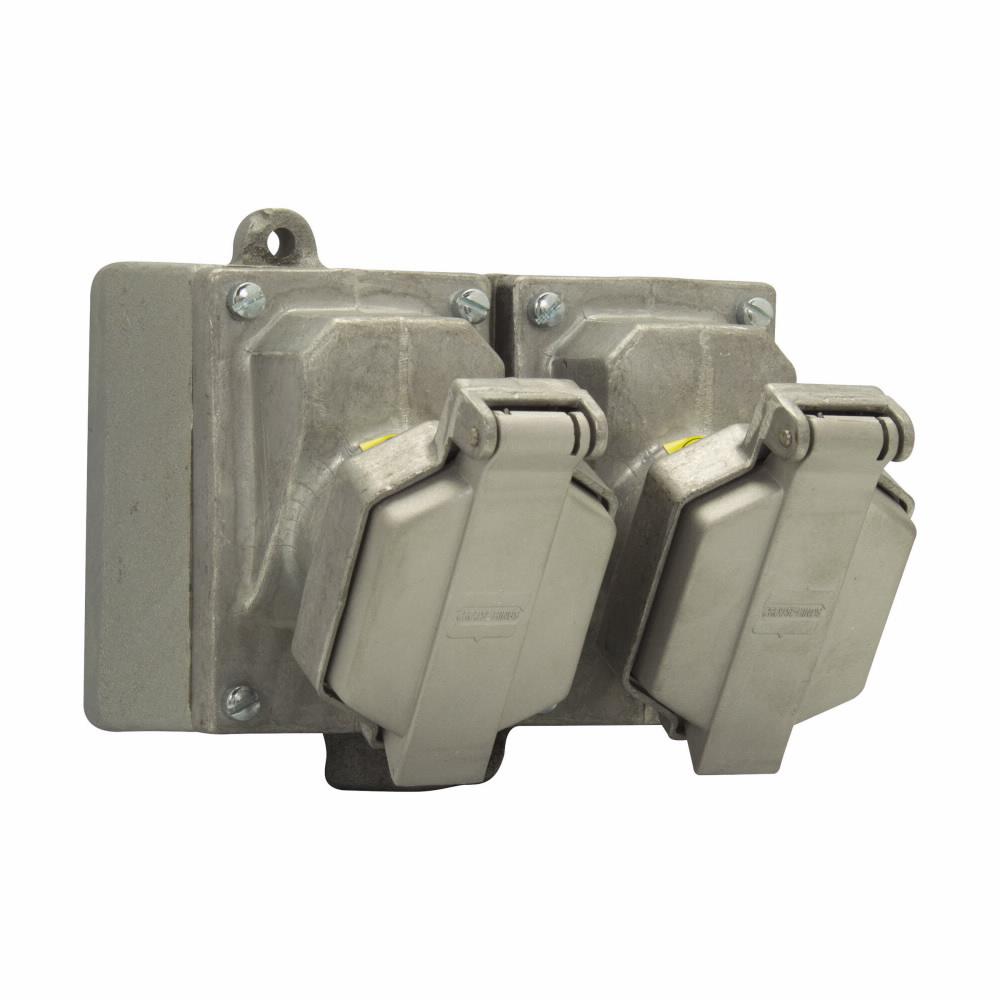

ENR12151 ENR Value 2-Gang Dead End Explosionproof Receptacle Assembly, Ark-Gard®, 125 VAC, 15 A
Sold as: Pack of EACH
Ark-Gard ENC connectors, ENP plugs and ENR receptacles from Eaton Crouse-Hinds Division make it safe and easy to bring power wherever it is needed. Connectors provide versatility for making cordsets for connecting portable devices in both hazardous and non-hazardous locations. Ark-Gard plugs and receptacles are used with portable electrical equipment such as compressors, tools, lighting systems and similar devices when power requirements do not exceed 20 amperes. They are also used in areas made hazardous by the presence of flammable vapors and gases or combustible dusts.
Crouse-Hinds Ark-Gard® Explosionproof Receptacle Assembly, 2-Gang Dead End, Series: ENR Value, 125 VAC, 15 A, NEMA 5-15R NEMA Rating, NEMA 3/7B/7C/7D/9F/9G/12 Enclosure, Die Cast Copper-Free Aluminum, 7-9/16 in L x 8 in W x 6-23/32 in H Dimensions
| Dimensions | : | 7-9/16 in L x 8 in W x 6-23/32 in H |
| Enclosure | : | NEMA 3/7B/7C/7D/9F/9G/12 |
| Material | : | Die Cast Copper-Free Aluminum |
| NEMA Rating | : | NEMA 5-15R |
| Series | : | ENR Value |
| Type | : | 2-Gang Dead End |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse_Hinds_ENRC22202_Brochure.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse_Hinds_ENRC22202_Installation_Instructions.pdf
Warranty Information
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2591020677e3f4a06dfa44770294e5b59dc7819413ebeaa1bdb1ce89a7cea8b.pdf
