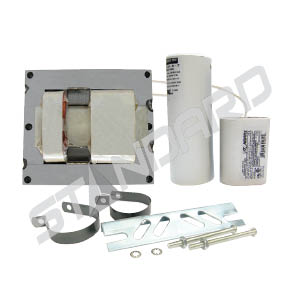

STANDARD® 10111 Core and Coil Magnetic High Pressure Sodium Ballast, HID Lamp, 250 W, 120/208/240/277/240 VAC
| Branch Name | Available |
|---|
STANDARD® High Pressure Sodium Ballast, Core and Coil Magnetic, HID Lamp, 250 W Lamp, 300 W, 120/208/240/277/240 VAC, 1.75/1/0.9/0.8 A, 60 Hz, -40 deg F Minimum Starting, Power Factor: 0.9, ANSI S50 Ballast Grade, 4.75 in L x 4.25 in W x 3.43 in D
| Amperage Rating | : | 1.75/1/0.9/0.8 A |
| Ballast Grade | : | ANSI S50 |
| Dimensions | : | 4.75 in L x 4.25 in W x 3.43 in D |
| Frequency Rating | : | 60 Hz |
| Minimum Starting Temperature | : | -40 deg F |
| Power Factor | : | 0.9 |
| Type | : | Core and Coil Magnetic |
| Wattage | : | 300 W |
| Lamp Type | : | HID |
| Lamp Wattage | : | 250 W |
| Voltage Rating | : | 120/208/240/277/240 VAC |
