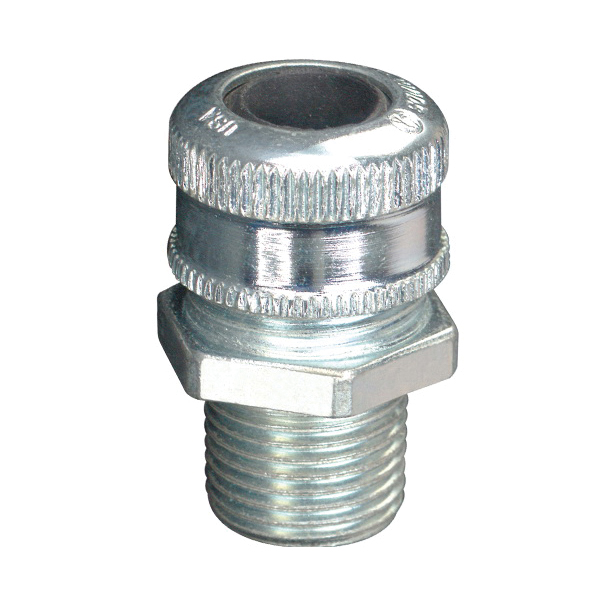

CGB3893 Form B Straight Cable Gland, 3/8 in Trade, 1/4 to 3/8 in Cable Openings, Steel/Neoprene, Electro-Plated Zinc/Chromate Coated
Sold as: Pack of EACH
They are also listed for use with tray cable types TC, TC-ER, TC-ER-HLA, ITC, ITC-ER, ITC-HL, PLTC and PLTC-ER. When installed in accordance with NEC501.10(B)(4), CGB, CGD, CGE and CGFP non-armoured glands are suitable for use in Class I, Division 2 hazardous locations. Crouse-Hinds series CGB, CGD, CGE and CGFP non-armoured glands are installed to provide a means for passing a cord, unarmoured cable or flexible conduit into an enclosure. The glands form an environmental seal for cord or unarmoured round cables and they form a secure connection or termination for flexible cord, cable (unarmoured) or flexible conduit. These cable glands are listed for use with flexible cords, including Type S, SO, STO, ST, SJ, SJT, SJTO and SVO.
Crouse-Hinds Cable Gland, Form B Straight, Series: CGB, 3/8 in Trade, Cable Openings: 1/4 to 3/8 in, Non-Armored/Tray Cable, MNPT Connection, Steel/Neoprene, Electro-Plated Zinc/Chromate Coated, -25 to 40 deg C, 1.751 in L Dimensions
| Cable Type | : | Non-Armored/Tray |
| Connection Type | : | MNPT |
| Dimensions | : | 1.751 in L |
| Series | : | CGB |
| Temperature Rating | : | -25 to 40 deg C |
| Type | : | Form B Straight |
| Trade Size | : | 3/8 in |
| Cable Openings | : | 1/4 to 3/8 in |
| Material | : | Steel/Neoprene |
| Finish | : | Electro-Plated Zinc/Chromate Coated |
