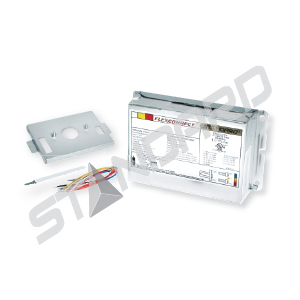

31526 Electronic Fluorescent Ballast, FlexConnect, CFL/Fluorescent Lamp, 22 to 57 W, 120 to 277 VAC, Programmed
| Branch Name | Available |
|---|
STANDARD® FlexConnect Electronic Fluorescent Ballast, CFL/Fluorescent Lamp, 22 to 57 W Lamp, 120 to 277 VAC, Programmed Start, -20 deg C Minimum Starting, 1/2 Lamps, T5 Lamp Base Type
| Amperage Rating | : | 0.38 to 0.46 A |

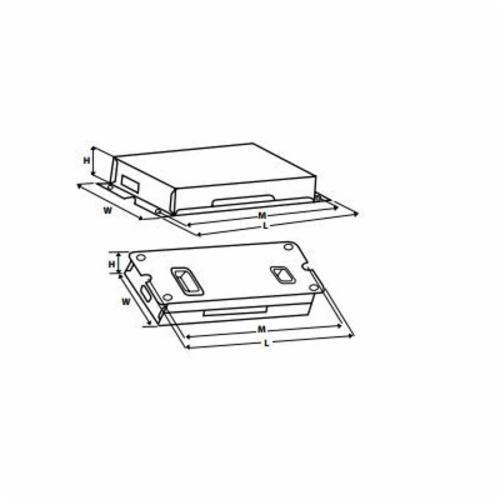

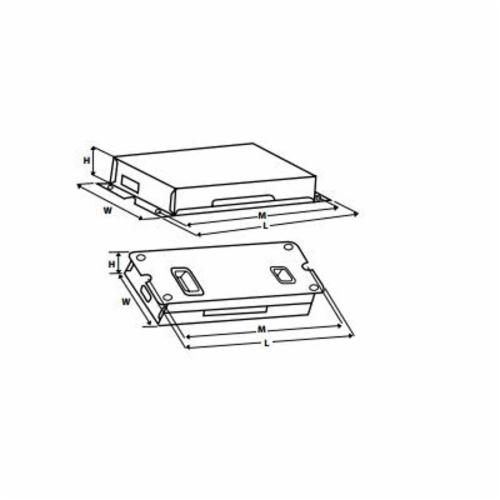

| Dimensions | : | 5 in L x 3 in W x 1.34 in H |
| Frequency Rating | : | 50/60 Hz |
| Lamp Base Type | : | T5 |
| Minimum Starting Temperature | : | -20 deg C |
| Number of Lamps | : | 1/2 |
| Power Factor | : | 0.98 |
| Temperature Range | : | 90 deg C |
| Thermal Protection | : | Class P |
| Type | : | Dual Entry Thermally Protected |
| Lamp Type | : | CFL/Fluorescent |
| Lamp Wattage | : | 22 to 57 W |
| Voltage Rating | : | 120 to 277 VAC |
| Start Type | : | Programmed |
| Ballast Factor | : | 0.99 to 1.07 |
