Non Stock

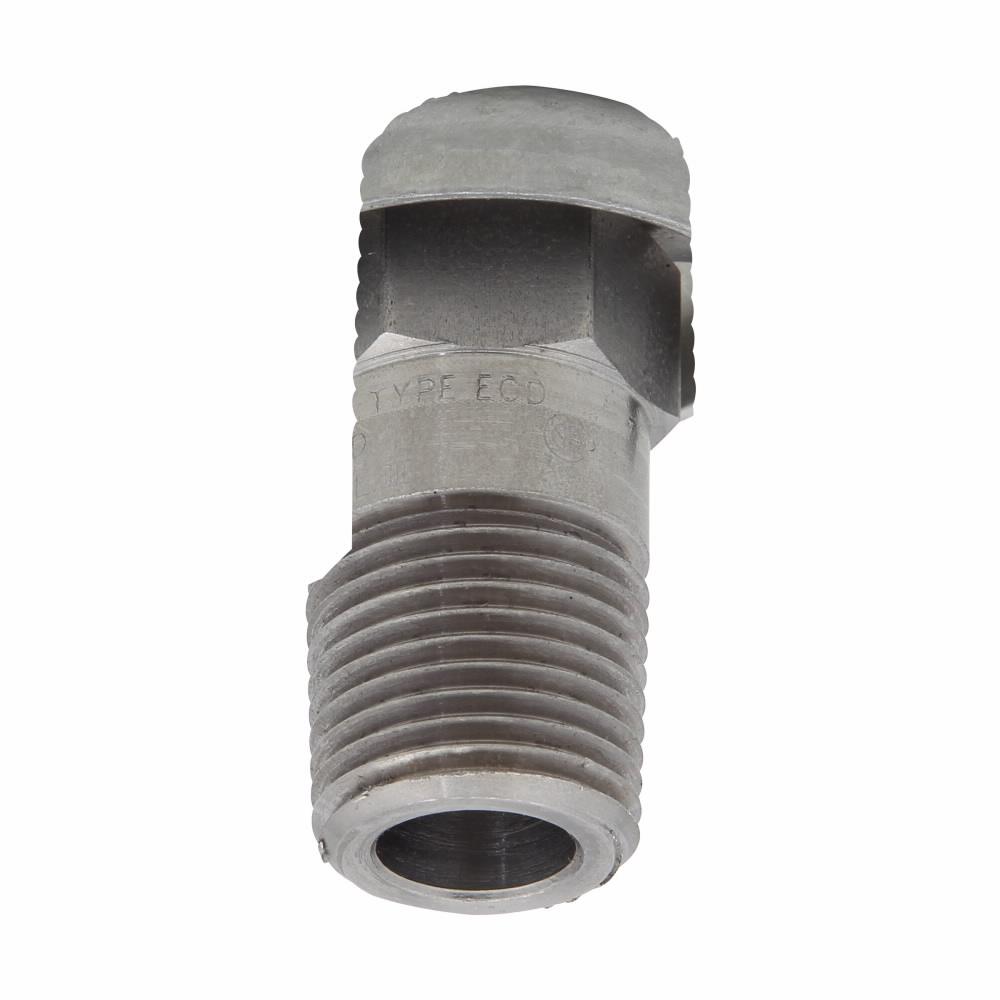

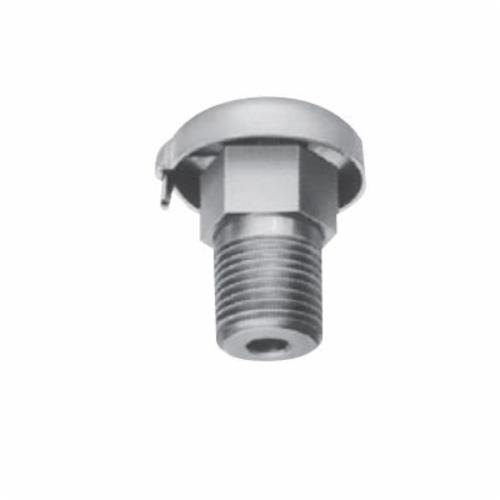

ECD13 Standard Explosionproof Conduit Breather With Aluminum Cap, 1/2 in, For Use With Enclosure and Conduit System, Stainless Steel
Sold as: Pack of EACH
Crouse-Hinds series ECD breathers and drains are for use in hazardous location conduit systems to drain accumulated condensate and provide ventilation to minimize condensation. A breather is installed in the top of an enclosure or in the upper section of a conduit system. A standard drain is installed in the bottom of an enclosure or in the lower section of a conduit system. At least one breather should be used with each drain. ECDs are also available in universal and combination models. A universal ECD functions as a breather when mounted at the top of an enclosure or as a drain when mounted in the bottom of an enclosure. Combination ECDs are used in those applications where the use of a top mounted breather is not practical due to limited space or in offshore and marine installations where moisture may enter the enclosure through the breather located on top of the enclosure.
Crouse-Hinds Explosionproof Conduit Breather, Standard, Series: ECD, 1/2 in Size, For Use With: Enclosure and Conduit System, Threaded Mounting, Stainless Steel
| Mounting Type | : | Threaded |
| Series | : | ECD |
| Type | : | Standard |
| Size | : | 1/2 in |
| Suitable For Use With | : | Enclosure and Conduit System |
| Material | : | Stainless Steel |
