Crouse-Hinds series AFU and AFUX explosionproof conveyor belt control switches provide an emergency or normal inSTOP in switch for conveyor lines, cranes, unloaders and bulk handling systems. They are used in the control circuit of magnetic motor starters to shut down motor-driven conveyors or other machinery when switch is actuated. Common applications include steel mills, mining ore and coal handling operations, automotive and assembly lines, warehouses and loading docks.

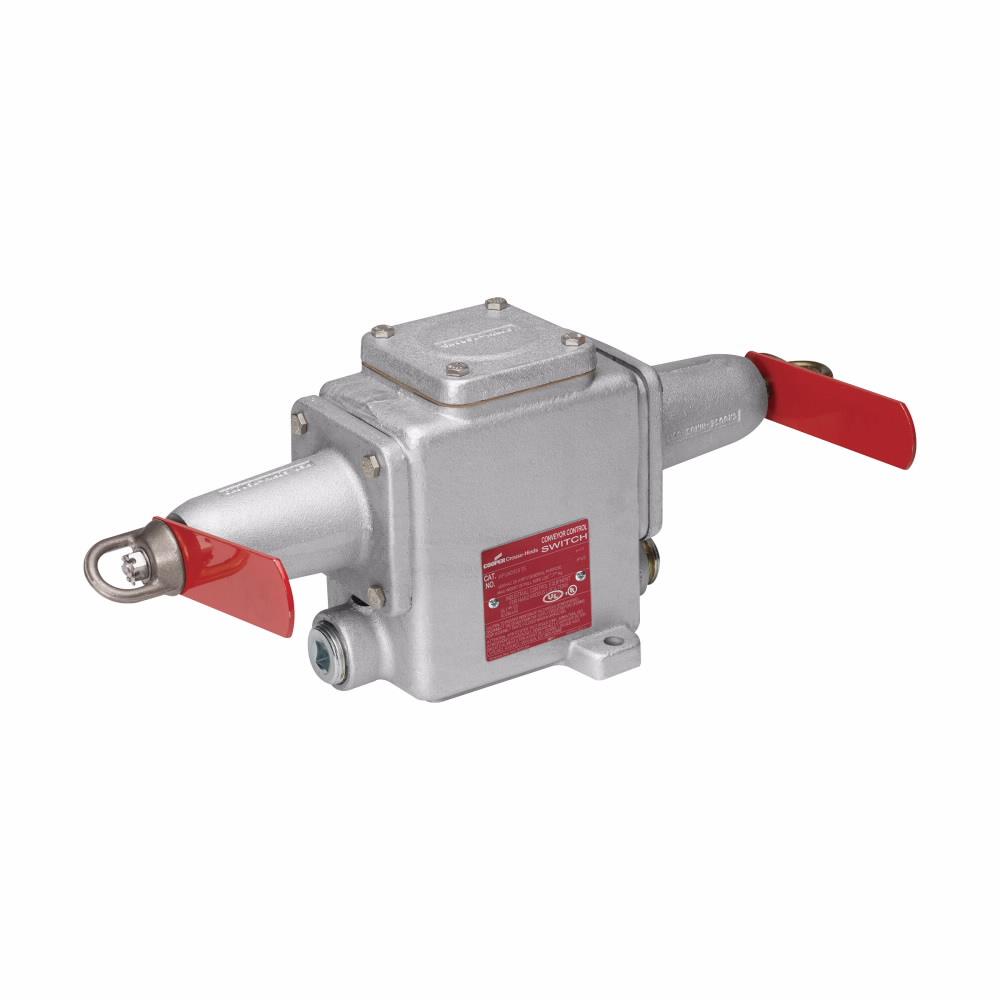

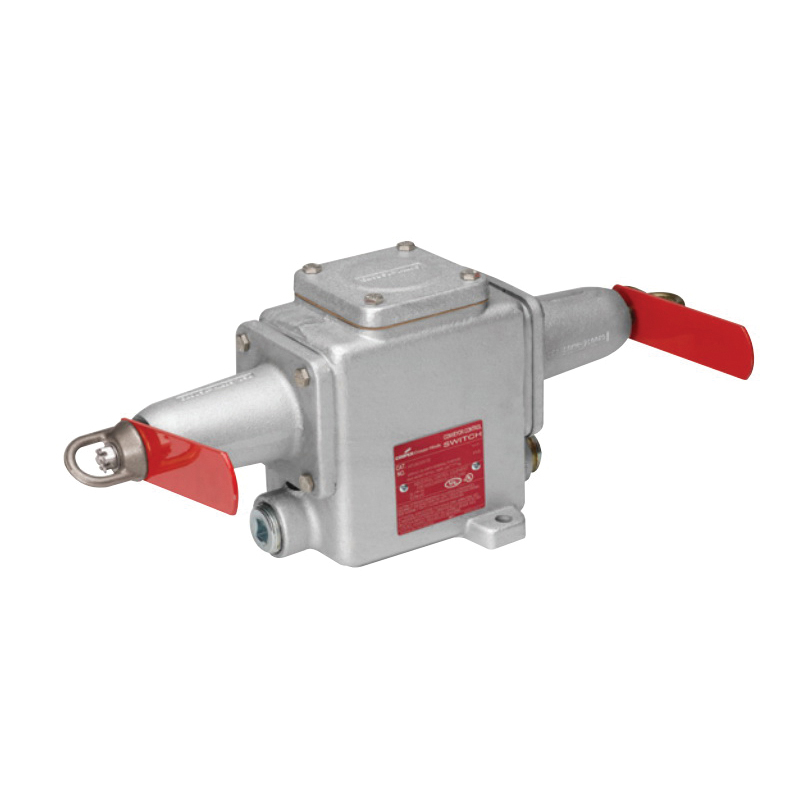

Crouse-Hinds Conveyor Belt Control Switch, Double End, Series: AFU, 600 VAC, 15 A, 2NO-2NC Contact Form, Plunger Actuator, NEMA 3/4/9E/9F/9G/IP66 Enclosure, Lug Mounting, 9.5 in W x 5.68 in H Dimensions, Feraloy Iron Alloy, Electro-Galvanized/Aluminum Acrylic Painted

• As emergency or normal "STOP" switch for conveyor lines, cranes, unloaders, bulk handling system and similar equipment
• In steel mills, mining and ore and coal handling operations, automotive and other assembly lines, warehouses, loading docks and various process industry facilities
• In the control circuit of magnetic motor starters to shut down motor-driven conveyors or other machinery when switch is actuated
• Precision switches provide maintained contact switches have a snap action mechanism
• Multiple conduit hubs cast mounting lug ON 1-1/2 in centers permit attachment to the web of a standard 3 in angle iron
• In installation, the actuating line or cable is connected from a fixed point to the loop ON the end unit
• A pull ON the line of the required operating force and with a total movement of 1/2 in actuates the plunger, opens the switch and trips the red painted indicating arm forward, which locks the plunger in the actuated switch open position
• Returning the indicating arm to its normal position resets the mechanism
• Depending ON the size and length of line, supports at properly spaced intervals may be necessary to ensure that the line or cable weight alone will not actuate switch
• Explosionproof, dust-ignitionproof, rain tight
• Stainless steel plunger
• Bronze loop
• Steel indicating arm
• Electro-galvanized with aluminum acrylic painted
• 25 lb total operating force
