Non Stock

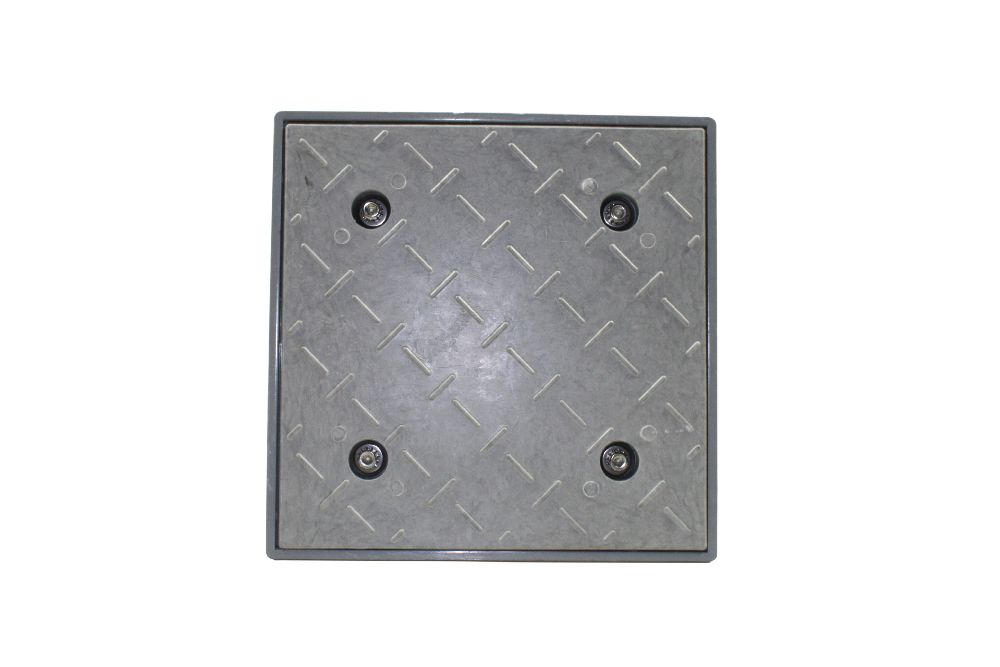

H666 077686 H Series Flanged Junction Box with Cover, Scepter®, 6 in L x 6 in W x 6 in D, Fire Reinforced Safety Tread Cover, PVC
PRODUCT LINE: Scepter Rigid PVC Fittings includes adapters, couplings, elbows, access fittings, boxes, cover plates, expansion fittings and conduit spacers - virtually any fitting required to complete the PVC conduit system. Easy installations, the ability to perform in demanding environments and labor savings are the reasons non-metallic conduit fittings are increasingly the fitting of choice. FEATURES: Lightweight yet offers high impact and tensile strength;Chemical resistant to a wide range of acids, alkalis or salt solutions;Corrosion resistant for lower maintenance cost and longer life;PVC is nonconductive eliminating dangerous second point of contact;Lightweight yet offers high impact and tensile strength;Chemical resistant to a wide range of acids, alkalis or salt solutions;Corrosion resistant for lower maintenance cost and longer life;PVC is nonconductive eliminating dangerous second point of contact
Scepter® Junction Box, Flanged, Series: H Series, 6 in Height, 6 in Width, 6 in Depth, Fire Reinforced Safety Tread Cover, 211 cu-in Capacity, PVC, Gray
| Capacity | : | 211 cu-in |
| Color | : | Gray |
| Series | : | H Series |
| Type | : | Flanged |
| Length | : | 6 in |
| Width | : | 6 in |
| Depth | : | 6 in |
| Cover Type | : | Fire Reinforced Safety Tread |
| Material | : | PVC |
Catalog
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_a49640a437e0cc7943935493760bef7729fbb7d8b371f348216056237ce3825c.pdf
Full Engineering Drawing
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Scepter_077685_Full_Engineering_Drawing.pdf
Specification Sheet
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_bcd81b2c6c5369f9605b5cdb75a961b16eda6de23fd579fa523a47cea22eb4e0.pdf
IDW_DOCUMENT_4baa187a90cf312283a948196ae15955aea03dadabbbb4f9b35a13d292eafdad.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_4baa187a90cf312283a948196ae15955aea03dadabbbb4f9b35a13d292eafdad.pdf
