Non Stock

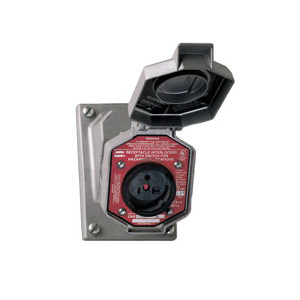

ENR21151 ENR Value 1-Gang Dead End Explosionproof Receptacle Assembly, Ark-Gard®, 125 VAC, 15 A
Sold as: Pack of EACH
The value line of ENR Receptacles is the ideal solution for rugged and industrial NEMA configured applications up to 20 amperes. Like the premier line, this product comes equipped with built-in safety features that reject standard NEMA configuration plugs that could cause an arc in hazardous areas.
Crouse-Hinds Ark-Gard® Explosionproof Receptacle Assembly, 1-Gang Dead End, Series: ENR Value, 125 VAC, 15 A, NEMA 5-15R, NEMA 3/7B/7C/7D/9F/9G/12 Enclosure, Die Cast Copper Free Aluminum, 3-1/2 in L x 8 in W x 6-23/32 in H Dimensions
| Dimensions | : | 3-1/2 in L x 8 in W x 6-23/32 in H |
| Enclosure | : | NEMA 3/7B/7C/7D/9F/9G/12 |
| Material | : | Die Cast Copper Free Aluminum |
| NEMA Rating | : | NEMA 5-15R |
| Series | : | ENR Value |
| Type | : | 1-Gang Dead End |
| Voltage Rating | : | 125 VAC |
| Amperage Rating | : | 15 A |
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_2d01cee485e6c63682e1bbeb4f5782795d7fa325220f262edaf32de98974dd09.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/Crouse_Hinds_ENRC22202_Installation_Instructions.pdf
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_00feb024daa5c7faa410a74ec67fbff5638e9a26da9c479dc8b165d7f68d3c54.pdf
Warranty Information
https://externalassets.unilogcorp.com/ASSETS/DOCUMENTS/ITEMS/EN/IDW_DOCUMENT_e2591020677e3f4a06dfa44770294e5b59dc7819413ebeaa1bdb1ce89a7cea8b.pdf
Print
