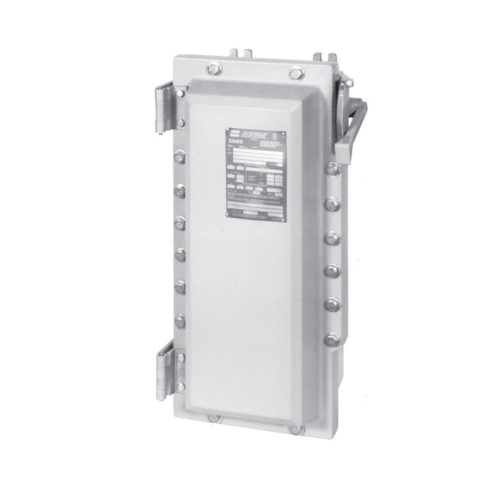

EBMBB FD W30360 Heavy Duty Non-Fusible Disconnect Switch, 600 VAC, 30 A, 25 hp
Sold as: Pack of EACH
Crouse-Hinds series EBM disconnect switches are used to disconnect motor, lighting and other circuits in locations made hazardous by the presence of flammable gases or vapors or ignitable dusts. They also provide disconnect means and short circuit protection (fusible version).
Crouse-Hinds Disconnect Switch, Heavy Duty Non-Fusible, Series: EBM, 600 VAC, 30 A, 25 hp, Handle Actuator, NEMA 3/3R/4/4X Enclosure, Foot Mounting, 26.9 in H x 14.46 in W x 10.25 in D Dimensions, Copper Free Aluminum, Natural
| Actuator Type | : | Handle |
| Dimensions | : | 26.9 in H x 14.46 in W x 10.25 in D |
| Enclosure Type | : | NEMA 3/3R/4/4X |
| Finish | : | Natural |
| Material | : | Copper Free Aluminum |
| Mounting Type | : | Foot |
| Series | : | EBM |
| Type | : | Heavy Duty Non-Fusible |
| Voltage Rating | : | 600 VAC |
| Amperage Rating | : | 30 A |
| Horsepower | : | 25 hp |
