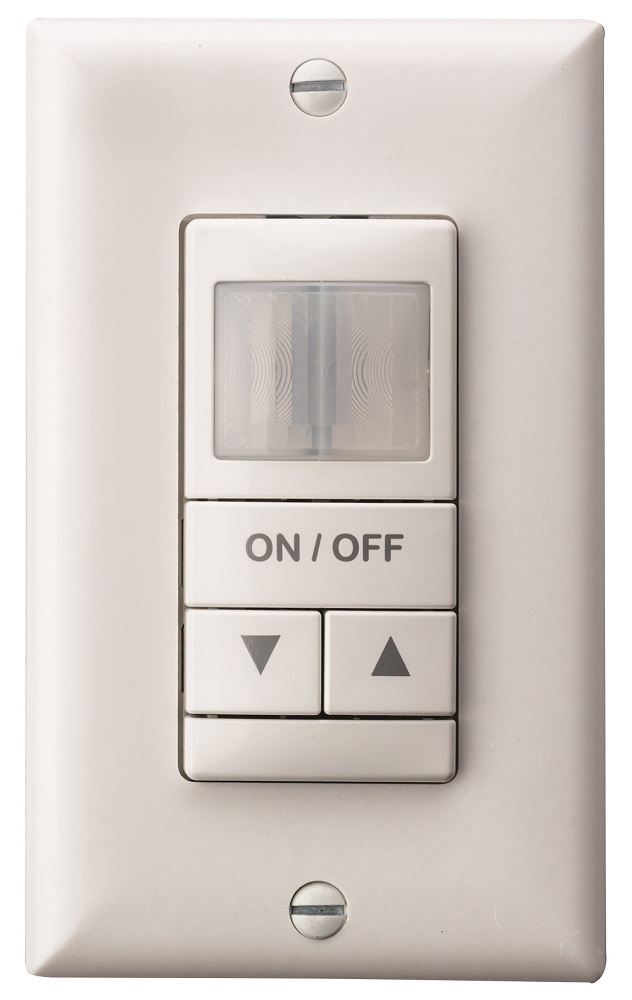

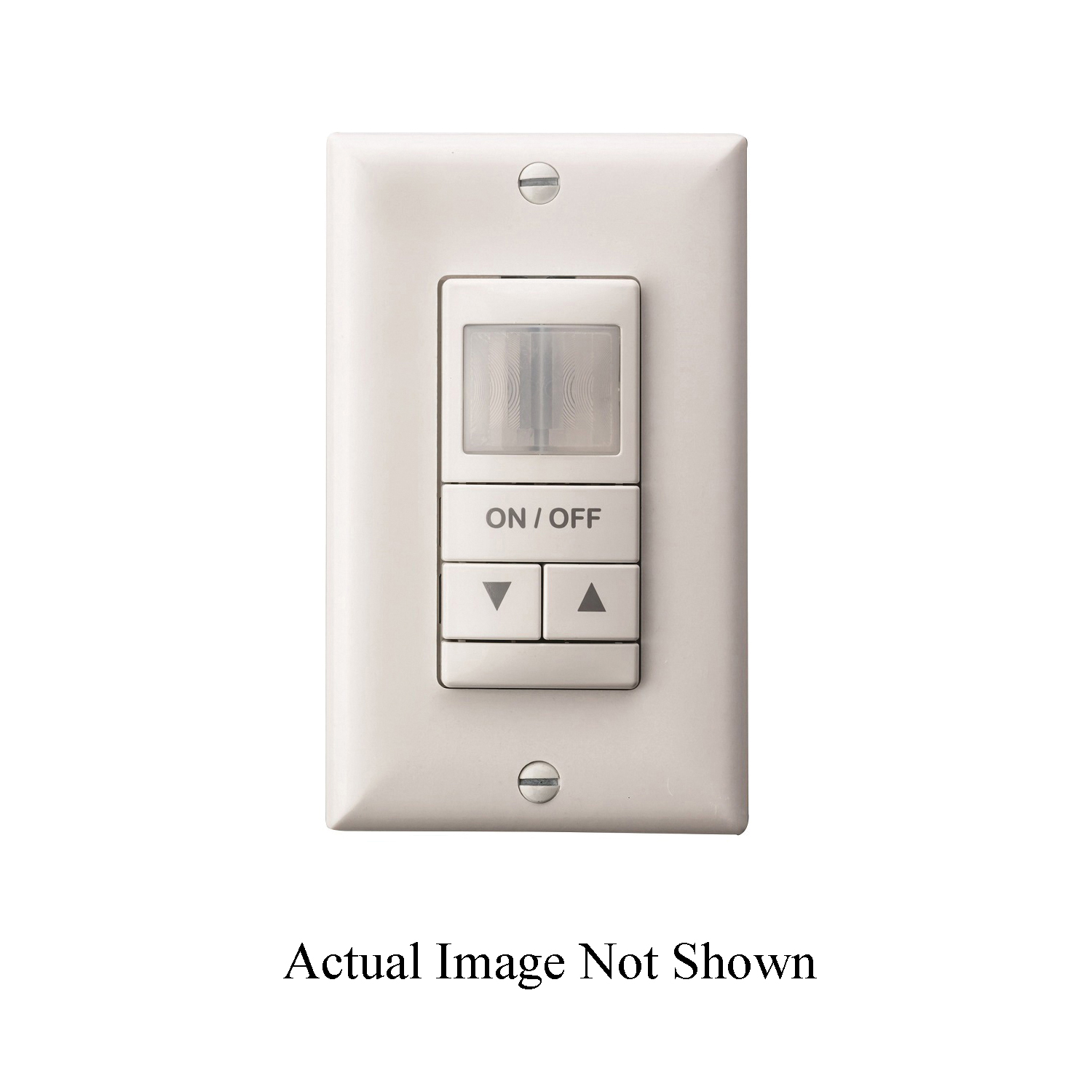

WSX D WH Dimming Wall Switch Occupancy Sensor, 120/277 VAC, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Wall Mount
Sold as: Pack of EACH
The WSX family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX family sensors have a stylish low profile appearance, Soft click buttons, and provide small motion detection upto 20 ft (6.10 m), making them perfect for private offices, private rest rooms, closets, copy rooms, or any other small enclosed space. Additionally, all WSX family sensors have a patent pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however if connection to neutral is required by code, contractors can convert the unit in seconds.
Sensor Switch™ Wall Switch Occupancy Sensor, Dimming, Series: WSX, 120/277 VAC, 1/4 hp Power, Passive Infrared Sensor, 20 ft Coverage, 180 deg Viewing, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, Automatic On Control Output, Wall Mounting, 0 to 60 deg C, White, 2.74 in H x 1.68 in W x 1.63 in D Dimensions
| Color | : | White |
| Connection Type | : | Wired |
| Control Output | : | Automatic On |
| Dimensions | : | 2.74 in H x 1.68 in W x 1.63 in D |
| Lamp Type | : | Fluorescent/Incandescent/LED |
| Material | : | Plastic |
| Power Rating | : | 1/4 hp |
| Response Frequency | : | 50/60 Hz |
| Series | : | WSX |
| Temperature Rating | : | 0 to 60 deg C |
| Type | : | Dimming |
| Voltage Rating | : | 120/277 VAC |
| Sensor Type | : | Passive Infrared |
| Coverage | : | 20 ft |
| Viewing Angle | : | 180 deg |
| Mounting Type | : | Wall |
