Non Stock

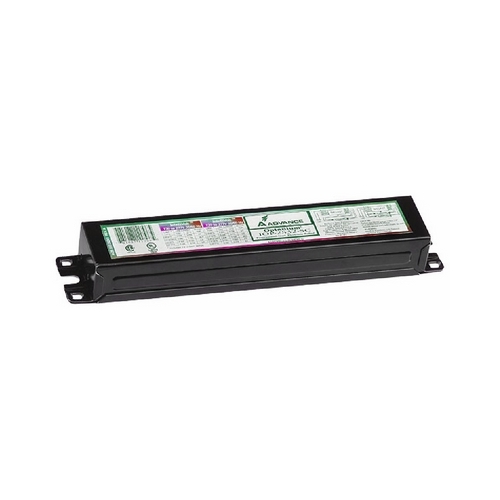

IOPA1P32N35M Electronic Fluorescent Ballast, OPTANIUM T8 Lamp, 32 W Lamp, 120 to 277 VAC, Instant Rapid, 0.91 Ballast Factor, 107870
| Branch Name | Available |
|---|
Sold as: Pack of EACH
Advance, IOPA1P32N35M, Instant/Rapid Start Electronic Fluorescent Ballast, T8 Lamp, 32 W Lamp, 28 W Wattage, 120 to 277 VAC, 0.11 to 0.25 A, 50/60 Hz Frequency, Instant/Rapid Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 10 %, Power Factor: 0.98, 2 Lamps, Ballast Factor: 0.91, 70 deg C, Metal, 9.5 in L x 1.3 in W x 1 in H Dimensions
| Amperage Rating | : | 0.11 to 0.25 A |
| Dimensions | : | 9.5 in L x 1.3 in W x 1 in H |
| Frequency Rating | : | 50/60 Hz |
| Material | : | Metal |
| Minimum Starting Temperature | : | -20 deg F |
| Number of Lamps | : | 2 |
| Power Factor | : | 0.98 |
| Temperature Range | : | 70 deg C |
| Total Harmonic Distortion | : | 10 % |
| Wattage | : | 28 W |
| Lamp Type | : | T8 |
| Lamp Wattage | : | 32 W |
| Voltage Rating | : | 120 to 277 VAC |
| Start Type | : | Instant/Rapid |
| Ballast Factor | : | 0.91 |
Specification Sheet
