Non Stock

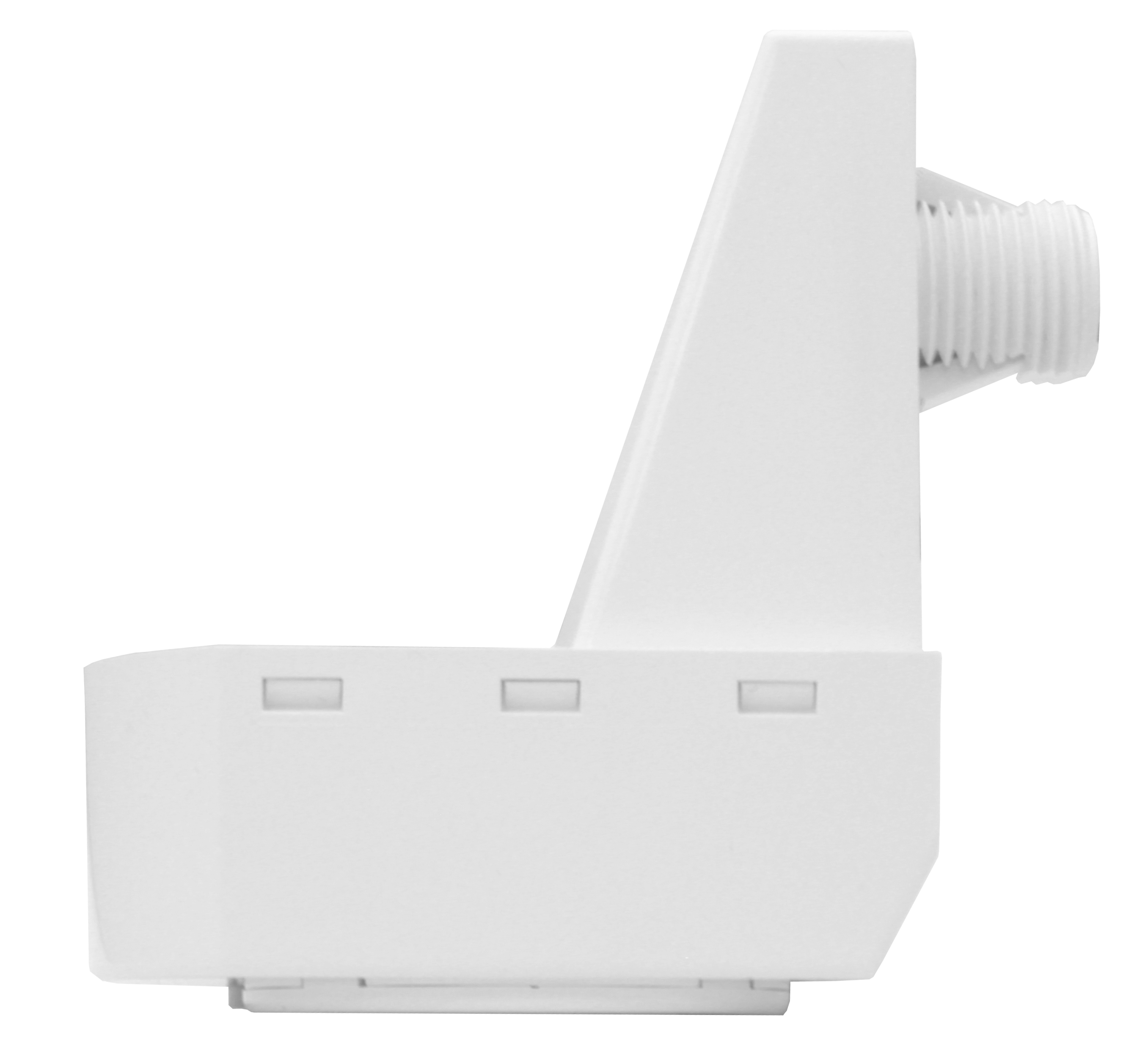

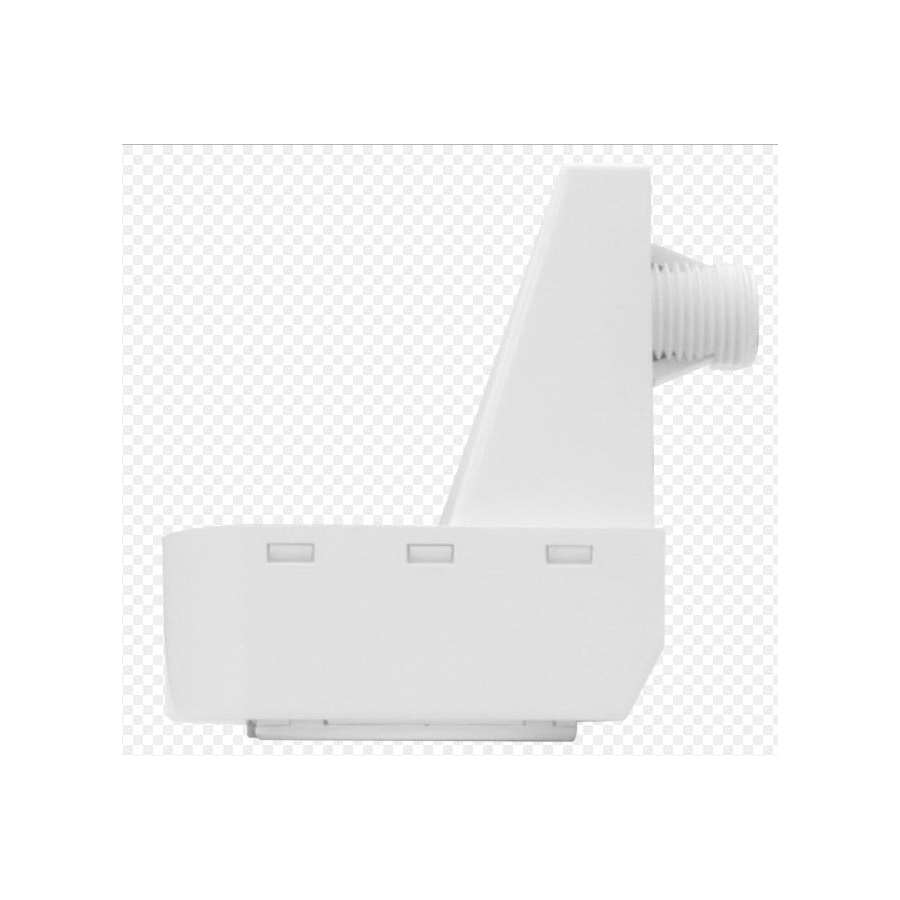

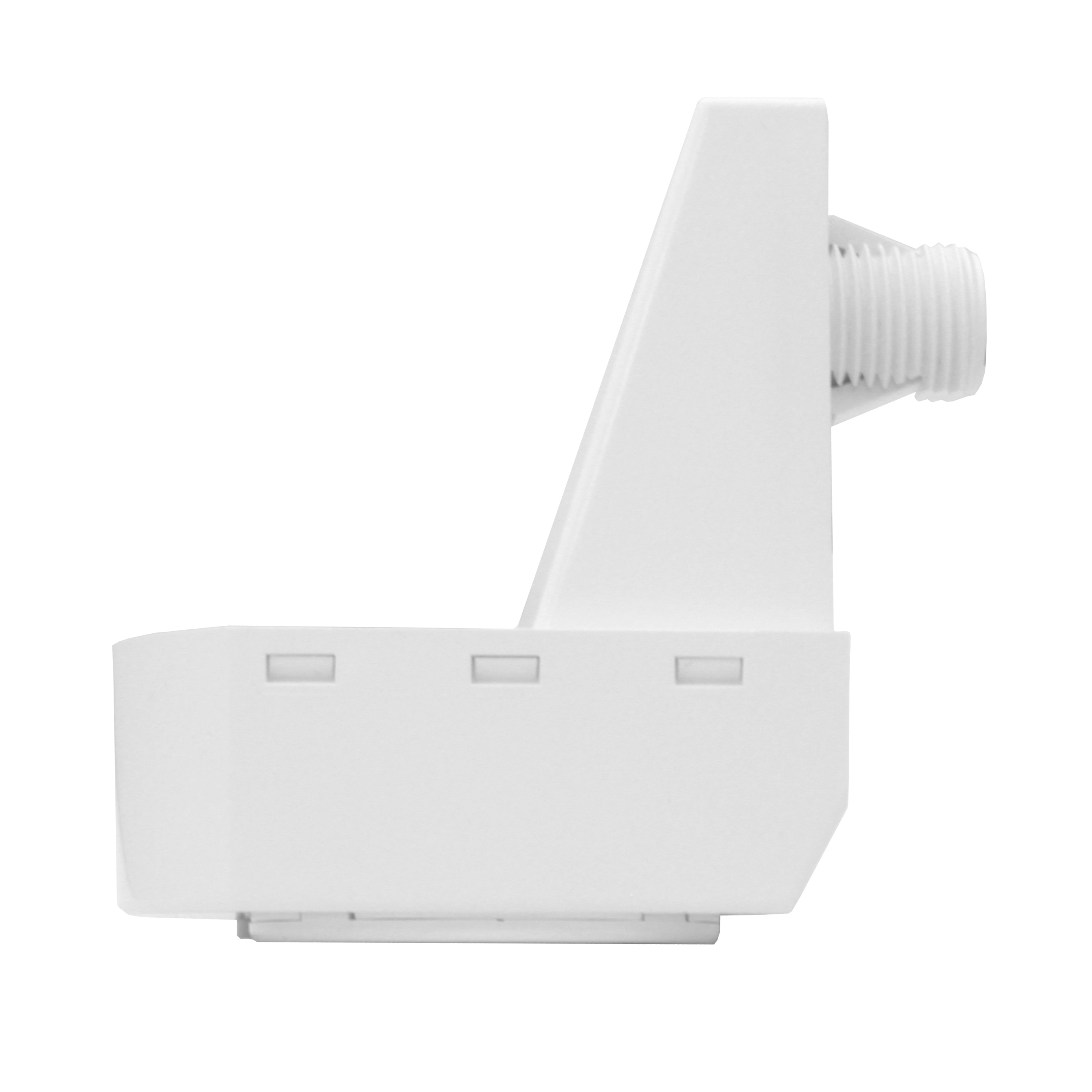

LSXR 610 HVOLT Occupancy Sensor, 347 to 480 VAC, Passive Infrared Sensor, 360 deg Viewing, Fixture Mount
Sold as: Pack of EACH
The LSXR family of fixture mount occupancy sensors provides reliable and versatile solutions for commercial and industrial lighting control applications. All LSXR family sensors utilize passive infrared (PIR) detection and feature interchangeable lenses, providing flexibility for multiple mounting height and coverage pattern requirements. Available options include dual relays, HVOLT powering, and an integrated switching/dimming photocell. All LSXR family sensors utilize 100% digital passive infrared (PIR) detection and power from/switch line voltage. Available options include dual relays, HVOLT powering, and an integrated switching/dimming photocell.
Sensor Switch™ Occupancy Sensor, Series: LSXR, 347 to 480 VAC, 1/4 hp Power, Passive Infrared Sensor, 360 deg Viewing, 10 min Time Delay, Fluorescent/LED Lamp, IP66 Enclosure, Fixture Mounting, -10 to 60 deg C, 3-3/4 in H x 2-1/2 in W x 4 in D Dimensions
| Color | : | White |
| Connection Type | : | Wired |
| Dimensions | : | 3-3/4 in H x 2-1/2 in W x 4 in D |
| Enclosure Type | : | IP66 |
| Lamp Type | : | Fluorescent/LED |
| Material | : | Plastic |
| Power Rating | : | 1/4 hp |
| Series | : | LSXR |
| Temperature Rating | : | -10 to 60 deg C |
| Time Delay | : | 10 min |
| Type | : | Line Voltage |
| Voltage Rating | : | 347 to 480 VAC |
| Sensor Type | : | Passive Infrared |
| Viewing Angle | : | 360 deg |
| Mounting Type | : | Fixture |
