Non Stock
CG90-6250 Liquidtight Strain Relief Connector, 1/2 in Trade, 5/8 to 3/4 in Cable Openings, Cast Aluminum
| Branch Name | Available |
|---|
Appleton® liquidtight strain relief cord and cable connectors are available in straight or 90 deg, aluminum or steel construction to meet the requirements of rugged service on all types of equipment and in all non-hazardous areas. They provide a liquidtight and strain relief termination for flexible type neoprene, hypalon, and PVC jacketed power or control cord and cable. Ideal for use in wet or dry locations, they seal electrical connections against dust and dirt, oil, water or other atmosphere containing moisture.
Appleton® Liquidtight Strain Relief Connector, 1/2 in, Cable Openings: 5/8 to 3/4 in, Threaded, 90 deg, Cast Aluminum, Orange, 1-1/4 in OD
| Angle | : | 90 deg |
| Color | : | Orange |
| Connection Type | : | Threaded |
| Dimensions | : | 1-1/4 in OD |
| Trade Size | : | 1/2 in |
| Cable Openings | : | 5/8 to 3/4 in |
| Material | : | Cast Aluminum |

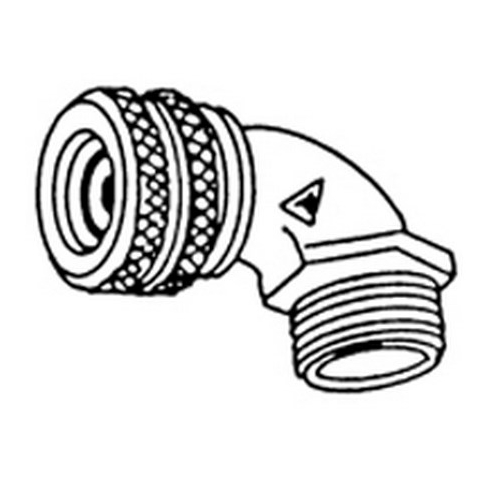

Line Drawing
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_059200071855f859e34319107e662325ded7d1d6e0d66e7576323d2783be5f8f.jpeg
Specification Sheet
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_e599e74c74bd306364be34afa59fc1d4dbb068b39e0d29f3fdd0f9183da2d2e5.pdf
Warranty Information
https://assets.unilogcorp.com/2/ITEM/DOC/IDW_DOCUMENT_9f9304b9ff108320f0a678d90d49aa888e15789c155dc2ffb0a06c1bd24ddf68.pdf
Print
