The WSX family of wall switch occupancy sensors provides simple and cost effective solutions for commercial and residential lighting control applications. All WSX family sensors have a stylish low profile appearance, soft-click buttons and provide small motion detection up to 20 ft (6.1 m), making them perfect for private offices, private rest rooms, closets, copy rooms or any other small enclosed space. Additionally, all WSX family sensors have a patent pending wiring method that enables them to function either with or without a neutral connection. WSX units come pre-configured for wiring without a neutral, however, if connection to neutral is required by code, contractors can convert the unit in seconds. All WSX family sensors utilize 100% digital passive infrared (PIR) detection. Dual technology (PDT option) versions add Microphonics™ detection and are recommended for offices and rooms with obstructions. Additional versions include units with dual relays perfect for bi-level applications and units with an integrated night light perfect for restrooms and residential applications.

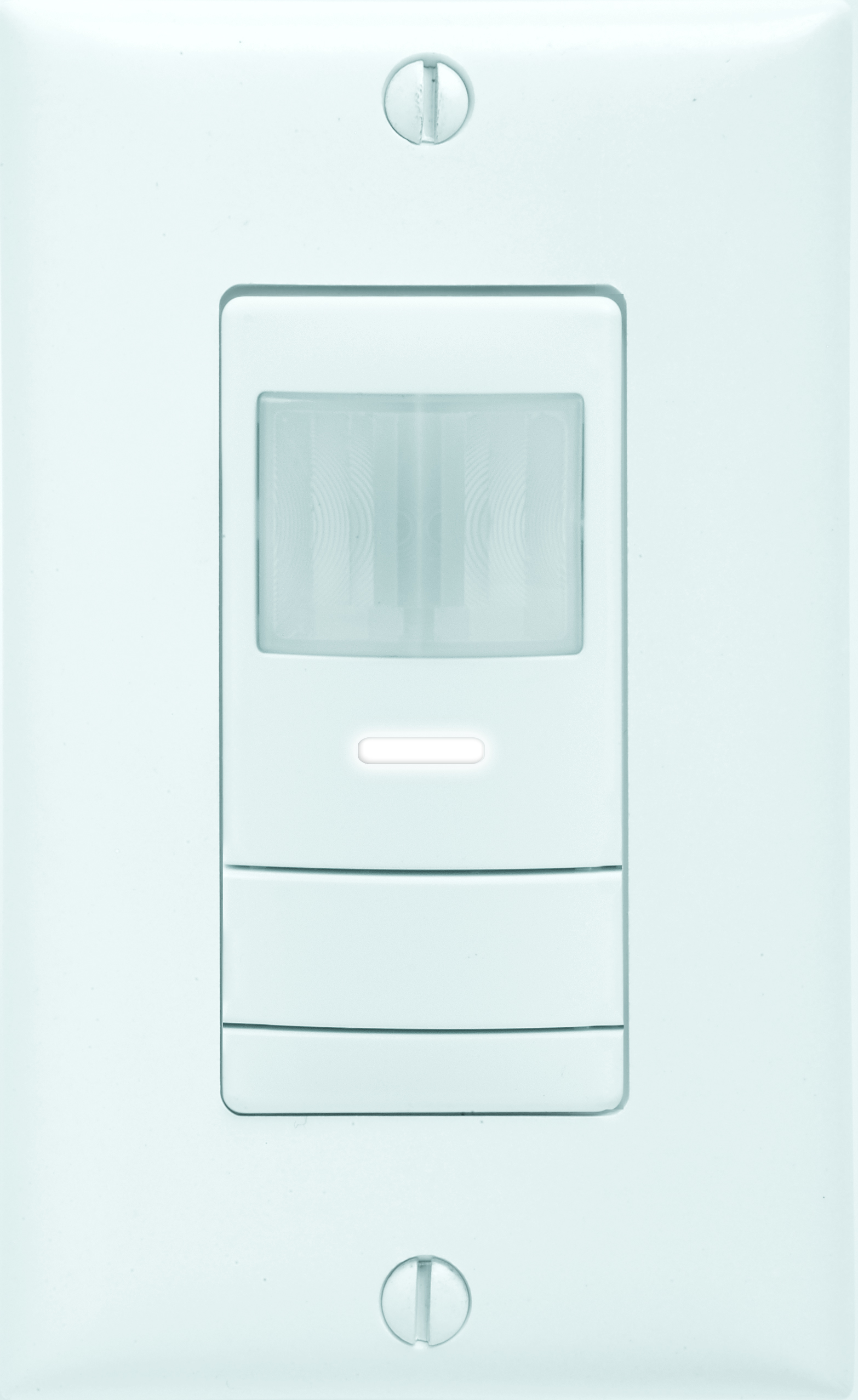

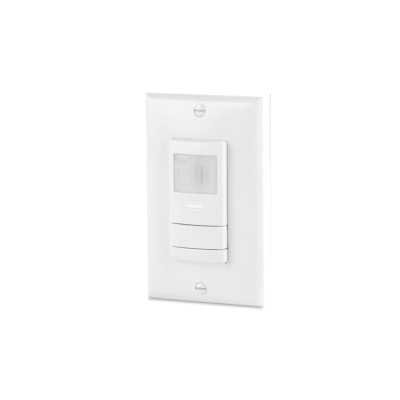

Sensor Switch™ Sensor Switch® Wall Switch Occupancy Sensor, Single Relay, Series: WSX, 347 VAC, 1500 W, PIR/Microphonics™Dual Technology Sensor, 20 to 36 ft Coverage, 180 deg Viewing, 30 s to 20 min Delay, Fluorescent/Incandescent/LED Lamp, 50/60 Hz Response, 100% Accuracy, Wall Mount, 0 to 60 deg C, Plastic, White, 2.74 in H x 1.68 in W x 1.63 in D

• Compatible with LEDs, electronic and magnetic ballasts, CFLs and incandescent
• 100% passive detection, no potential for interference with other building systems
• Small motion detection up to 20 ft
• Push button programmable without removing cover plate - adjustable time delays and operating modes
• Dual technology (PDT) utilizes PIR/Microphonics™ detection (patented)
• Self-grounding mounting strap
• Device accommodates powering over ground or neutral connection (patent pending)
• Ultra low current leakage (<0.5 mA) when connected via ground
• Fully meets NEC 2011 section 404.2C neutral requirements, no current leakage to ground when connected to neutral
• Line power and load wires are interchangeable impossible to wire backwards (patented)
• Integrated photocell (disabled by default) prevents light from turning on if sufficient daylight is present - not available in nightlight versions
• Vandal resistant lens
• Single gang switch box mounting
• 1/4 hp motor load
• Auto on (default) or vacancy operating mode
• Networkable control
• Gloss finish
• Rectangular in shape
• For indoor environment
