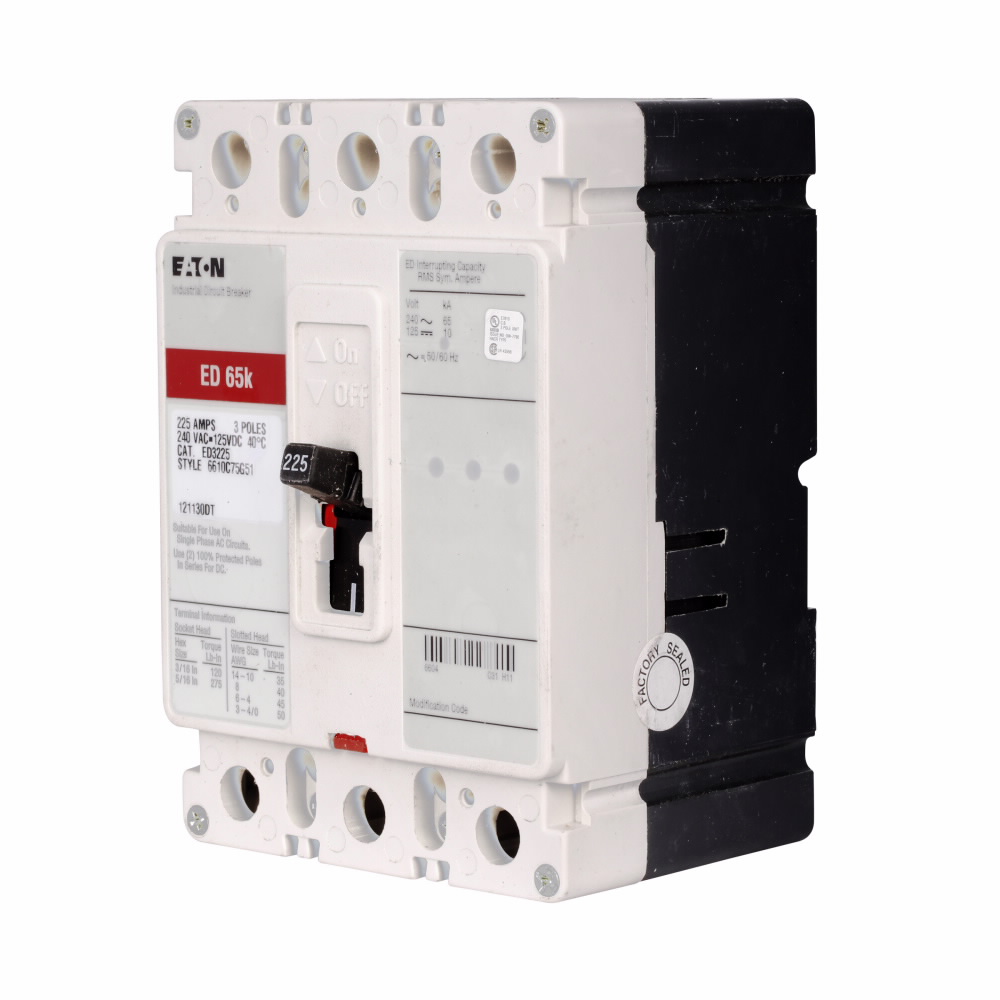

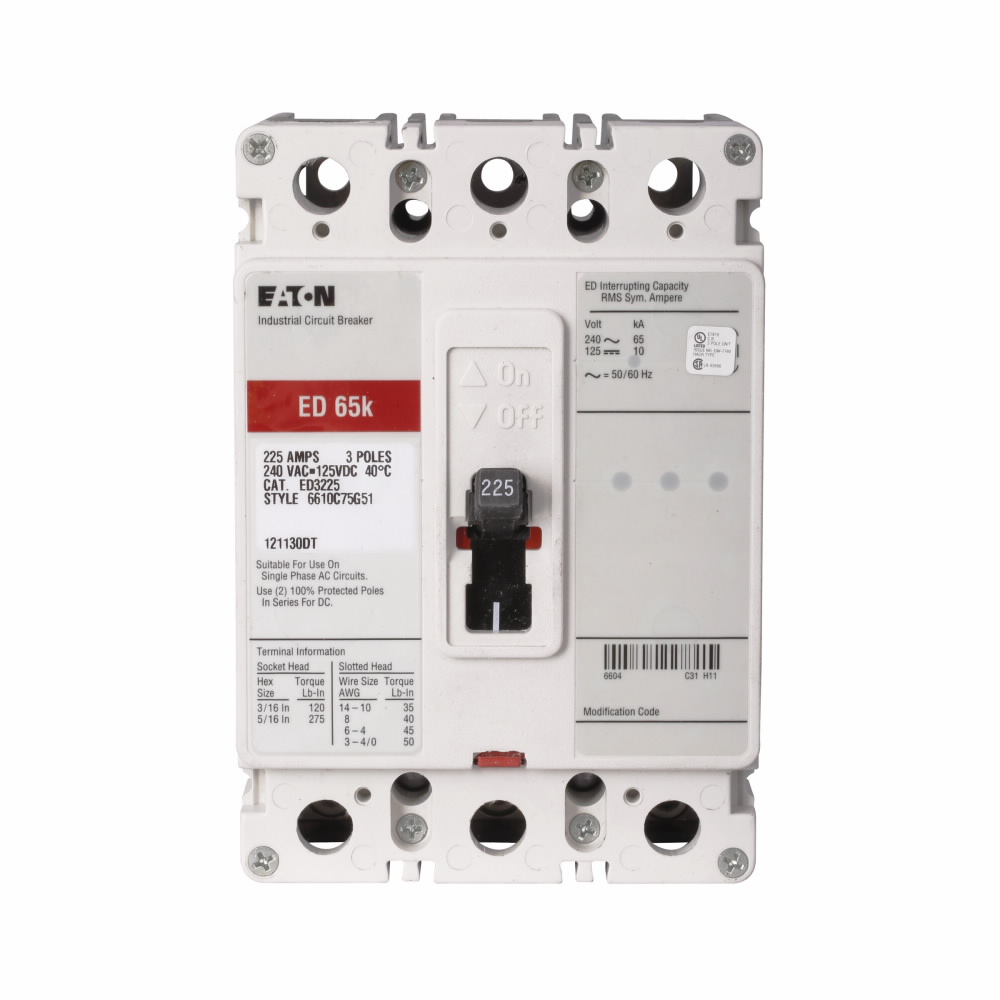

ED3125 C Series Type ED Molded Case Circuit Breaker, 240 VAC, 125 VDC, 125 A, 65 kA Interrupt, 3 Poles, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip
| Branch Name | Available |
|---|
EATON series C molded case circuit breakers are used in panelboard, switchboard, motor control center and busway applications for dependable branch circuit protection. They have proven user acceptance for over 20 years and meet or exceed North American standards. Available for systems up to 600 VAC/250 VDC with current ratings up to 2500 A.
EATON Molded Case Circuit Breaker, Type ED, Series: C Series, 240 VAC, 125 VDC, 125 A, 50/60 Hz Frequency, 65 kA Interrupt, F Frame, Fixed Thermal/Fixed Magnetic/Non-Interchangeable Trip, 3 Pole, 3 ph, Handle Actuator, Load Connection, NEMA AB1-1993 Enclosure, Panel Mounting, 40 deg C, 3.38 in L x 4.13 in W x 4.13 in H Dimensions
| Actuator Type | : | Handle |
| Connection Type | : | Load |
| Dimensions | : | 3.38 in L x 4.13 in W x 4.13 in H |
| Enclosure Type | : | NEMA AB1-1993 |
| Frame | : | F |
| Frequency Rating | : | 50/60 Hz |
| Mounting Type | : | Panel |
| Phase | : | 3 |
| Series | : | C Series |
| Temperature Rating | : | 40 deg C |
| Type | : | Type ED |
| Voltage Rating | : | 240 VAC, 125 VDC |
| Amperage Rating | : | 125 A |
| Interrupt Rating | : | 65 kA |
| Number of Poles | : | 3 |
| Trip Type | : | Fixed Thermal/Fixed Magnetic/Non-Interchangeable |
