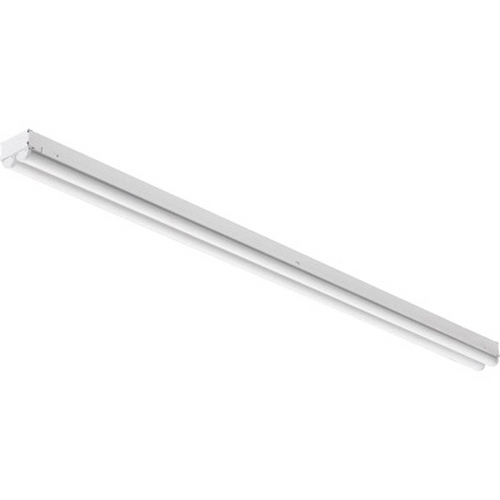

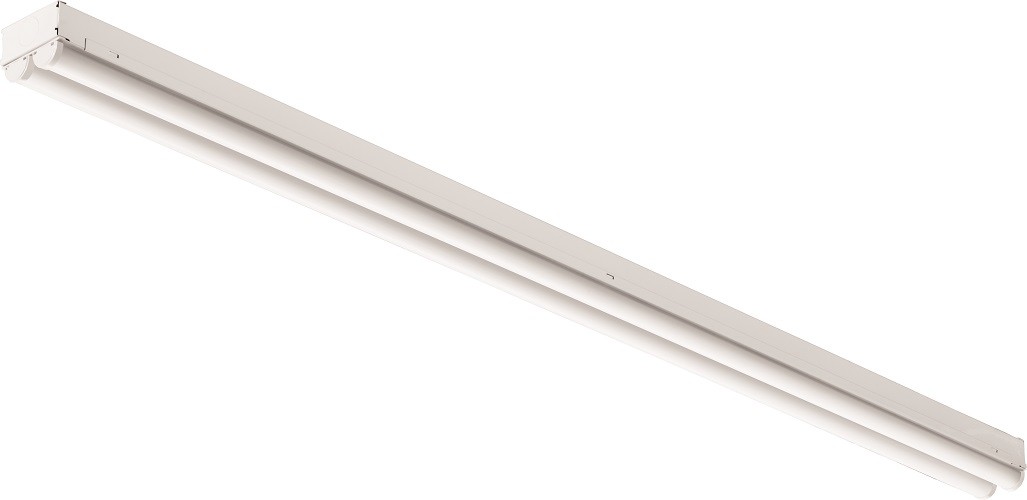

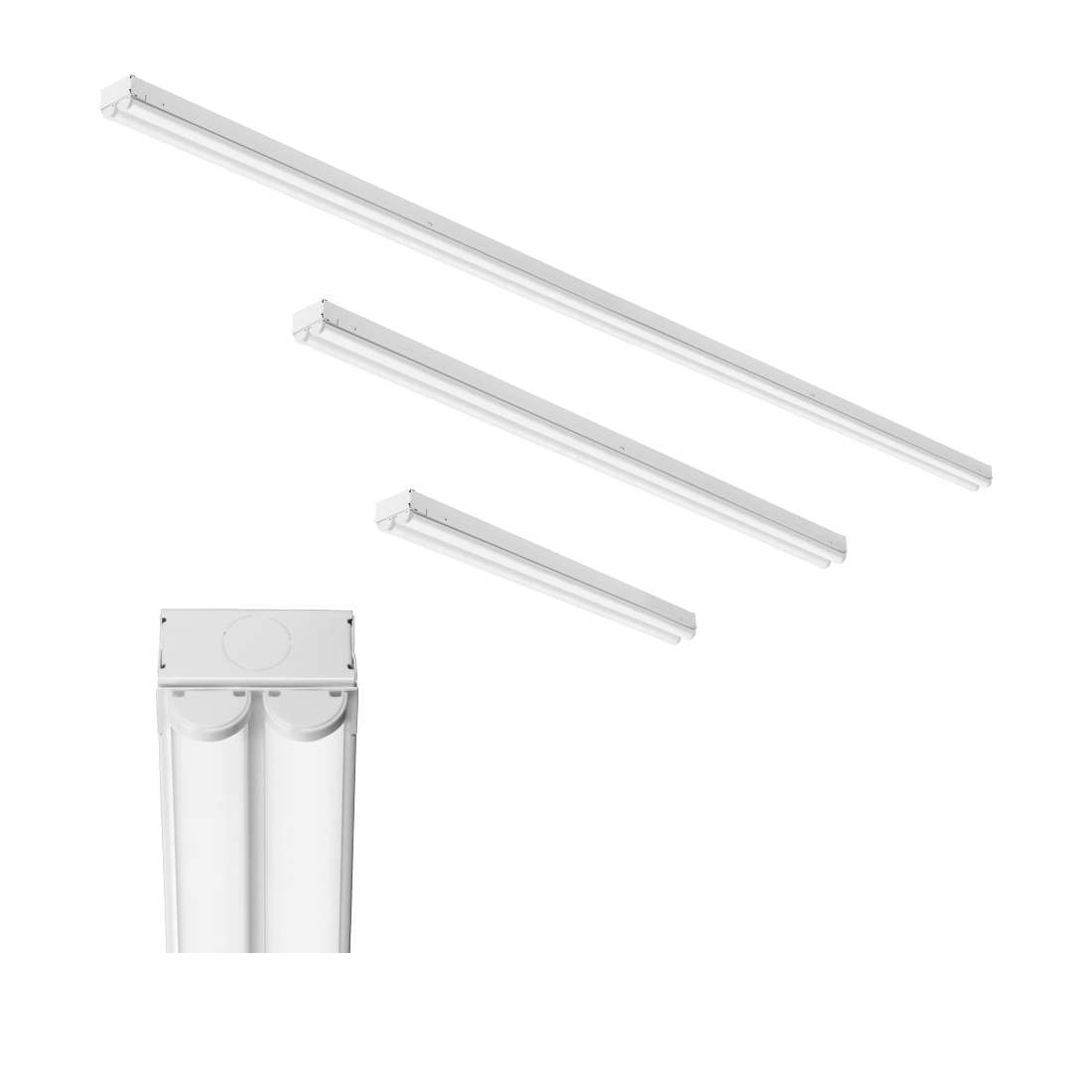

CDS L48 MVOLT DM 40K 80CRI WH CDS Series Rectangular Strip Light Fixture, Static LED Lamp, 38 W Fixture, 120 to 277 VAC, High Gloss Baked White Enamel Housing
| Branch Name | Available |
|---|
Sold as: Pack of EACH
The CDS LED strip light is designed and priced to be a one for one replacement of 1, 2 or 4 lamp fluorescent strip lights with up to 9000 Lumens for your retail, warehouse and office applications. Easy to install, the CDS LED can be surface or suspension mounted. An alignment bracket comes with each fixture to keep your continuous row absolutely straight.
Lithonia Lighting® Strip Light Fixture, Rectangular, Series: CDS Series, 120 to 277 VAC, 38 W Fixture, Static LED Lamp, 111 Lumens/W Light Output, White Light, 4000 K Color Temperature, 80 CRI, Diffused Polycarbonate Lens, 4211 Lumens, Surface/Suspended Mounting, Steel Housing Material, High Gloss Baked White Enamel Housing Finish, 48 in L x 2.62 in W x 2.13 in H Dimensions
| Ballast Type | : | 0 to 10 VDC Dimming Driver |
| Color Rendering Index (CRI) | : | 80 |
| Color Temperature | : | 4000 K |
| Dimensions | : | 48 in L x 2.62 in W x 2.13 in H |
| Housing Material | : | Steel |
| Lamp Wattage | : | 38 W |
| Lens Type | : | Diffused Polycarbonate |
| Light Color | : | White |
| Light Output | : | 111 Lumens/W |
| Lumens | : | 4211 Lumens |
| Mounting Type | : | Surface/Suspended |
| Series | : | CDS Series |
| Type | : | Rectangular |
| Lamp Type | : | Static LED |
| Fixture Wattage | : | 38 W |
| Voltage Rating | : | 120 to 277 VAC |
| Housing Finish | : | High Gloss Baked White Enamel |
