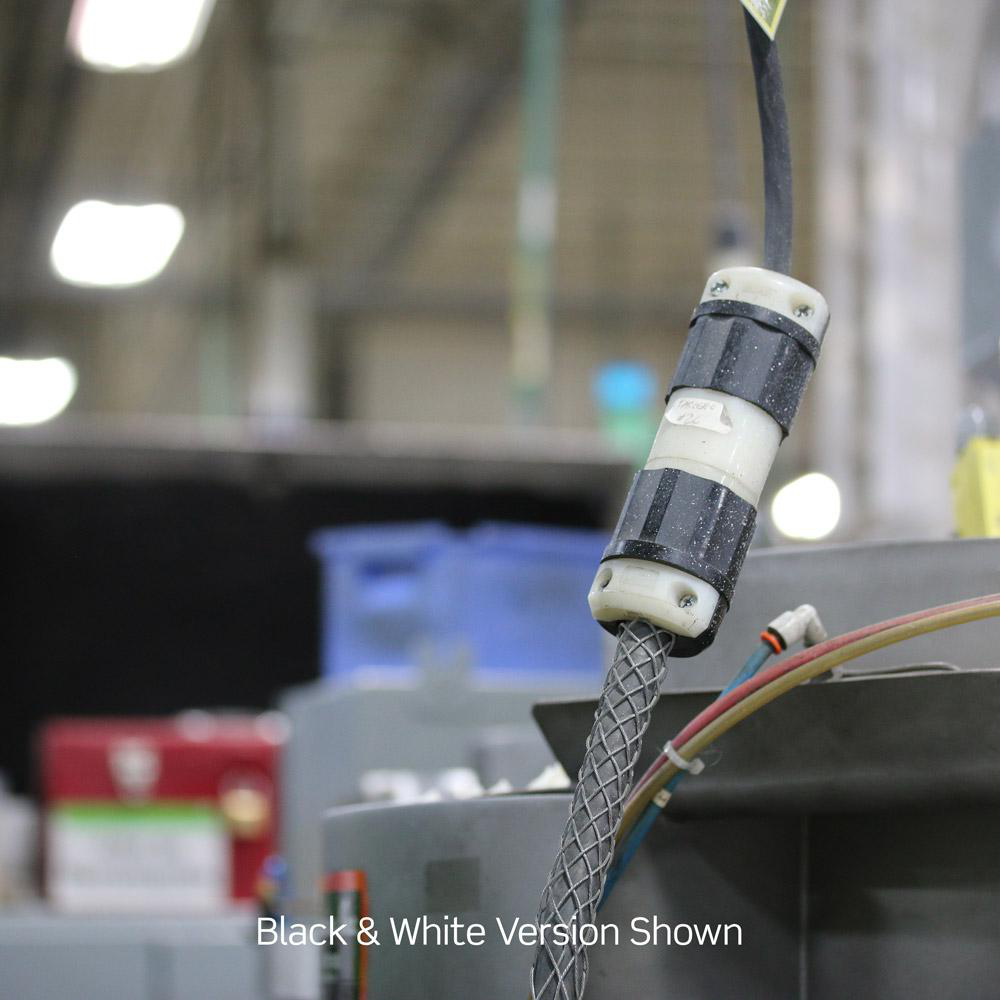

Image thumbnail 1
Image thumbnail 2

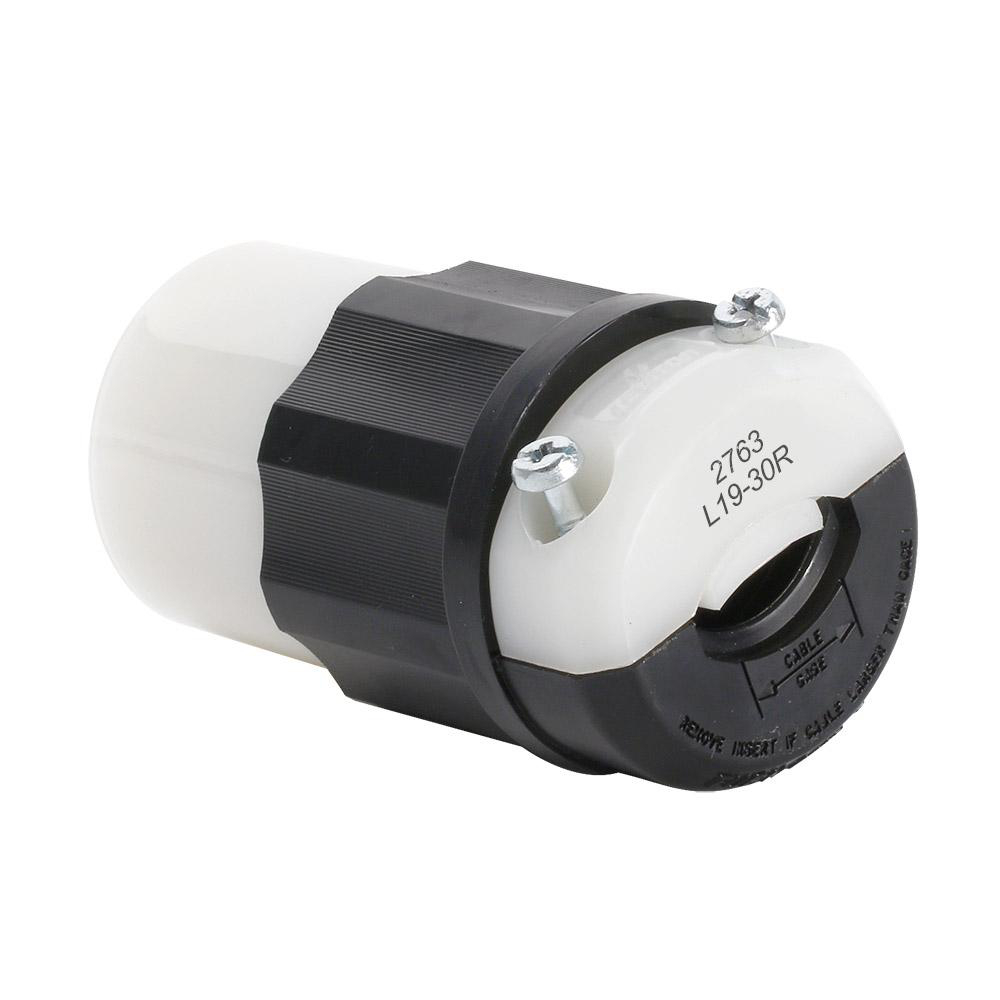

Image thumbnail 3
To:
CC:

Locking Connector, 30 Amp, 277/480 Volt, Industrial Grade, Black & White

Manufacturer: Leviton Manufacturing | Catalog # 2763 | Electrozad South Part # 99574
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
30 Amp, 277/480 Volt 3-Phase Y, NEMA L19-30R, 4P, 4W, Locking Connector, Industrial Grade, Non-Grounding - BLACK-WHITE

Technical Information

Amperage
30 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Impact Modified Nylon
Connection Type
Screw Terminal
Contact Material
Solid Brass
Cord Type
S,SO,SOO,ST,STO,STOO,STOW-A,STW,STW-A
Device Type
Locking Connector
Dielectric
2000 V
Flamability Class
Rated HB Or Better UL94
Grounding
Non-Grounding
Horsepower
10 hp
Material
Impact Modified Nylon
Mounting Type
Cable
NEMA
WD-6
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Material
Brass
Screw Type
Steel,Zinc-Plated
Size
2.22 Diameter X 3.78 L IN
Standard
ANSI C-73
TC Connection
Screw Terminal
Temperature Rise
200 %
Terminal Size
18-10 AWG
Torque
10 lb-in
Type
Locking Connector
Voltage
277/480 V
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
LOCKING DEVICES

General Product Info

12-Digit UPC
078477808498
Color
Black,White
Environment
Dry
Environmental Conditions
Operating Temperature Range (-40 To 60) °C
GTIN
00078477808498

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Country of Origin
Mexico
