30 Amp, 277/480 Volt, Flush Mount Locking Receptacle, Industrial Grade

Manufacturer: Leviton Manufacturing | Catalog # 2760 | Electrozad South Part # 99573
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet

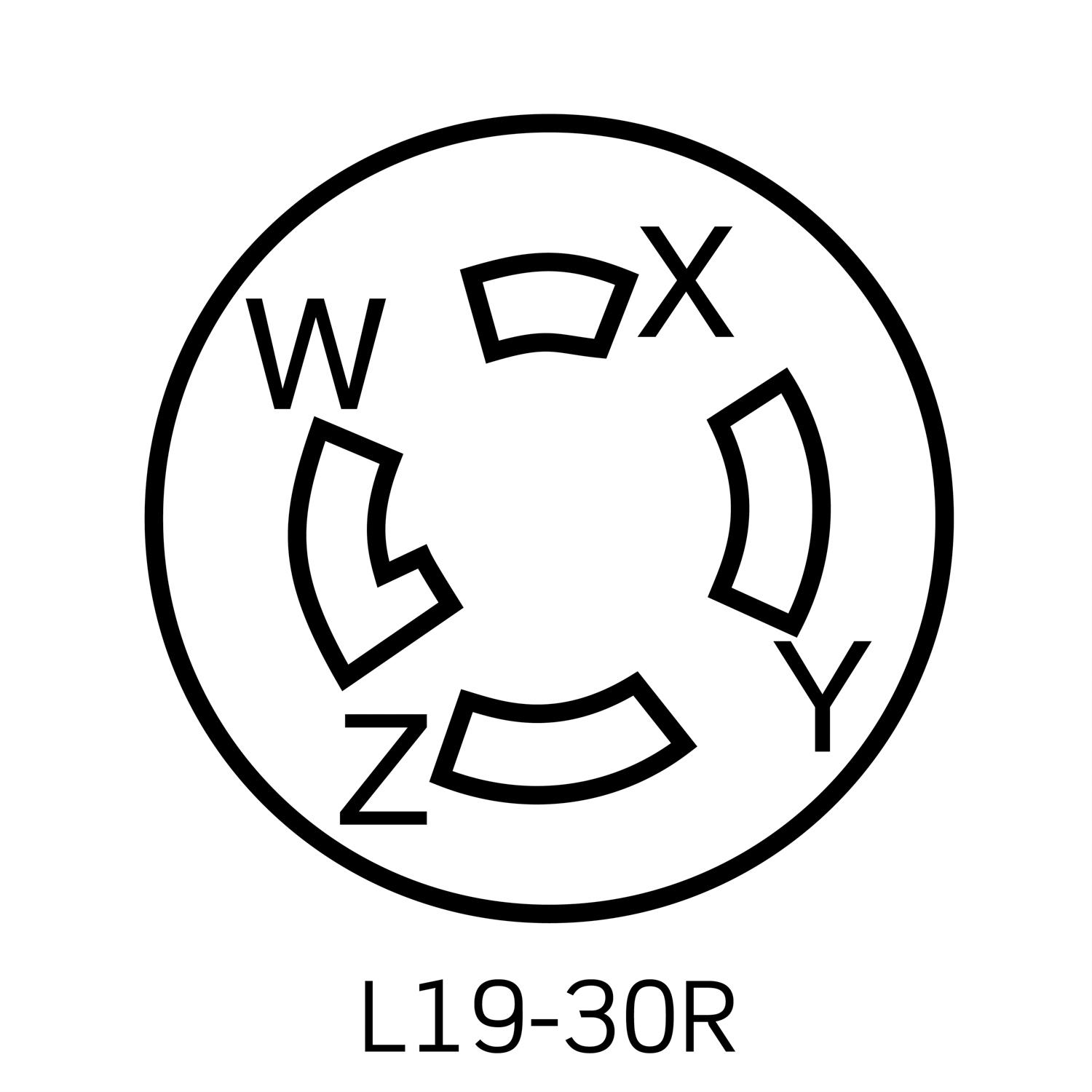

30 Amp, 277/480 Volt 3-Phase Y, NEMA L19-30R, 4P, 4W, Flush Mtg Locking Receptacle,Industrial Grade, Non-Grounding, V-0-MAX - BLACK

Technical Information

Amperage
30 A
Applications
Industrial
Base Material
Valox,Valox
Body Material
Nylon
Connection Type
Back Wired,Side Wired
Contact Material
Brass,Brass
Cover Material
Valox
Device Type
Locking Receptacle
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Enclosure
WD-6
Face Material
Ultramid
Flamability Class
Rated V-0 Per UL 94
Grounding
Non-Grounding
Horsepower
10 hp
Material
Nickel-Plated Brass
Mounting Type
Box
NEMA
WD-1
Number of Phases
3
Number of Poles
4
Number of Wires
4
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Rating
UL 498
Screw Material
Brass,Brass,Chromated Brass,Chromated Brass
Screw Size
10-32,8-32
Size
3.63 H x 1.69 W x 1.31 D IN
Standard
ANSI C-73,UL
TC Connection
Back Wired;Side Wired
Temperature Rating
-40 To 60 degrees C
Temperature Rise
200 %
Terminal Size
14-8 AWG
Termination Type
Back Wire,Side Wire
Type
Flush Mount Locking Receptacle
Voltage
277/480 V
Wire Count
4
Wire Size
14-8 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Locking Devices

General Product Info

12-Digit UPC
078477046111
Color
Black
Environment
Corrosive
Environmental Conditions
Flammability (Rated V-0 Per UL94),Flammability (Rated V-2 per UL94)
GTIN
00078477046111

Dimensions

Warranty Length
Lifetime Limited

Certifications & Compliance

Certifications
UL
Country of Origin
Mexico
CSA
C22.2 No. 42
