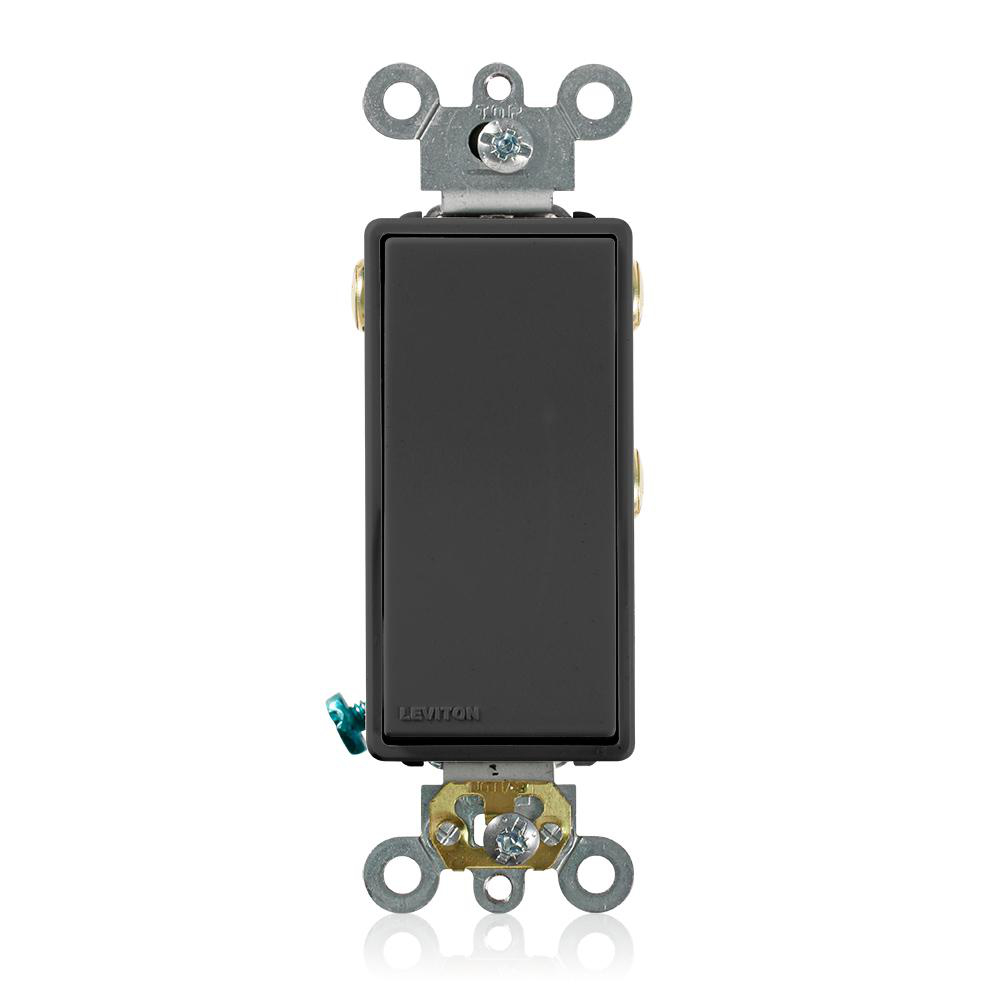

Switch Decora commercial SPDT 120/277V 15A black

Manufacturer: Leviton Manufacturing | Catalog # 5657-2E | Electrozad South Part # 99379
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
Decora Plus™ maintained contact switch features Full rated current capacity with tungsten, fluorescent or resistive loads. Wrap-around heavy-gauge strap with locking tabs for added strength. Back and side-wiring terminals accept both solid and stranded wire to ease installation.

Technical Information

Action
SPDT
Actuator
Rocker
Amperage
12 A
Applications
Commercial
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Configuration
SPDT
Contact Rating
120/277 V
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1/2 hp
Material
Thermoplastic, Steel Strap
Max Current
12 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
1
Operating Temperature
-40 degrees C
Power Rating
1/2 hp
Size
46 H x 1.30 W IN
Standard
ANSI C-73
TC Connection
Back and Side Wired
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
Commercial Specification Grade, Self-Grounding
Voltage
120/277 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477525814
Color
Black
Environmental Conditions
UL 94 V-2 Flammability
GTIN
00078477525814

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Country of Origin
Mexico
