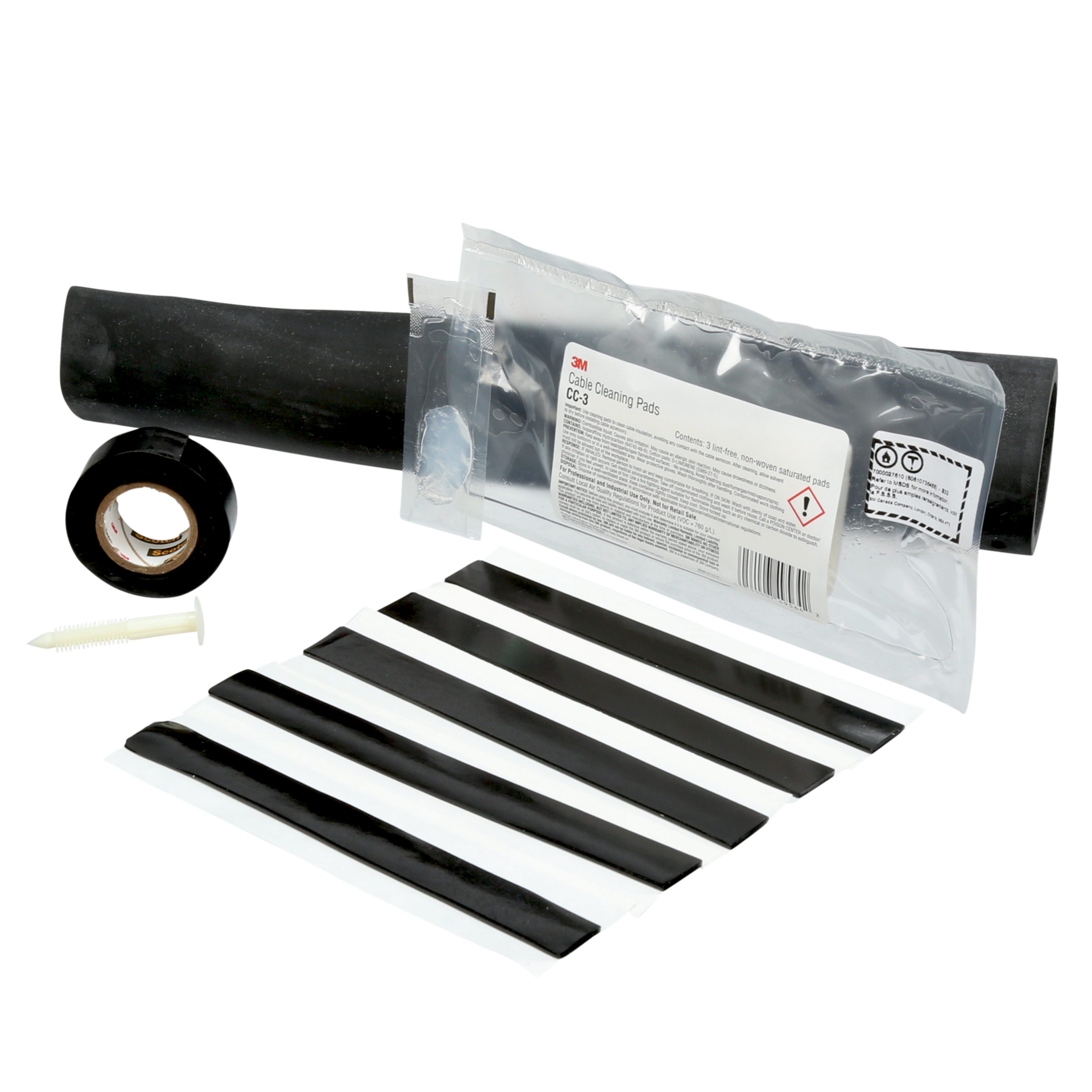

Image thumbnail 1

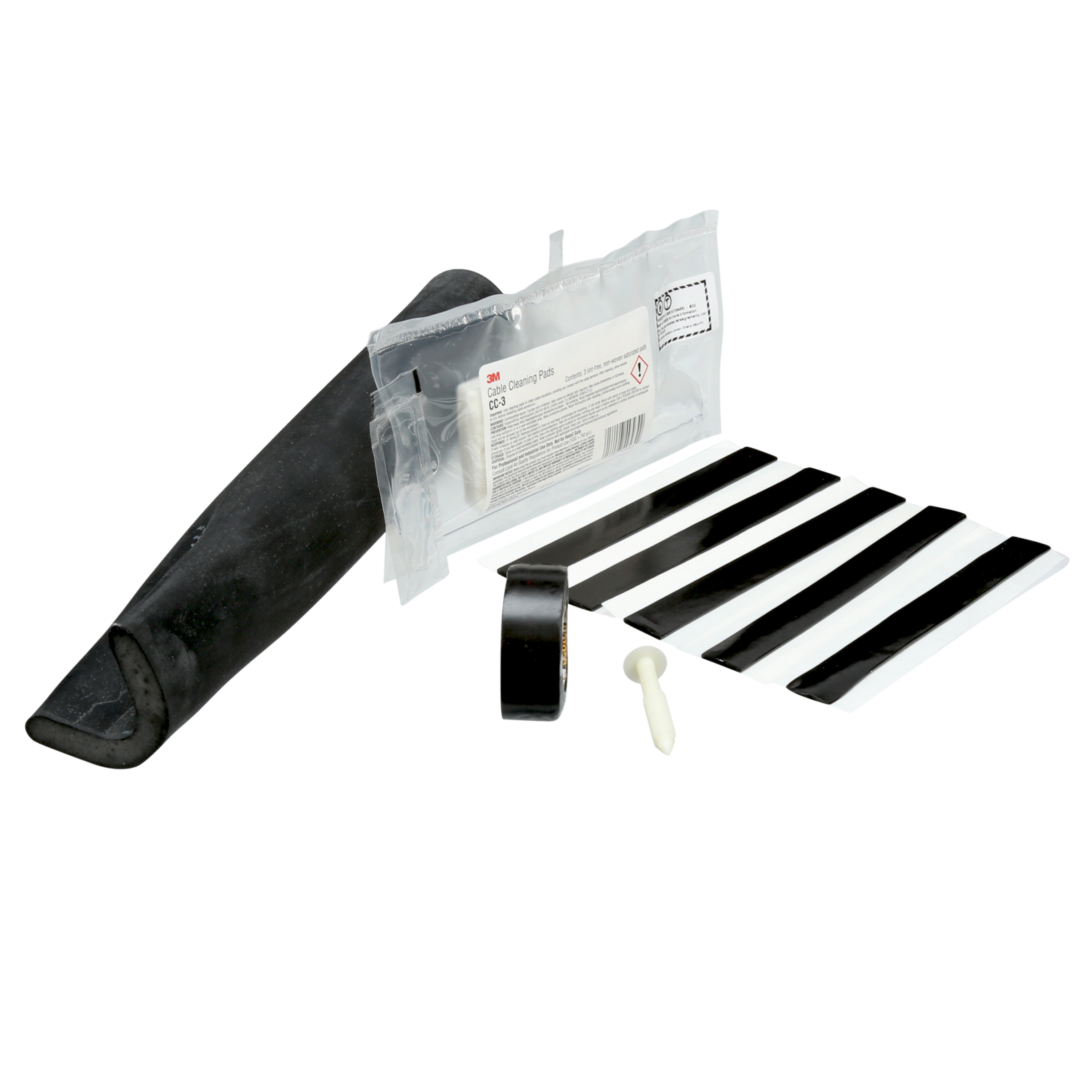

Image thumbnail 2

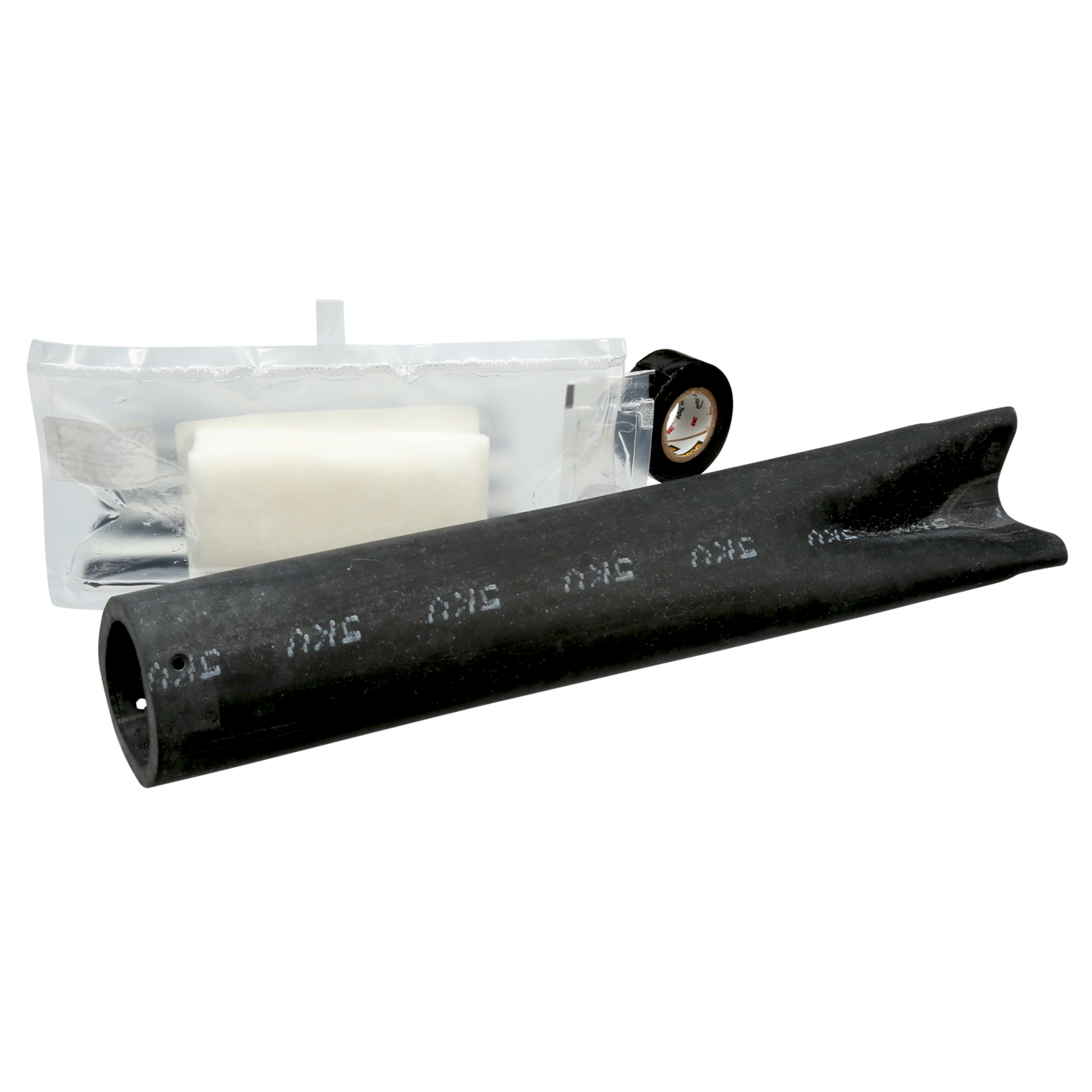

Image thumbnail 3

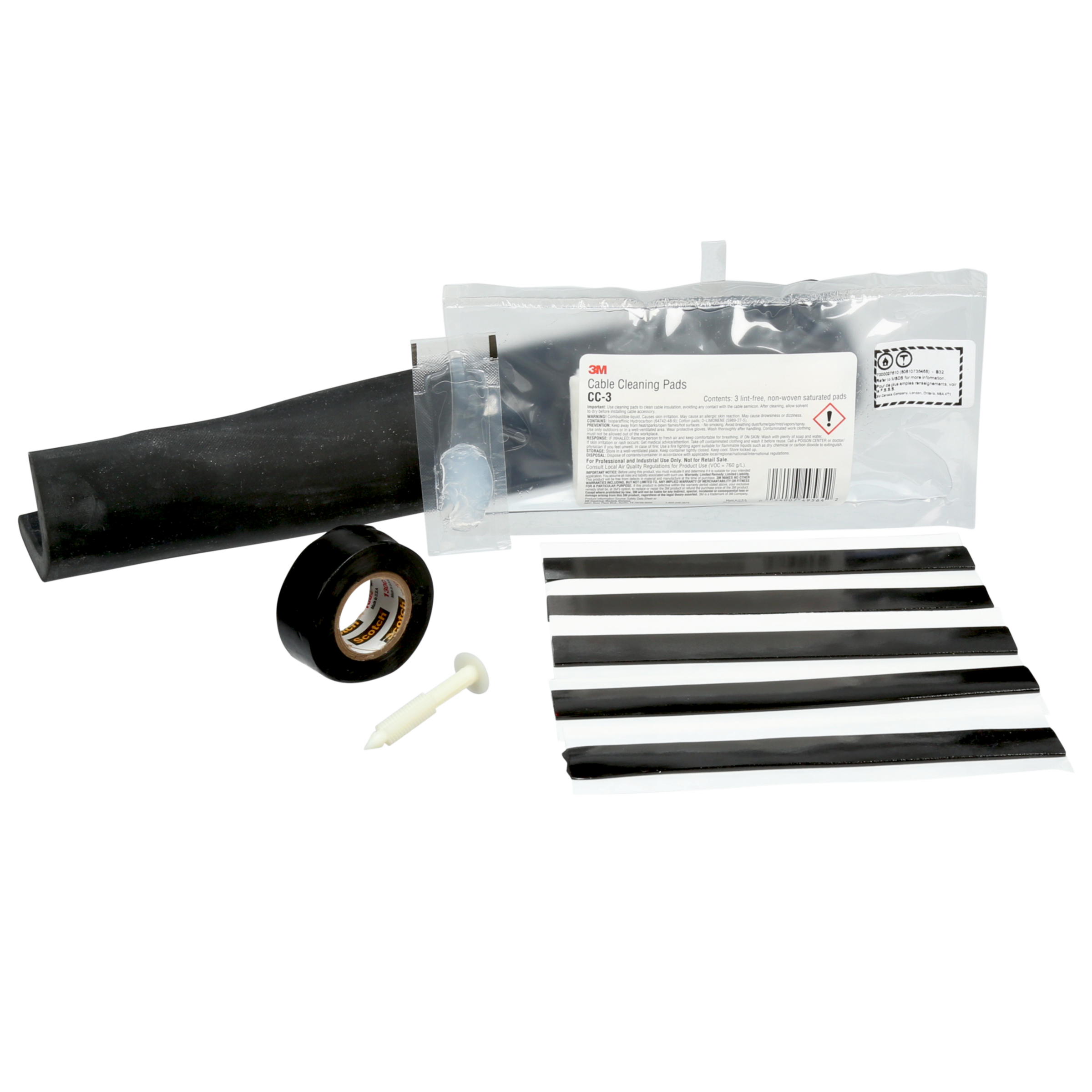

Image thumbnail 4
To:
CC:

3M™ 5319 Motor Lead Pigtail Splice Kit

Manufacturer: 3M | Catalog # 5319 | Electrozad South Part # 98477
$923.17 /ea
kt
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
The 3M™ Motor Lead Pigtail Splice Kit makes three splices. Lugs are not included in kits. Feeder of 1/0 AWG-250 kcmil (60-120 sq mm), motor lead 2 AWG-250 kcmil (35-120 sq mm).

Technical Information

Applications
Round Conductors, Solid Cores
Conductor Size
4/0 AWG - 500 kcmil
Connection Type
Pigtail
Temperature Rating
90 degrees C
Voltage
5/8 kV

Manufacturer Information

Brand
3M

General Product Info

12-Digit UPC
054007083160
Color
Black
GTIN
00054007083160
Product UPC
05400708316
