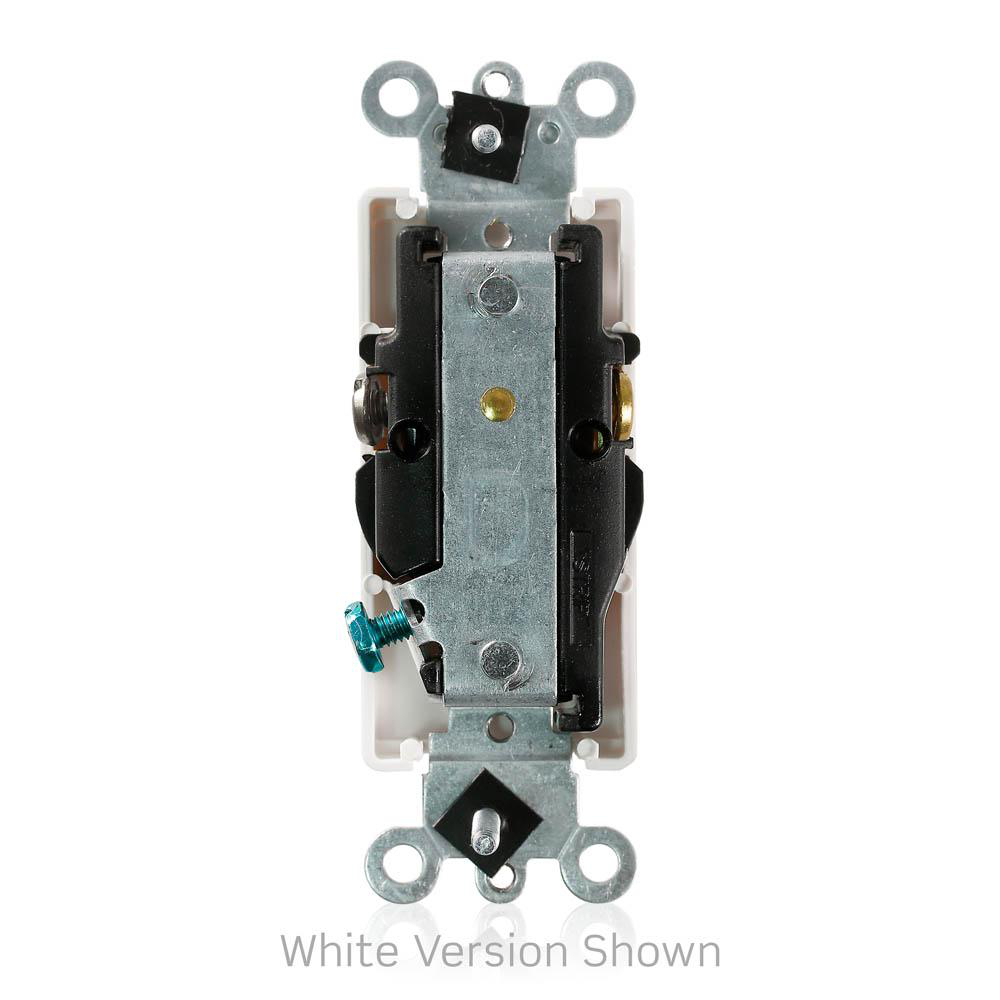

Image thumbnail 1
To:
CC:

Receptacle straight single 2P 3W 125V 20AMP white

Manufacturer: Leviton Manufacturing | Catalog # 16351-W | Electrozad South Part # 98405
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Product Brochure Product Catalog Page Installation / Instruction Manual MSDS | SDS Safety Sheet Technical Drawing
Back wire and side wire terminal options. Heavy-gauge locked-in wraparound strap. Back wire terminals accept up to #10 AWG copper or copper-clad wire, solid or stranded. Brass staked on self-grounding clip. Heavy-duty triple-wipe brass contacts for long service life. Impact-resistant thermoplastic construction. Limited 10-year warranty.

Technical Information

Amperage
20 A
Applications
Commercial
Body Material
Thermoplastic Nylon
Connection Type
Back And Side Wired
Device Type
Single Receptacle Outlet
Dielectric
2000 V
Dielectric Strength
2000 (Min.)
Face Material
Nylon
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Mounting Type
Wall Box
NEMA
WD-6
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
46 H x 1.52 W x 1.14 D IN
Standard
ANSI C-73
TC Connection
Back & Side Wired
Temperature Rating
-40 to 60 degrees C
Temperature Rise
200 %
Termination Type
Back Wire,Side Wire
Type
Single Outlet,Straight Blade
Voltage
125 V
Wire Count
3,3
Wire Size
14 - 10 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477473863
Color
White
Environmental Conditions
Flammability (Rated V-2 Per UL94)
GTIN
00078477473863

Dimensions

Warranty Length
10 yr

Certifications & Compliance

Certifications
UL
Country of Origin
Please Contact Customer Service
