Plug straight 3P 3W 125/250V 50AMP angle-black

Manufacturer: Leviton Manufacturing | Catalog # 9450-P | Electrozad South Part # 98114
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET MSDS | SDS Safety Sheet
Leviton's heavy duty industrial power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.

Technical Information

Amperage
50 A
Applications
Industrial
Blade Type
Solid Brass
Body Material
Super Tough Nylon
Conductor Size
10 - 4 AWG
Device Type
Power Device
Dielectric
2000 V
Grounding
Non-Grounding
Horsepower
3 hp
Material
Super Tough Nylon (Body)
Mounting Type
Cable

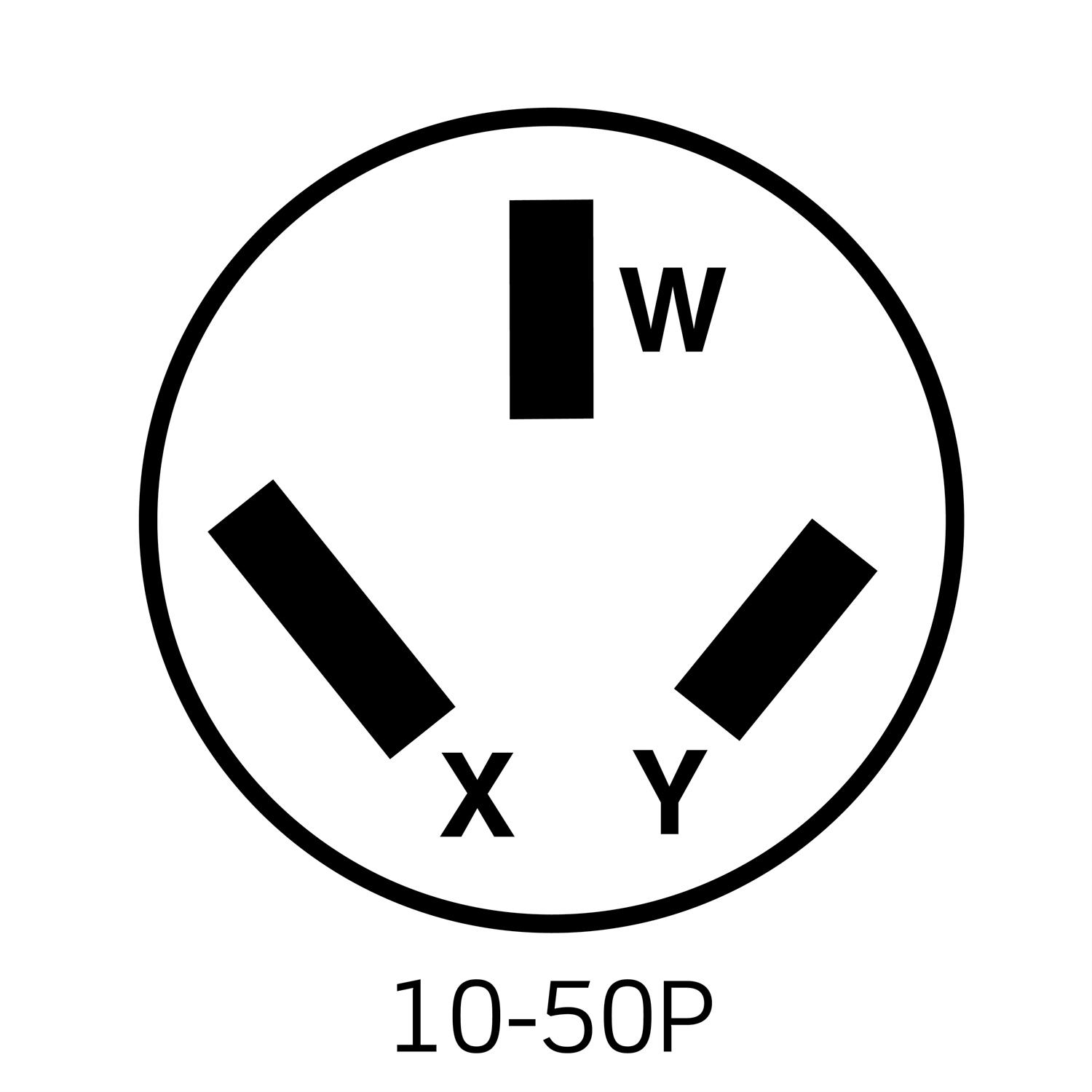

NEMA
10-50P
Number of Poles
3
Number of Wires
3
Operating Temperature
-40 degrees C
Screw Type
Steel,Zinc-Plated
Size
4.37 H x 2.76 W x 1.89 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Torque
16 lb-in
Type
Angled
Voltage
125/250 V
Wire Count
3
Wire Size
10 - 4 AWG 0.625 - 1.375 in

Manufacturer Information

Brand
Leviton
Sub Brand
Straight Blade Plugs and Conn

General Product Info

12-Digit UPC
078477809945
Color
Black,Orange,White
Environmental Conditions
Operating Temperature Range (-40 to 60) °C
GTIN
00078477809945

Dimensions

Warranty Length
2 yr

Certifications & Compliance

Country of Origin
Mexico
