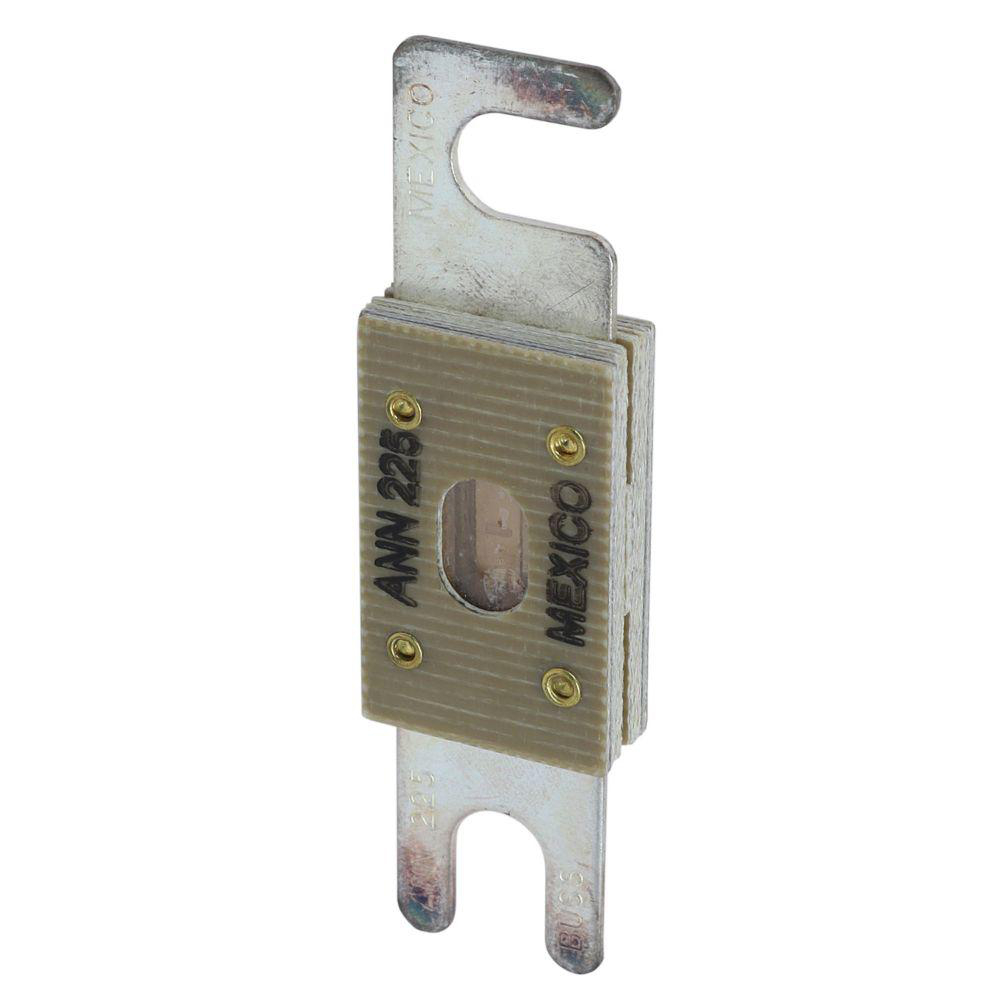

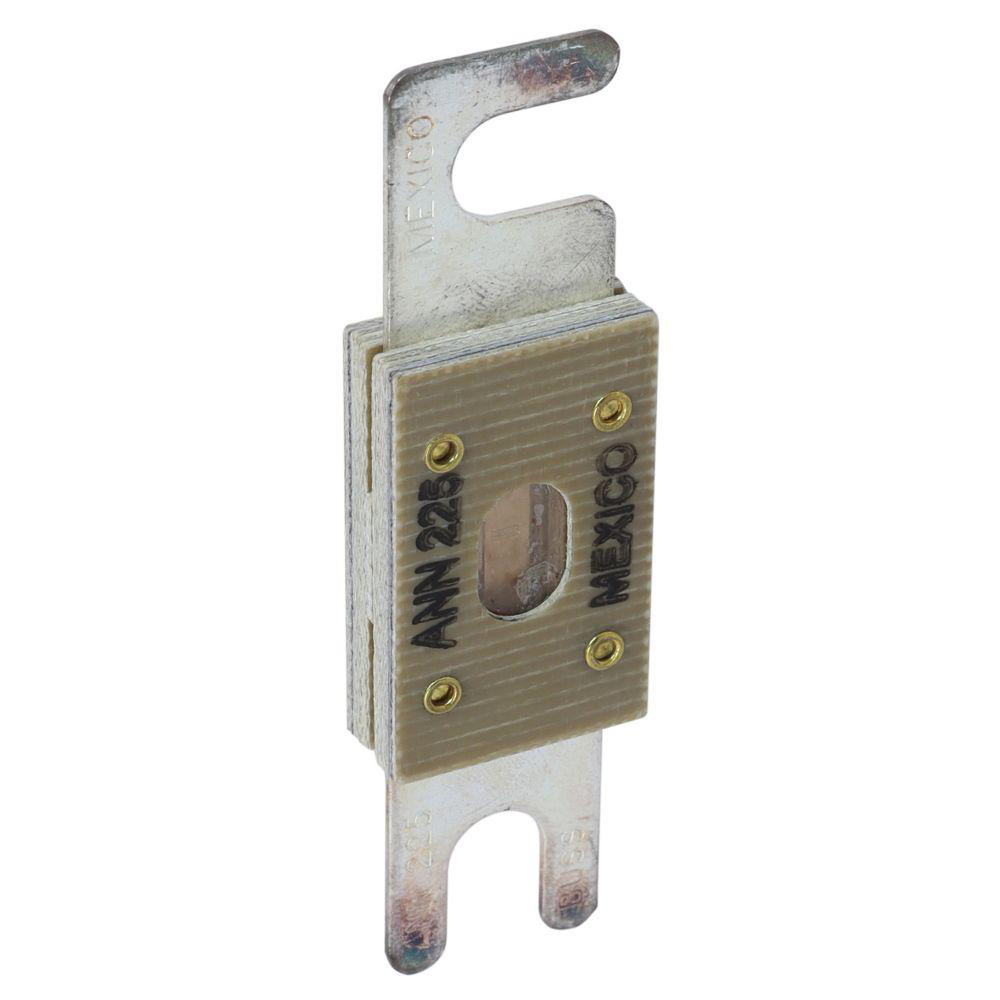

ANN VERY FAST ACTING LIMITER - 225 AMP

Manufacturer: Bussman Cooper Fuses | Catalog # ANN-225 | Electrozad South Part # 97030
$145.68 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing
Eaton Bussmann series ANN circuit limiter, 225 A, 2.5 kAIC at 125 Vac, 2.7 kAIC at 80 Vdc, Blade end X blade end, Stud, Non indicating

Technical Information

Amperage
225 A
Applications
Ind Facilities & Factories - Facility: Safety and Security Systems
Connection Type
Blade
End Type
Blade
Interrupt Rating
2.5 kA
Mounting Type
Stud
Size
3-3/16 In Length X 7/8 In Width
TC Connection
Blade end x blade end
Type
Circuit Limiting, Very Fast Acting
Voltage
125 V

Manufacturer Information

Brand
Bussmann
Sub Brand
Bussmann Series

General Product Info

12-Digit UPC
051712706360
GTIN
00051712706360
Weight
.27 lb

Dimensions

Height
1 in
Length
3.35 in
Width
2.8 in
