DSD COVER AND DEVICE SUB ASSEMBLIES

Manufacturer: Crouse Hinds | Catalog # DSD917 | Electrozad South Part # 9688
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual

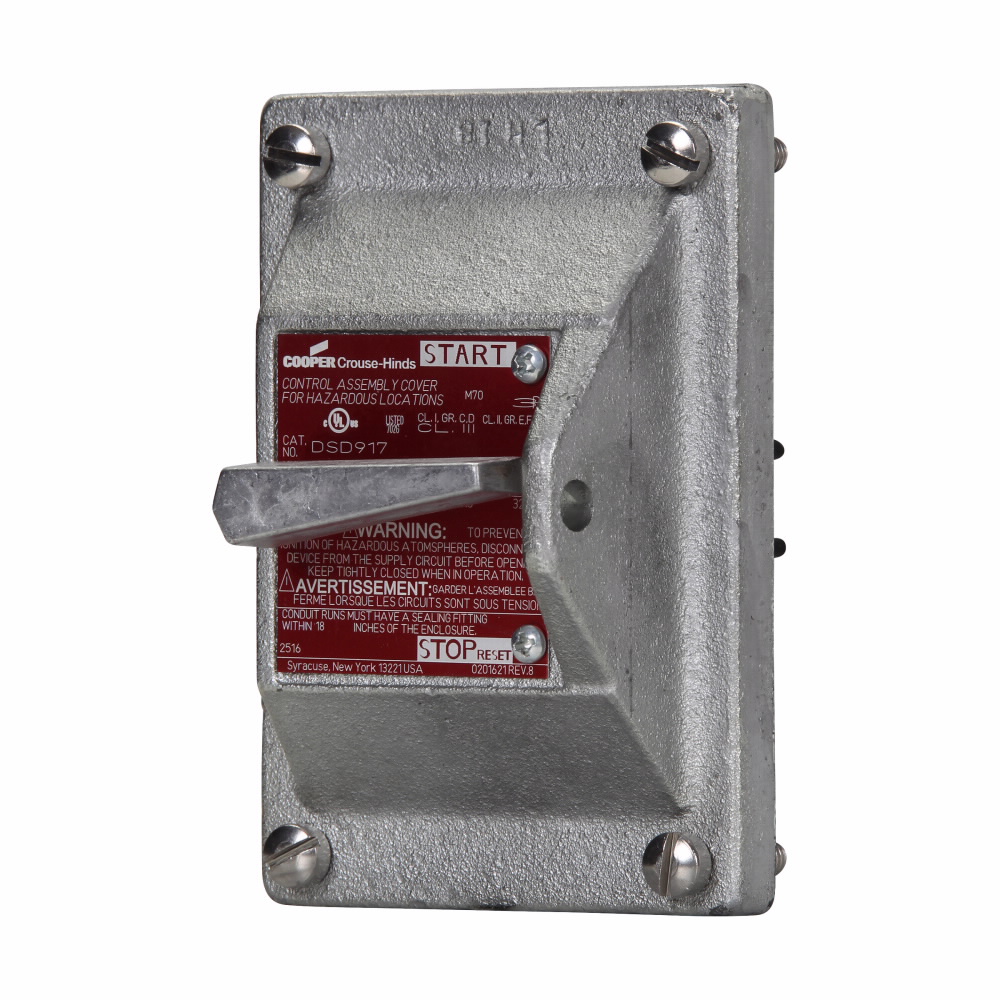

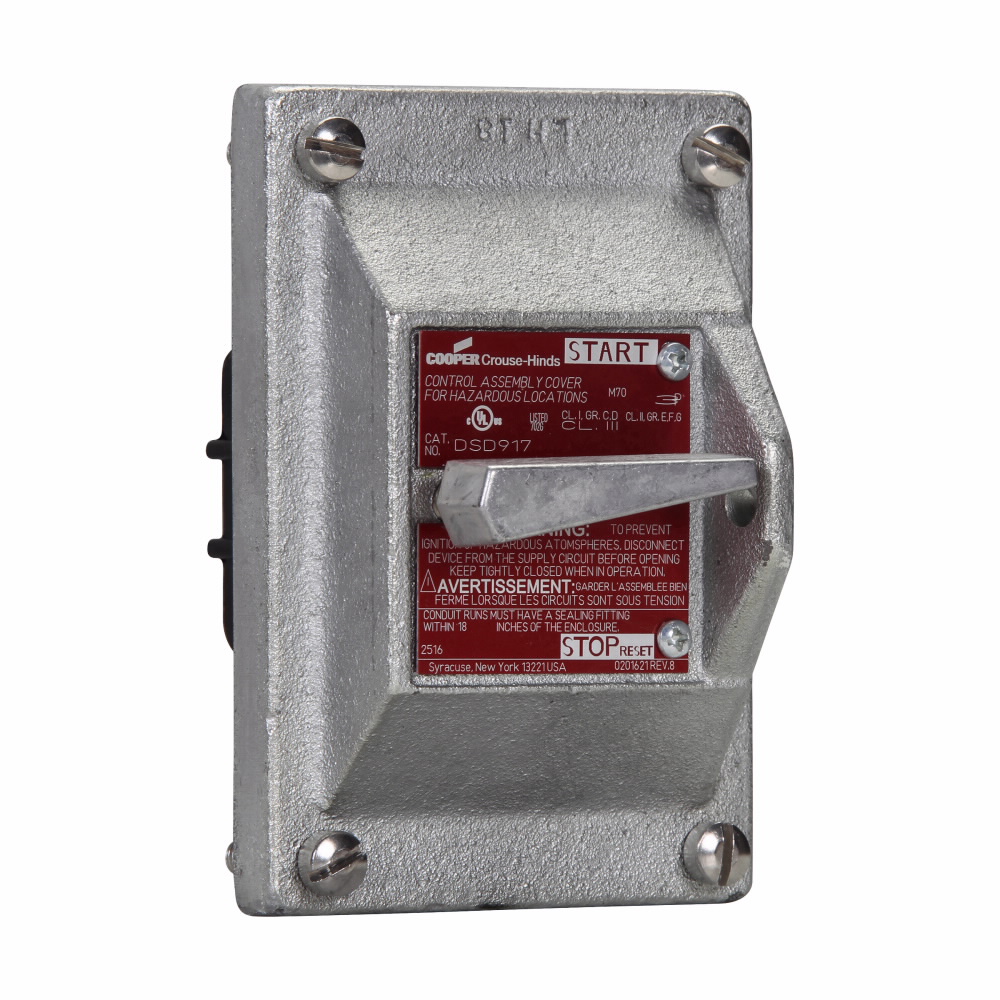

Eaton Crouse-Hinds series DSD manual motor starter cover and device sub-assembly, 20A/30A, 3-pole, 7.5 HP/15 HP, Arrow Hart, Feraloy iron alloy, 250/600 Vac

Technical Information

Amperage
20 A
Applications
EDSCM Modular Control Device Bodies and EFS/EDS Back Boxes
Coil Voltage
250 - 600 VAC
Contact Configuration
1 NO - 1 NC, Material Feraloy Iron Alloy
Control Voltage
600 VAC
Enclosure
Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G
Enclosure Type
Class I Div 1 2 Group B C D, Class II Div 1 Group E F G, Class II Div 2 Group F G, Class III, NEMA 3/7B/7C/7D/9E/9F/9G
Horsepower
7.5 hp
Material
Feraloy Iron Alloy
Number of Poles
3
Type
Front Operated, Factory Sealed, Heavy Duty

Manufacturer Information

Brand
Crouse-Hinds

General Product Info

12-Digit UPC
782274575773
GTIN
00782274575773
Used With
DSD Manual Motor Starter, EDSCM Modular Control Device Bodies and EFS/EDS Back Boxes
Weight
2.45 lb

Dimensions

Height
3.5 in
Length
5 in
