Occupancy sensor Decora® multi-technology 347vac

Manufacturer: Leviton Manufacturing | Catalog # OSSMT-MDW | Electrozad South Part # 94507
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet MDM SAFETY DATA SHEET Installation / Instruction Manual MSDS | SDS Safety Sheet

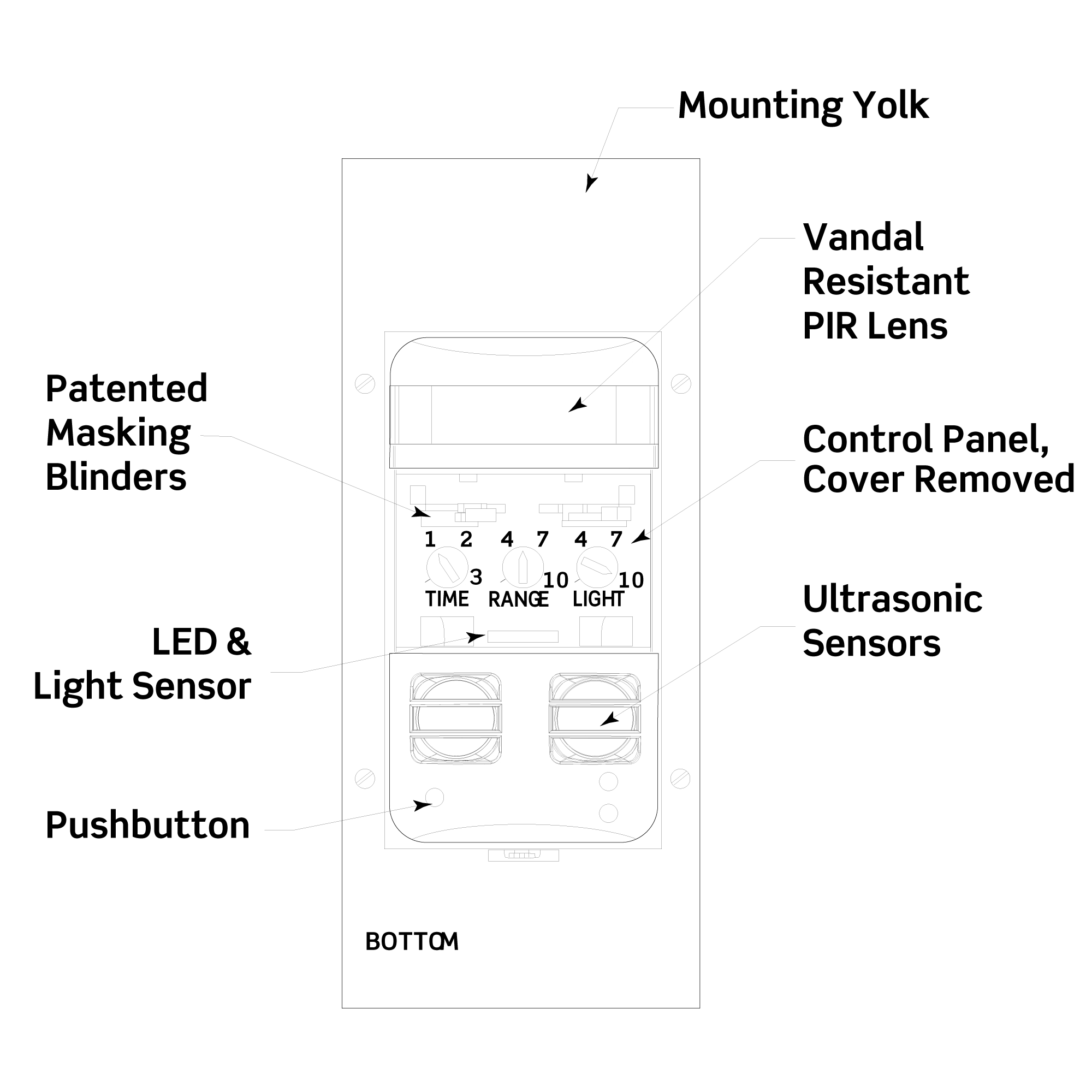

Decora® wall switch multi-technology occupancy sensor, PIR/ultrasonic, Self-adjusting, Single-pole, 2400 square feet coverage, For use with 800 W at 120 V incandescent/tungsten, 1200 VA at 120 V, 2700 VA at 277 V, 1500 VA at 347 V fluorescent, 1/4 HP at 120 V motor, 30 sec to 30 min time adjustments, Convenient pushbutton provides manual ON/OFF light switching at any time, Vandal resistant PIR lens, LED indicator light flashes when sensor detects motion to verify detection is active, Green flashes for ultrasonic, red flashes for PIR.

Technical Information

Applications
For Commercial use

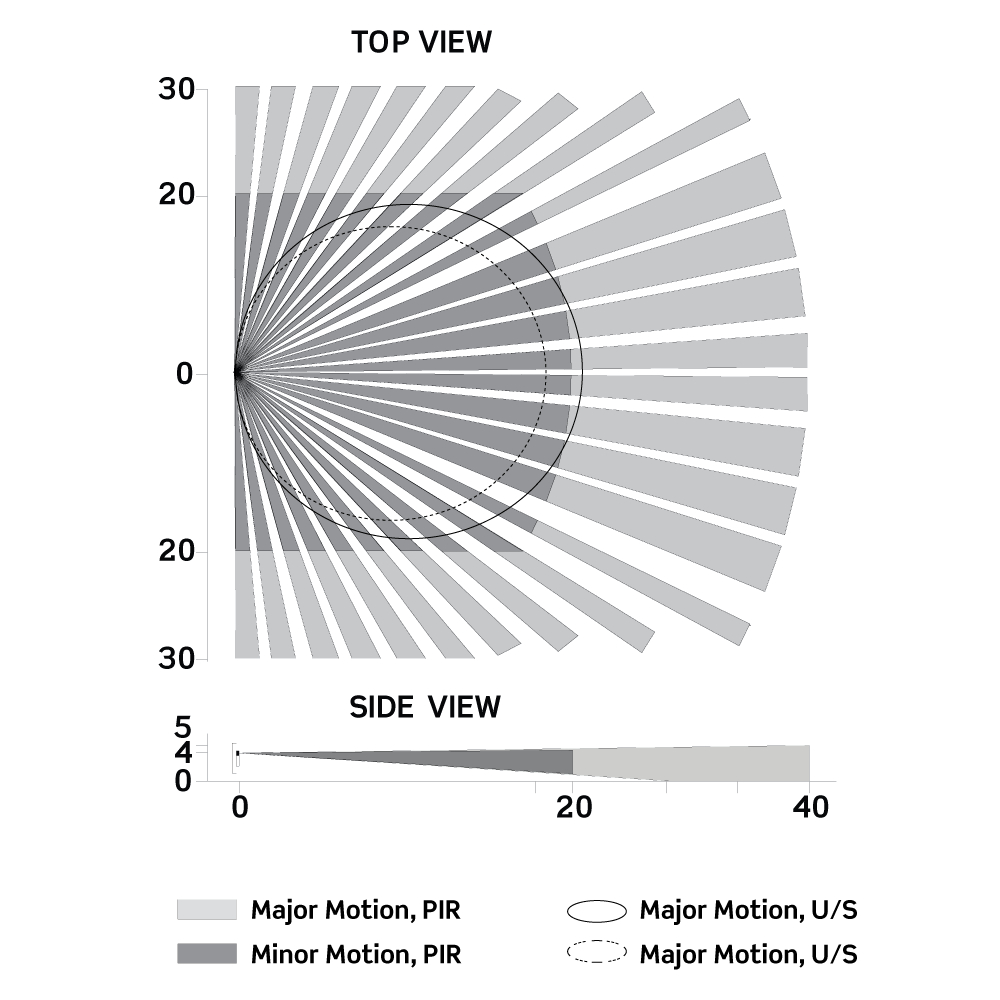

Coverage
2400 sq-ft
Device Type
Occupancy Sensor
Frequency
50/60 Hz
Grade
Commercial
LED Color
Green,Red
Mounting Type
Wall
Number of Poles
1
Operating Temperature
0 degrees C
Power Consumption
120 V
Response Time
30 min
Sensor Type
Ultrasonic, Passive Infrared

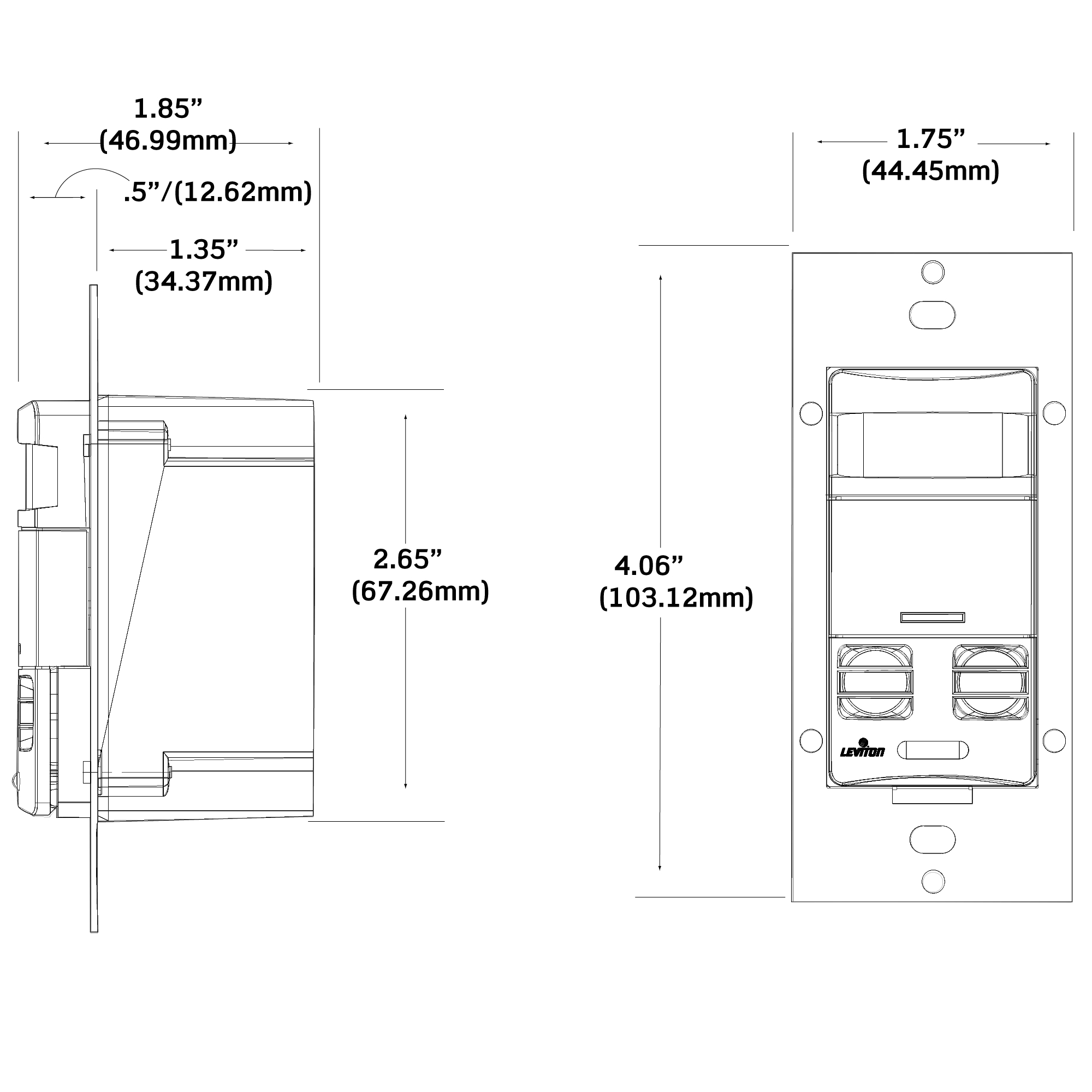

Size
67.26 mm
Standard
CEC Title 24 Compliant,CSA,CUL Listed,FCC Compliant,NAFTA (CF434),UL Listed
Storage Temperature
-10 To 85 degrees C
Switch Type
Single-Pole,Single-Pole
Temperature Rating
1 - 50 degrees C
Type
0-10 V,Multi-location/3-way/single-pole,Occupancy/Vacancy Sensor Dimmer
Voltage
120 V

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477279373
Color
White
Environmental Conditions
0 to 50 50 Deg C Operating
GTIN
00078477279373

Dimensions

Warranty Length
5 yr

Certifications & Compliance

Certifications
UL/cUL
Country of Origin
Mexico
