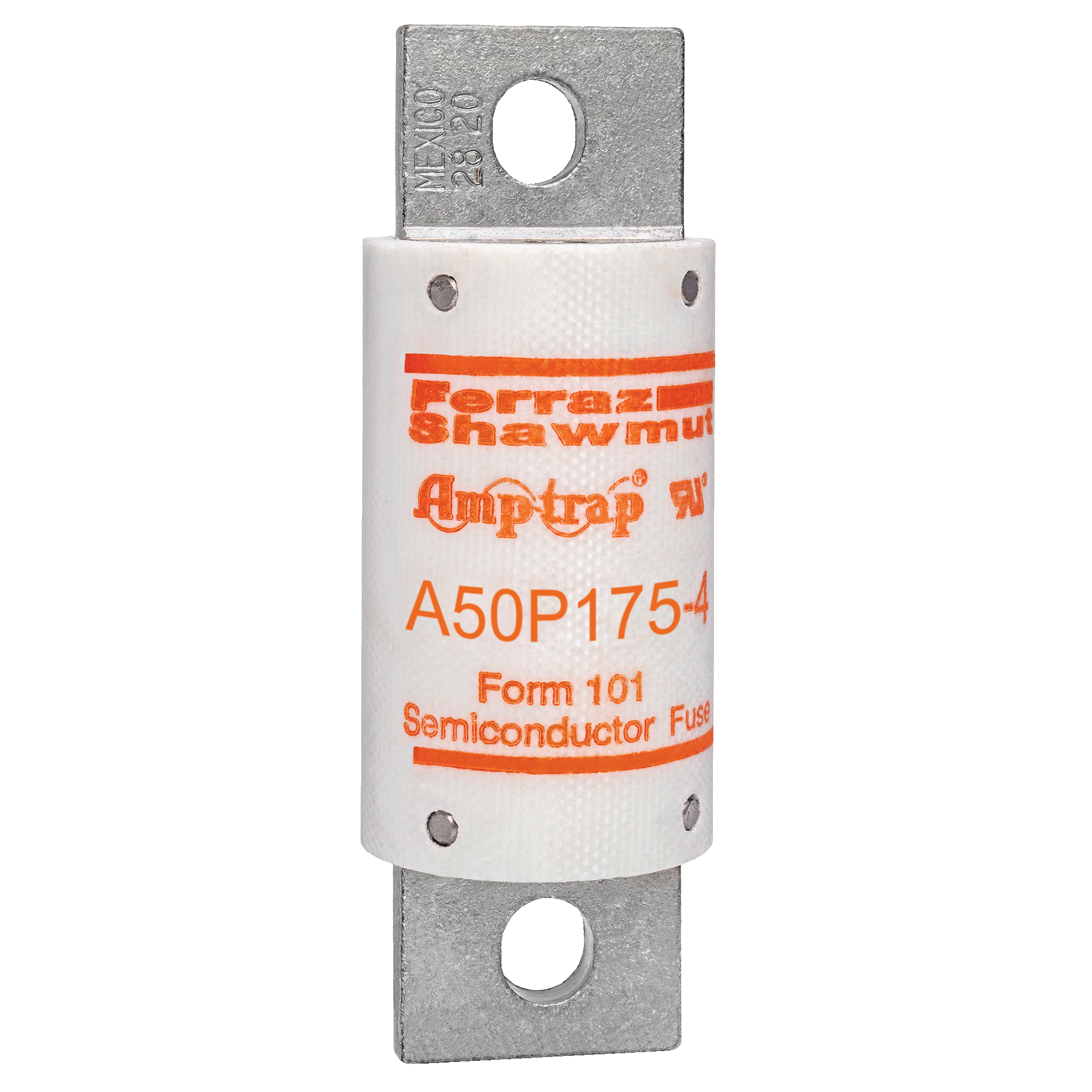

High Speed Fuse Amp-Trap® A50P 500VAC 450VDC 175A Blade

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50P175-4 | Electrozad South Part # 93049
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Technical Information

Amperage
175 A
Applications
Protection of DC Drives, UPS and Other Equipment of 500 V or Less
Connection Type
Blade
Contact Material
Tin Plated Brass
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA at 500 VAC, 79 kA at 450 VDC
Max Operating Temperature
80 degrees C
Mounting Type
Bolt
Rated Voltage AC
500 V
Rated Voltage DC
450 V
TC Connection
Blade
Terminal Material
Tin-Plated Brass
Terminal Type
Blade
Type
North American, Current-Limiting, Fast-Acting, High Speed
Voltage
500 V

Packaging

Package Qty
5

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001946111
Construction
GMG
GTIN
30782001946112
Weight
0.45 lb

Dimensions

Diameter
1.22 in
Length
3.63 in

Certifications & Compliance

Country of Origin
Mexico
