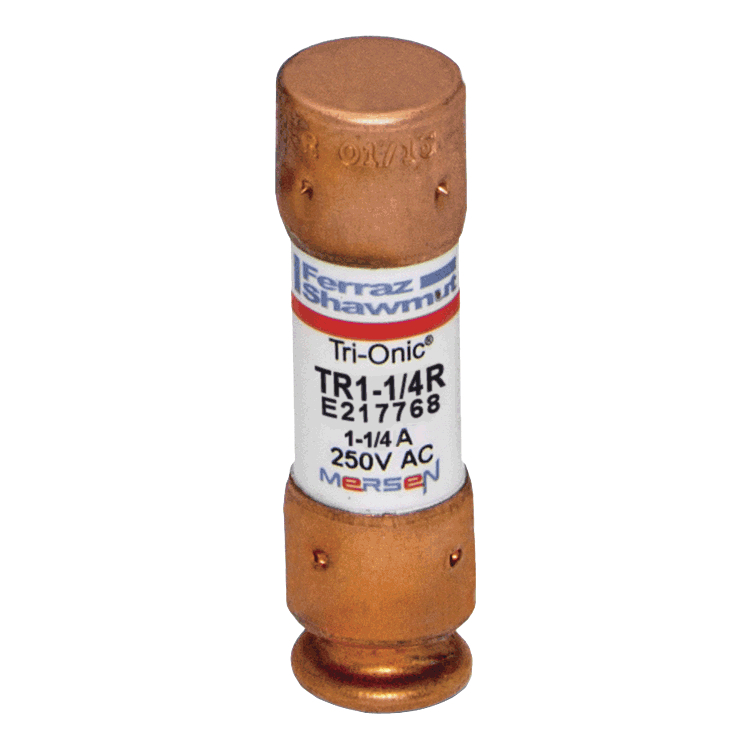

Fuse TR-R - Class RK5 - Time-Delay 250VAC 250VDC 1.25A Ferrule Tri-Onic®

Manufacturer: Ferraz Shawmut Mersen | Catalog # TR1-1/4R | Electrozad South Part # 903
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Technical Drawing
Tri-Onic TR-R current-limiting time-delay fuses are engineered for overcurrent protection of motors, transformers, service entrance equipment, feeders and branch-circuits. The time-delay characteristics of the TR-R safely handle harmless starting currents and inrush currents associated with today's motors and transformers.

Technical Information

Amperage
1.25 A
Applications
Optional Solid-State SmartSpot Indicator Time-Delay for Motor Start-Ups and Transformer Inrush Currents without Nuisance Opening Current-Limiting for Low Peak Let-Thru Current Rejection-Style Design Prevents Replacement Errors (When Used with Recommended Fuse Block)
Connection Type
Ferrule
Frequency
50/60 Hz
Fuse Class
Class RK5
Insulation Material
PolyTube
Interrupt Rating
200 kA
Mounting Type
Clip
Rated Voltage AC
250 V
Rated Voltage DC
250 V
TC Connection
Ferrule
Terminal Material
Copper
Terminal Type
Ferrule
Type
Time Delay

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut

General Product Info

12-Digit UPC
782001747602
Class
RK-5
GTIN
30782001747603
Weight
0.037 lb

Dimensions

Diameter
0.56 in
Length
2 in
