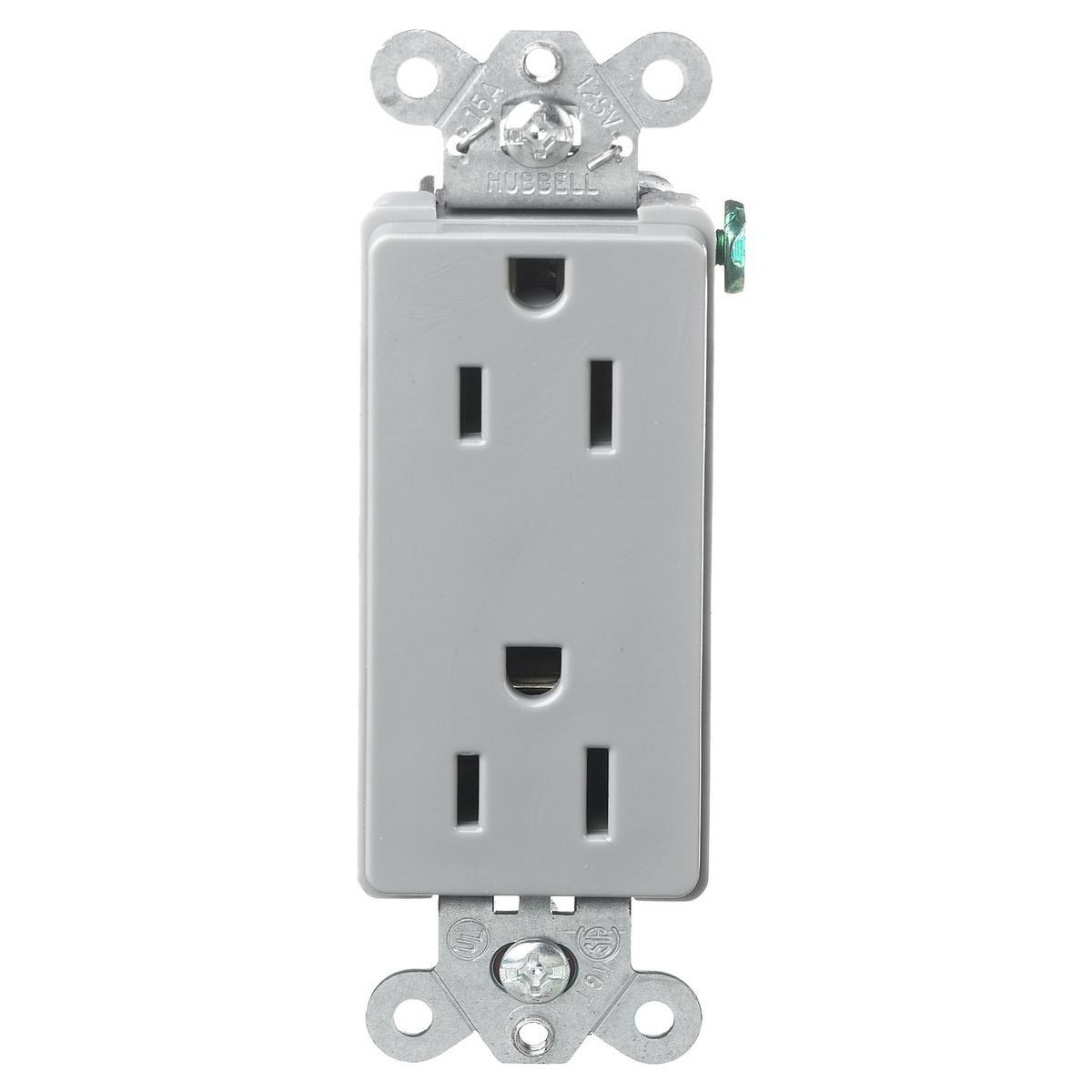

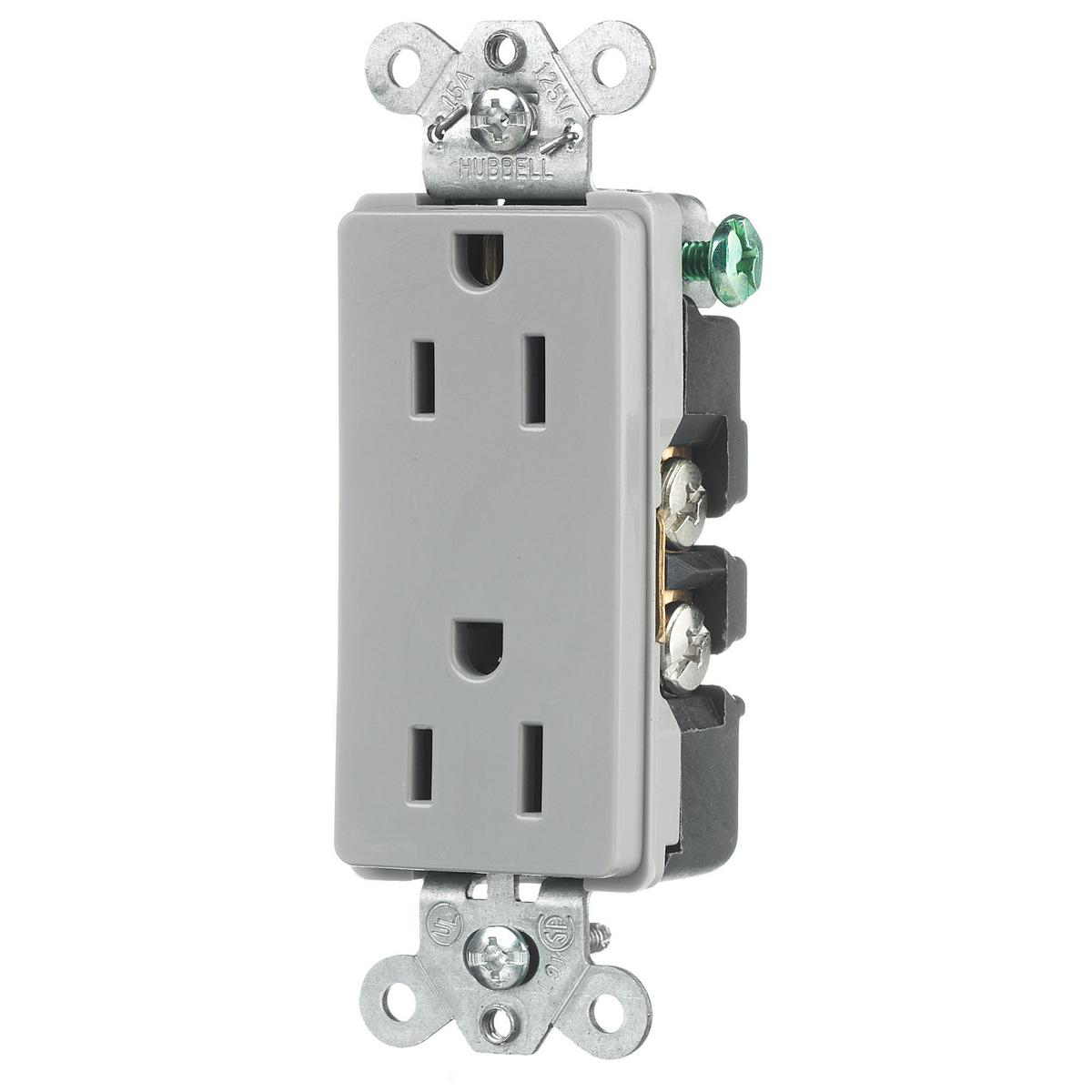

Receptacle duplex flush nylon 2P3W 15A 5-15R gry

Manufacturer: Hubbell Wiring Devices | Catalog # HBL2152GY | Electrozad South Part # 8650
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Catalog Page Installation / Instruction Manual Technical Drawing Manufacturer Warranty
Style Line® duplex receptacle made of smooth nylon face with 2 pole 3 wire grounding, 125 V, back and side wire only, straight blade.

Technical Information

Amperage
15 A
Applications
Heavy Duty
Base Material
PBT
Conductor Size
14-12 AWG
Connection Type
Back and Side Wired
Current
15 A
Dielectric Strength
Withstands 2,000V minimum
Face Material
Nylon
Grounding
Self
Horsepower
0.5 hp
Material
Nylon
Mounting Type
Screw, Recessed/Flush
NEMA
5-15R
Number of Phases
1
Number of Poles
2
Number of Wires
3
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA,E2186,UL
Style
Style Line Decorator
TC Connection
Back & Side Wired
Type
Decorator, Standard, Heavy Duty
Voltage
125 V
Wattage
1875 W
Wire Count
3
Wire Size
14 - 10 V

Manufacturer Information

Brand
Hubbell Wiring Device Kellems
Sub Brand
Straight Blade

General Product Info

12-Digit UPC
783585060347
Color
Gray
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
GTIN
00783585060347
Product Series
Heavy Duty
Product UPC
78358506034
Weight
0.2 lb

Dimensions

Height
1.03 in
Length
3.28 in
Width
1.36 in

Certifications & Compliance

Country of Origin
USA
Overview
  • Triple wipe contacts
  • Aesthetic Style Line® decorator design
