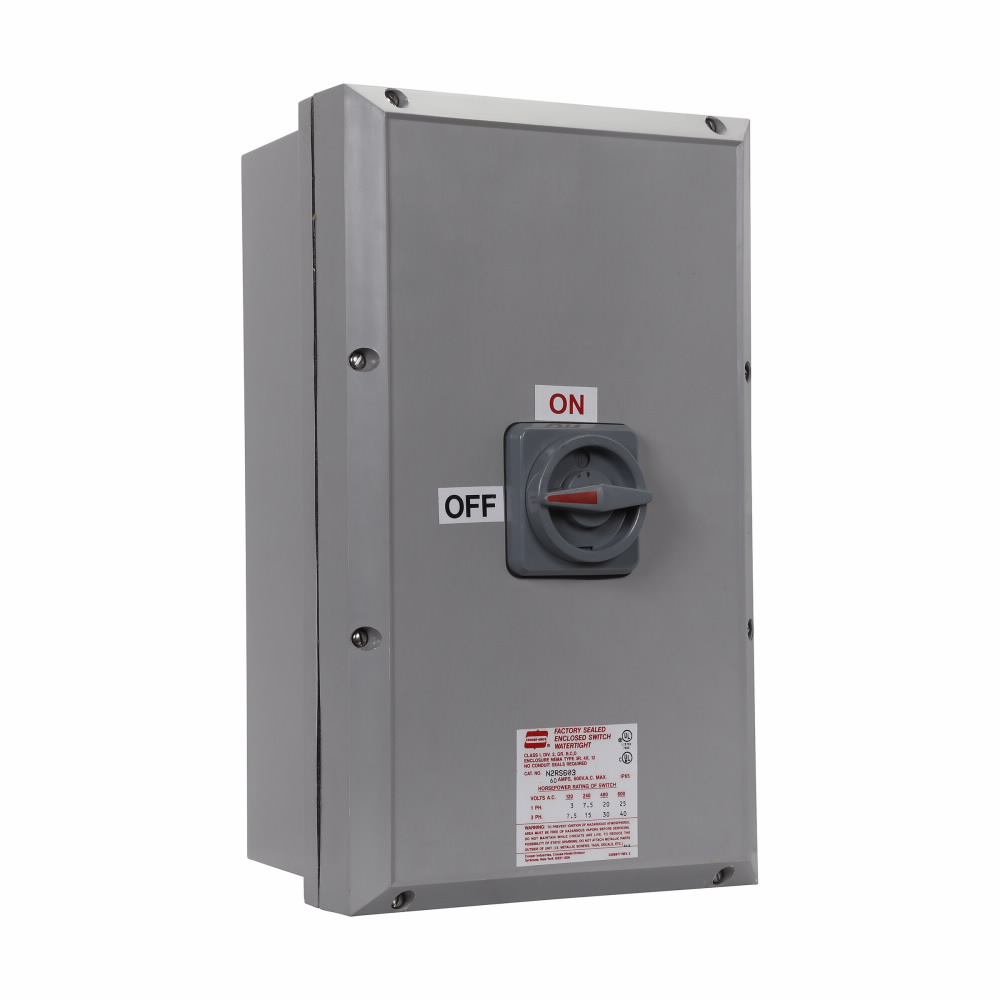

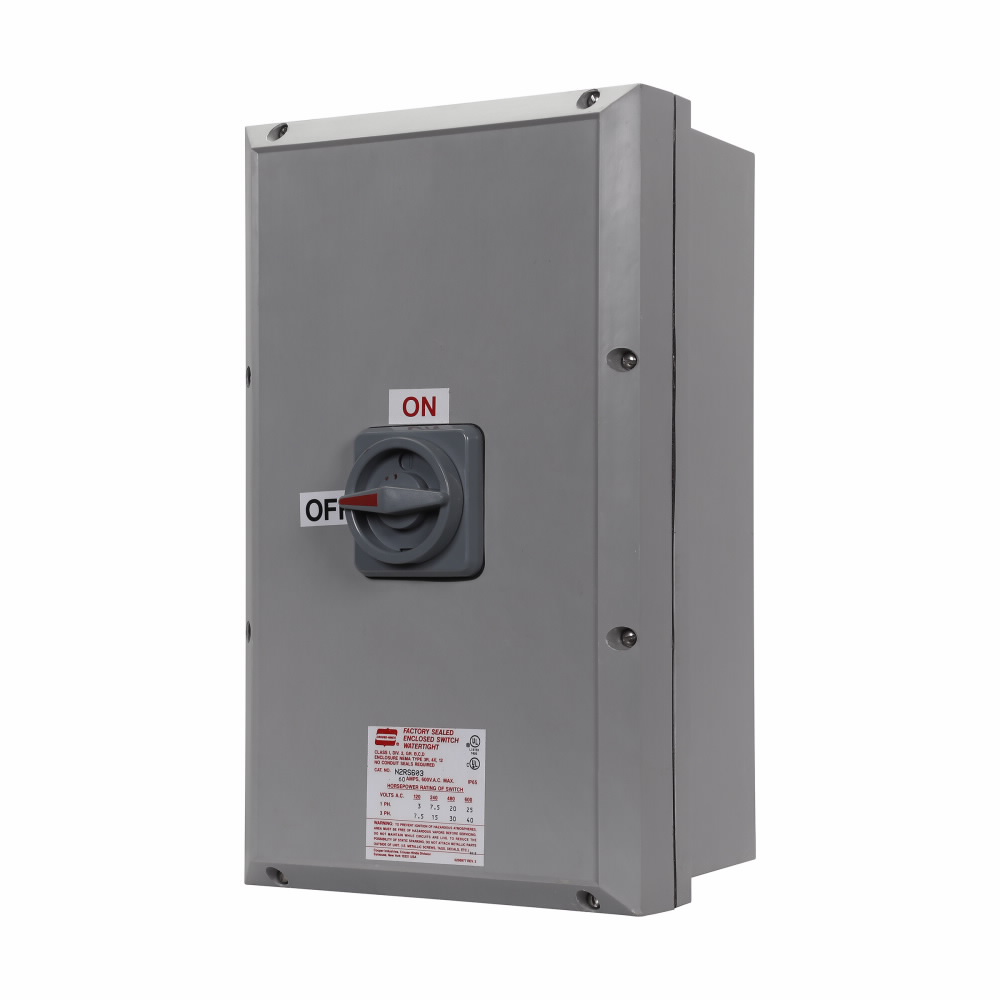

N2RS ENCL SWTCH HEAVY DUTY 1 1/2 3P

Manufacturer: Crouse Hinds | Catalog # N2RS603 | Electrozad South Part # 80257
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Installation / Instruction Manual
Eaton Crouse-Hinds series N2RS enclosed switch, 60A, With three-pole switch, Non-fused, 15 HP/30 HP/40 HP, Krydon fiberglass-reinforced polyester, Three-phase, 1-1/2", Factory sealed motor circuit switch, 240-600 Vac

Technical Information

Actuator
Rotary
Amperage
60 A
Applications
Motor Generator Sets, Compressors, Heating and Cooling Units, Conveyors, Grain Processing and Handling Plants, Chemical Plants and Certain Food Proc
Enclosure
Class I Div 2 Group B C D, NEMA 3/4X/7/12, IP65
Horsepower
15 hp
Material
Krydon Fiberglass-reinforced Polyester
Number of Phases
3
Number of Poles
3 Pole
Size
11-3/8 In Length X 15-3/8 In Width X 33-3/4 In Height
Type
Factory Sealed Motor Circuit Switch

Manufacturer Information

Brand
Crouse-Hinds
Sub Brand
Arktite

General Product Info

12-Digit UPC
782274959009
GTIN
00782274959009
Weight
27.4 lb

Dimensions

Height
19.39 in
Length
11.39 in
