K2C26B1

Manufacturer: Burndy | Catalog # K2C26B1 | Electrozad South Part # 78679
$93.87 /ea
pc
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing

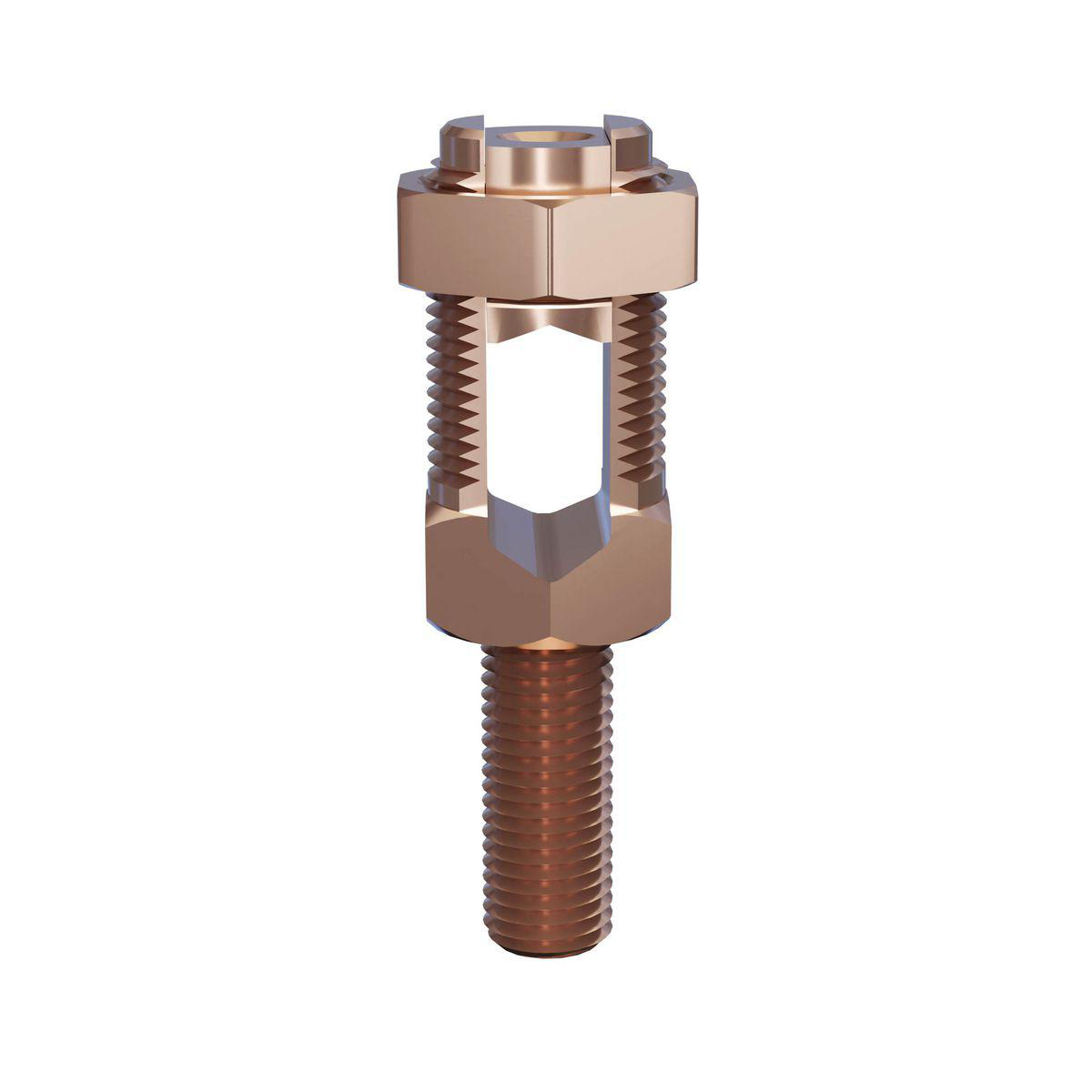

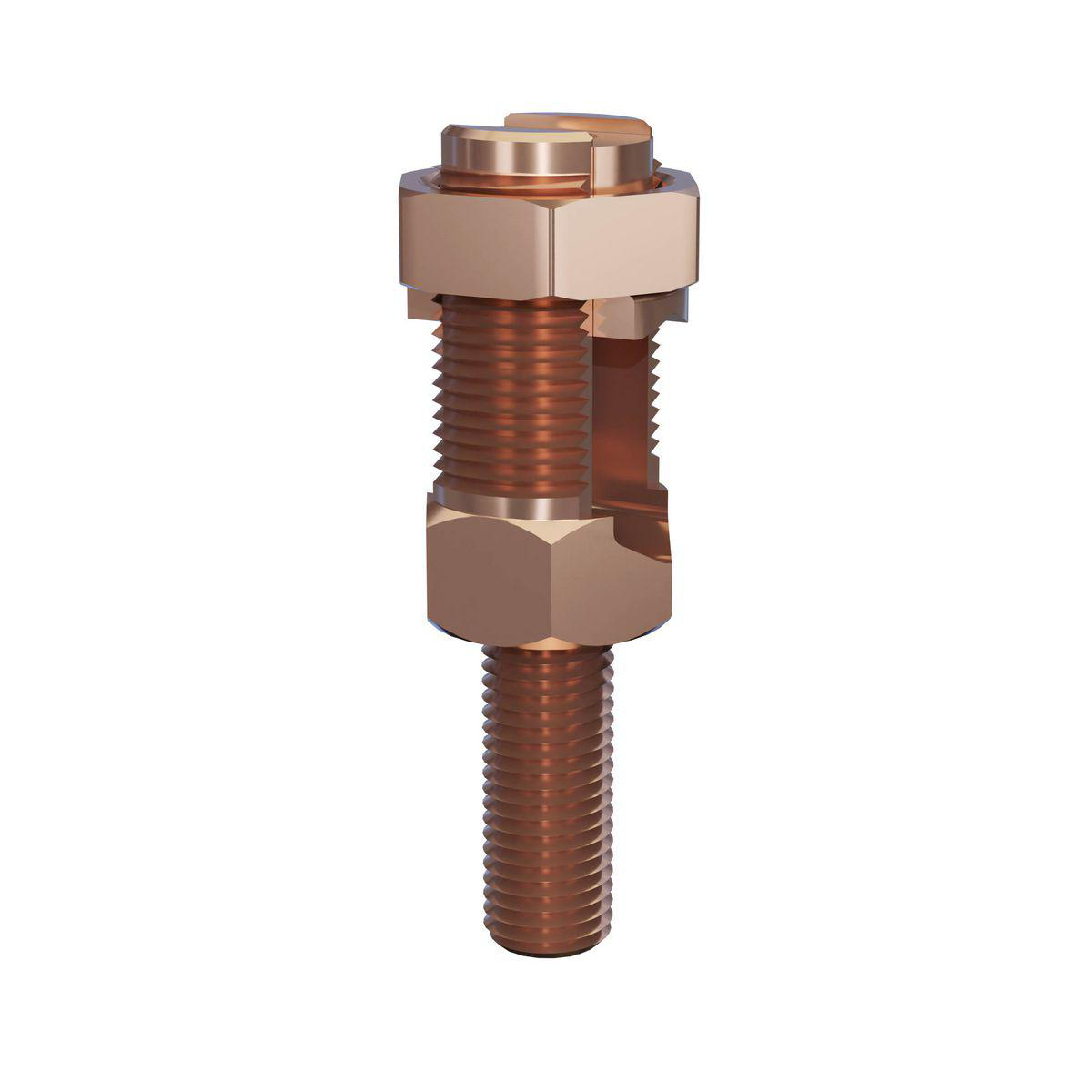

Mechanical Grounding Connector, Cable to Flat, 2-2/0 AWG (Str) / 2-3/0 AWG (Sol), 1/2" Stud,1-3/8 H.

Technical Information

Applications
For Direct Burial Applications and Used to Ground One or Two Cables to Steel Structures, Fence Posts, Transformers, also Used to Tap One or Two Cables from Bus Bar
Body Width
0.88 in
Conductor Size
2 AWG Stranded, 3/0 AWG Solid
Direct Burial?
Yes
Material
Bronze Alloy
Plated?
No
Plating Type
Unplated
Size
1-1/16 in L x 3-1/8 in H
Stud Size
1/2 x 11/16
Type
Cable to Flat

Manufacturer Information

Brand
Burndy
Sub Brand
Servit Post™

General Product Info

12-Digit UPC
781810257456
GTIN
00781810257456

Dimensions

Diameter
1-1/4 in
Height
1.38 in
Length
3.09 in
Overall Length
3.09 in
Width
1.28 in

Certifications & Compliance

Country of Origin
USA
CSA
No
