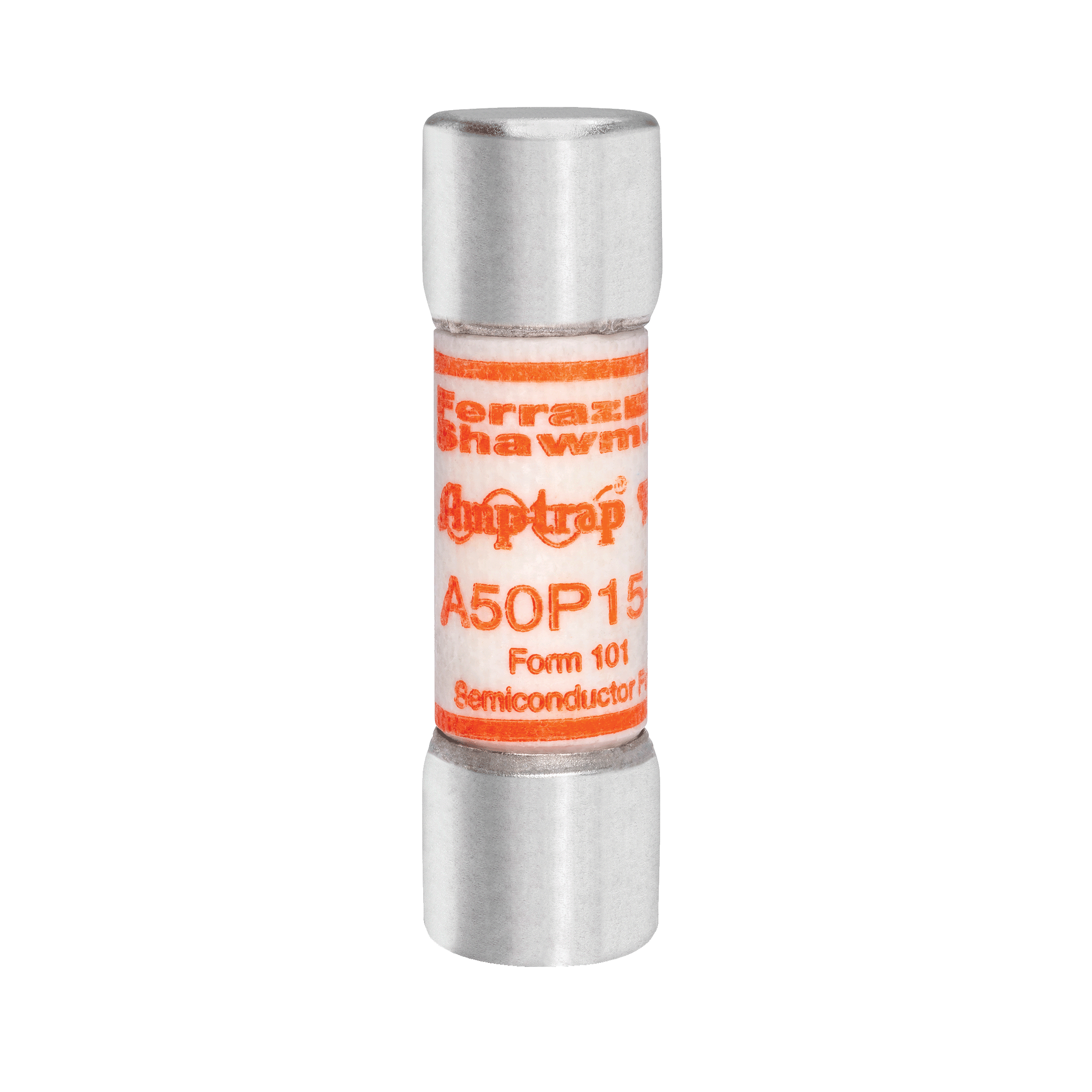

High Speed Fuse Amp-Trap® A50P 500VAC 450VDC 15A Ferrule

Manufacturer: Ferraz Shawmut Mersen | Catalog # A50P15-1 | Electrozad South Part # 78410
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
A50P Amp-Trap® Form 101 high speed fuses were developed for DC drives, uninterruptable power supplies and similar applications requiring better protection (lower I2t) and superior reliability. The A50P is typically used for replacement.

Technical Information

Amperage
15 A
Applications
For DC Drives, Uninterruptable Power Supplies and Similar Applications Requiring Better Protection and Superior Reliability
Connection Type
Ferrule
Contact Material
Tin Plated Copper, Tin Plated Brass, Silver Plated Copper
Frequency
50/60 Hz
Insulation Material
GMG
Interrupt Rating
100 kA at AC, 79 kA at DC
Max Operating Temperature
80 degrees C
Mounting Type
Clip
Rated Voltage AC
500 V
TC Connection
Ferrule
Terminal Material
Tin-Plated Copper
Terminal Type
Ferrule
Type
Form 101, High Speed, Fast Acting, Current Limiting
Voltage
500 V

Packaging

Package Qty
10

Manufacturer Information

Brand
Ferraz Shawmut
Sub Brand
Amp-Trap®

General Product Info

12-Digit UPC
782001949914
Construction
GMG
GTIN
30782001949915
Weight
0.04 lb

Dimensions

Diameter
0.56 in
Length
2 in

Certifications & Compliance

Country of Origin
Mexico
