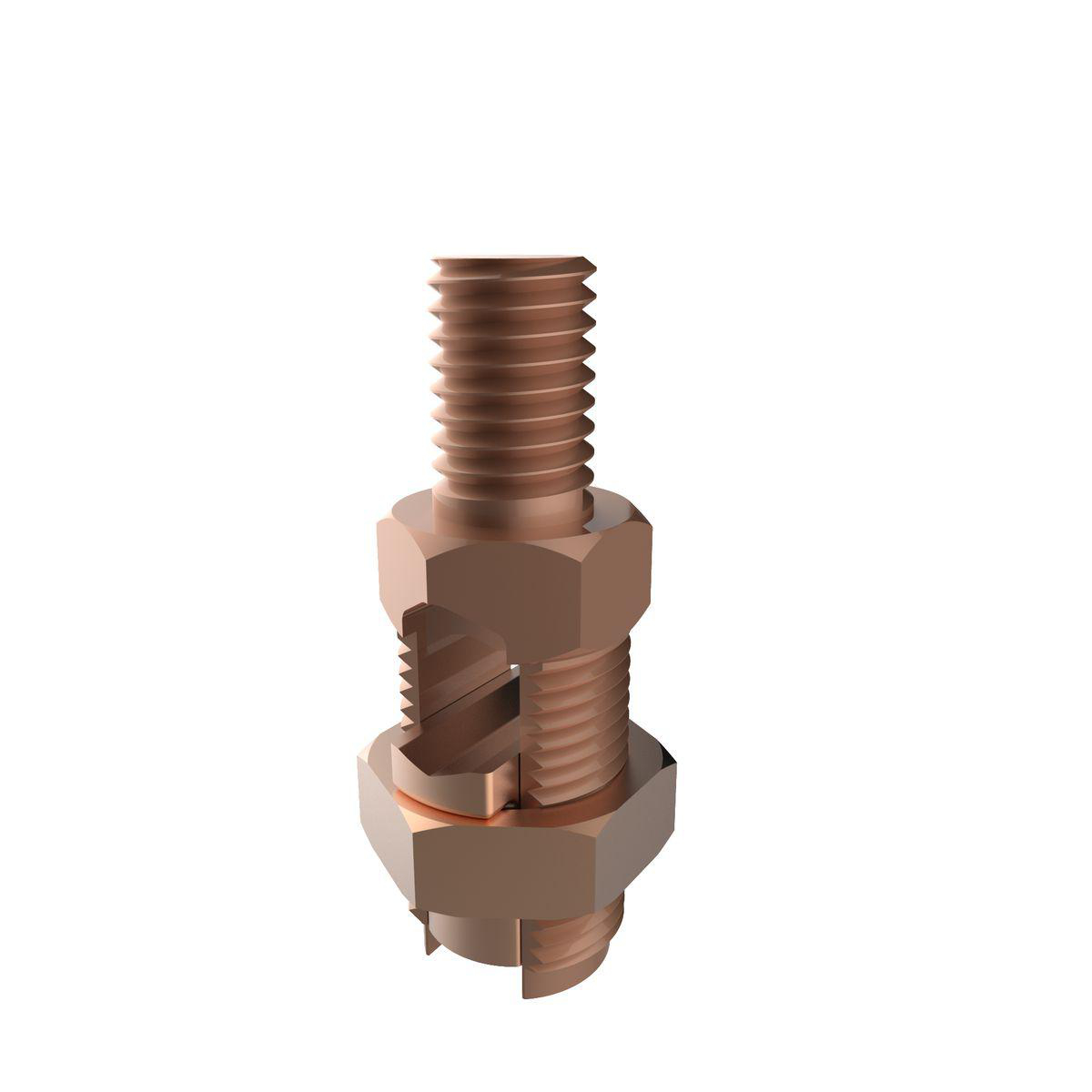

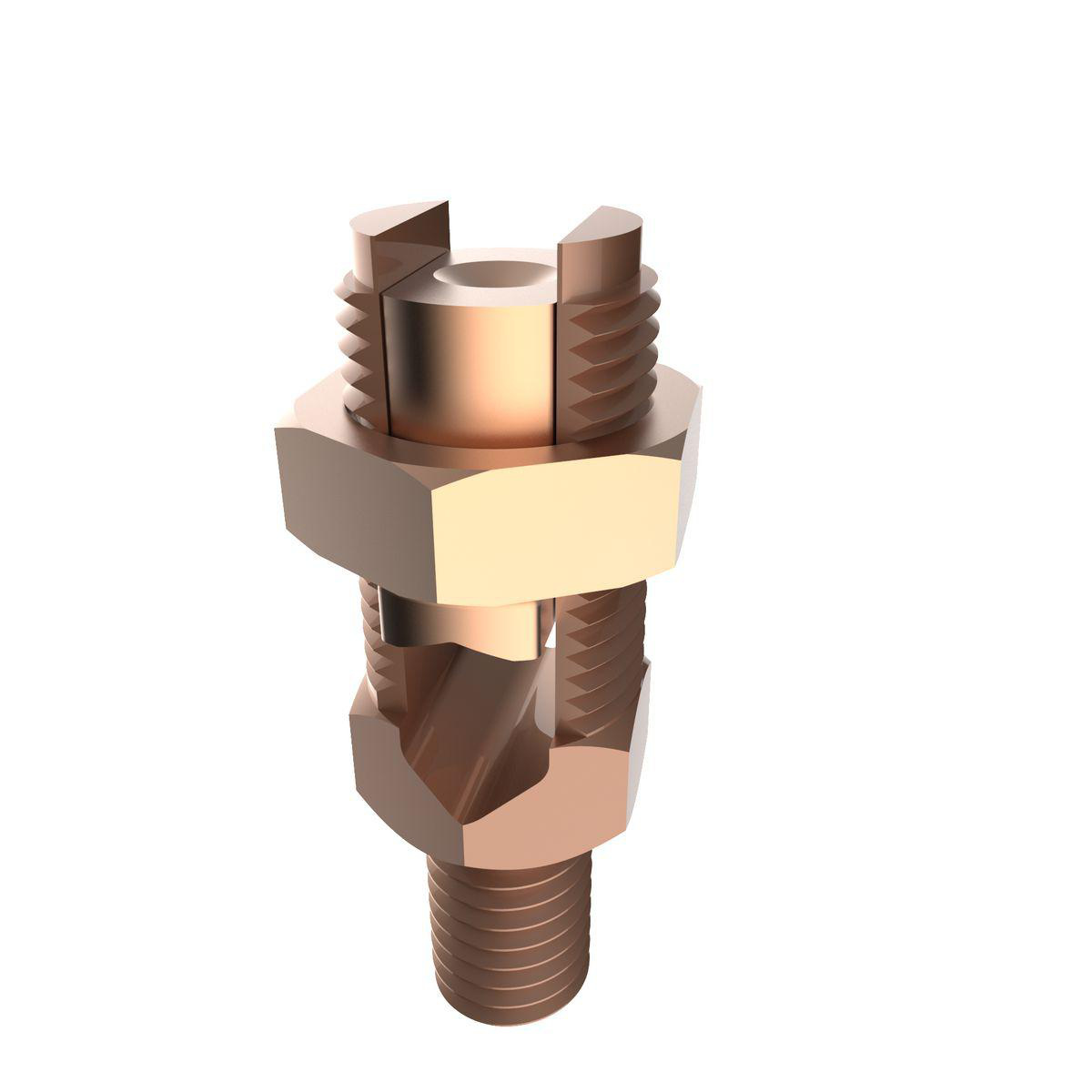

Product image for K2C25B1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
To:
CC:

K2C25B1

Manufacturer: Burndy | Catalog # K2C25B1 | Electrozad South Part # 78291
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet Product Brochure Technical Drawing
Mechanical Grounding Connector, Cable to Flat, 2-1/0 AWG (Str) / 2-2/0 AWG (Sol), 1/2" Stud.

Technical Information

Applications
For Used To Ground One Or Two Copper Cables To Steel Structures, Fence Posts, Transformers, Tap One Or Two Cables From Bus Bar And Direct Burial
Body Width
0.75 in
Conductor Size
1 AWG
Direct Burial?
Yes
Material
Bronze Alloy
Plated?
No
Plating Type
Unplated
Type
KC and K2C Series

Manufacturer Information

Brand
Hubbell
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810257357
GTIN
00781810257357

Dimensions

Diameter
1-1/4 in
Height
1.19 in
Length
2.81 in
Overall Length
2.81 in
Width
4.56 in

Certifications & Compliance

Country of Origin
USA
CSA
No
