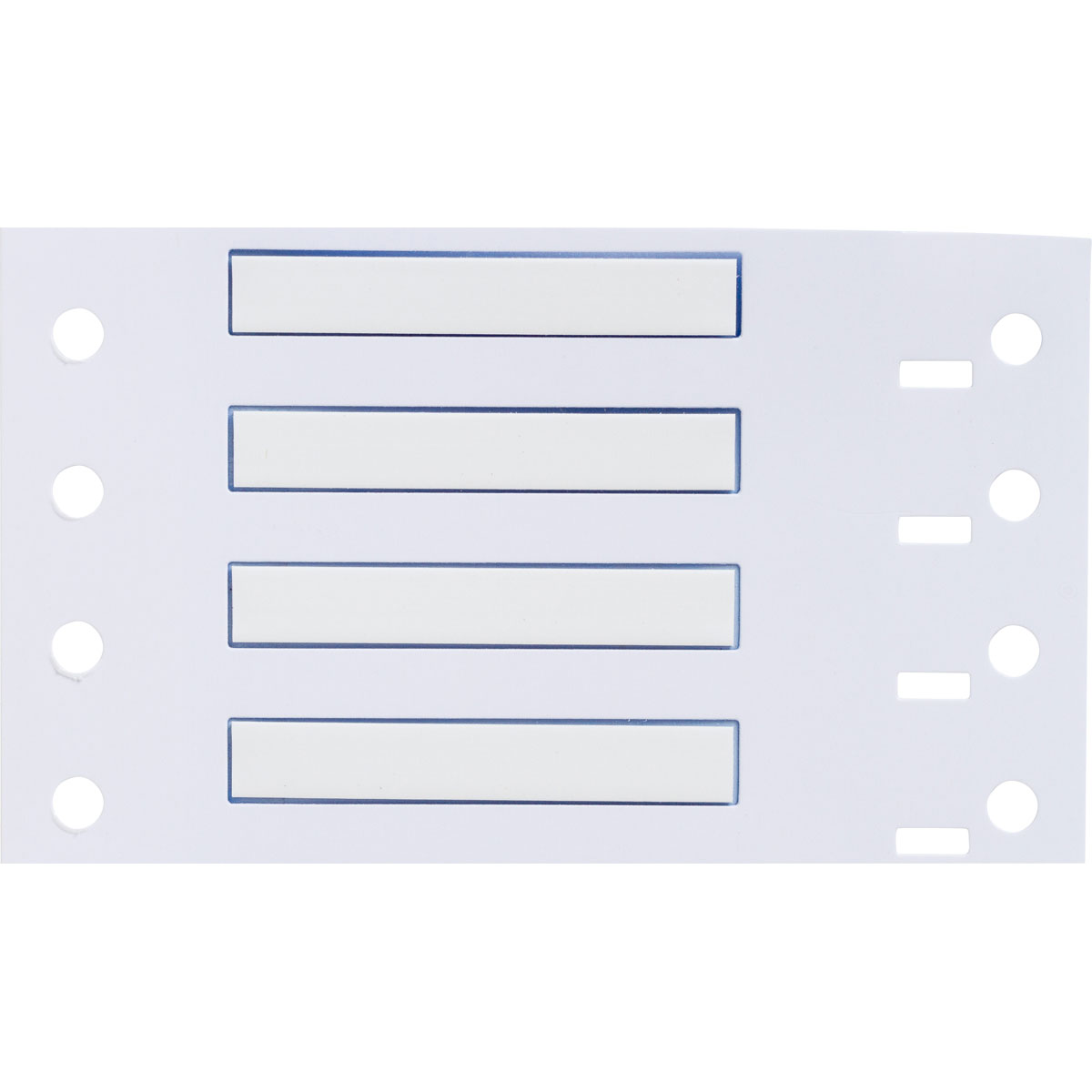

Product image for Sleeve wire marker white 1.5x0.235" 2500pk
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
To:
CC:

Sleeve wire marker white 1.5x0.235" 2500pk

Manufacturer: Brady | Catalog # PS-125-150-WT | Electrozad South Part # 77675
*Call For Price*
Log in or register to view your price, purchase history, and more!
Usually ships within 12 to 18 days
Specification Sheet
Brady's PermaSleeve® heat shrinkable sleeves fit snugly around wires for maximum insulation protection and permanent identification. The full-circle insulating sleeves meet the rigid insulating material requirements and physical properties of MIL-DTL-23053/5 Class 1, MIL-M-81531, MIL-STD-202F, METHOD 215, and UL224 when printed with R5000 dot matrix and R4300 and R4502S (for black sleeves only) thermal transfer ribbons. These fade resistant, smudge-proof sleeves can be used on with Brady's Sleeve & Datab™ Printers, as well as Thermal Transfer printers.

Technical Information

Applications
For Cable and Wire Marking
Cable Size
22-16 AWG
Material
B-342 Polyolefin
Max Temperature
135 degrees C
Min Temperature
-55 degrees C
Shrink Ratio
3:1
Temperature Rating
-94 to 267 degrees F
Type
Chemical, Corrosion, Humidity, Smear, UV, Weather-Resistant, Self-Extinguishing, Single-Side Printable
Wire Size
0.046-0.11 in

Manufacturer Information

Brand
Brady
Sub Brand
PermaSleeve®

General Product Info

12-Digit UPC
662820326137
Color
Matte White
Finish
Matte
GTIN
00662820326137
Used With
Brady IP® Series Thermal Transfer Label Printer, Bradyprinter™ PR Plus Series Thermal Transfer Label Printer, R2000, R4300, R4502S, R5000, R6600, R6700 Series Ribbon

Dimensions

Diameter
0.125 in
Height
0.235 in
Length
0.235 in
Roll Width
1.5 in
Width
1-1/2 in
